Description

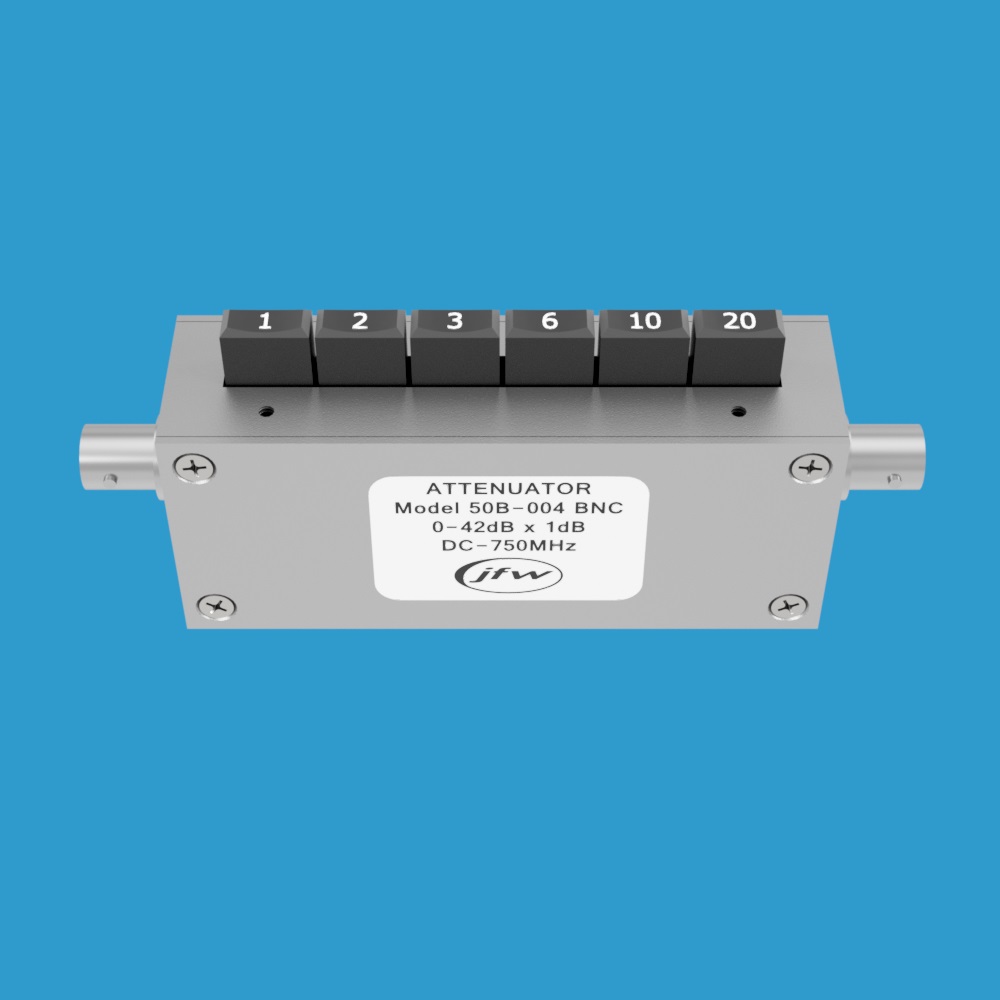

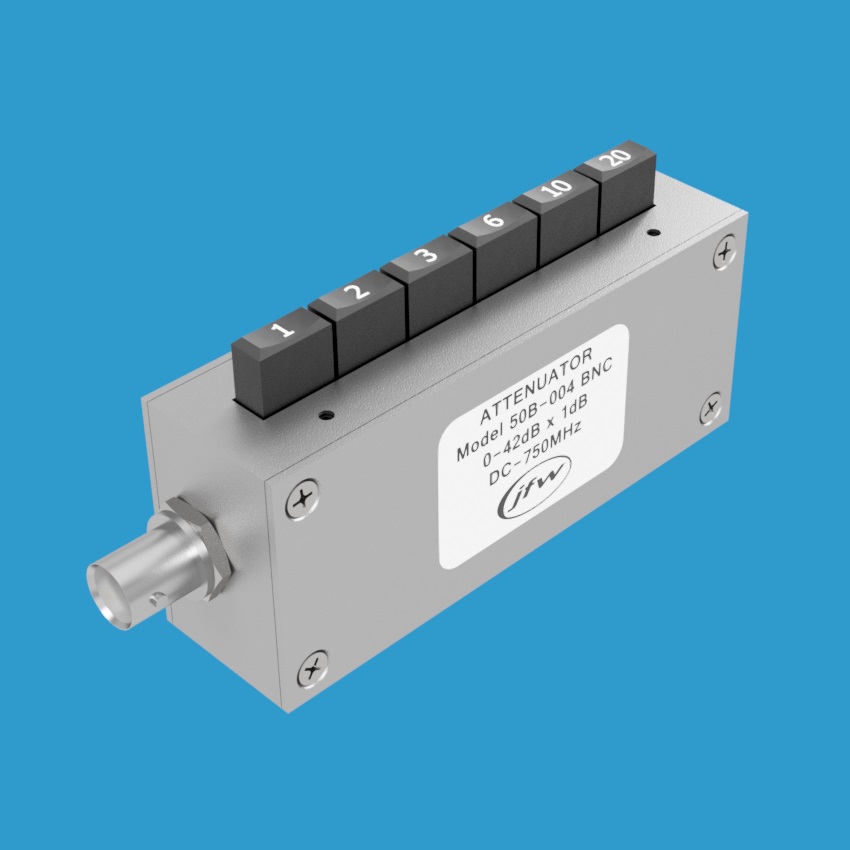

Model 50B-004 is a 50 Ohm pushbutton attenuator with attenuation range 0 to 42dB by 1dB steps. It operates DC-750 MHz and is rated for 1 Watt average of RF input power. Each pushbutton controls an attenuation step. This model has 6 pushbuttons total: 1dB, 2dB, 3dB, 6dB, 10dB, and 20dB. Engage multiple pushbuttons simultaneously to achieve combinational attenuation values. This manual attenuator is available with 50 Ohm coaxial RF connectors: BNC, SMA or TNC female. The attenuator has four mounting holes to allow for panel mounting.
