Description

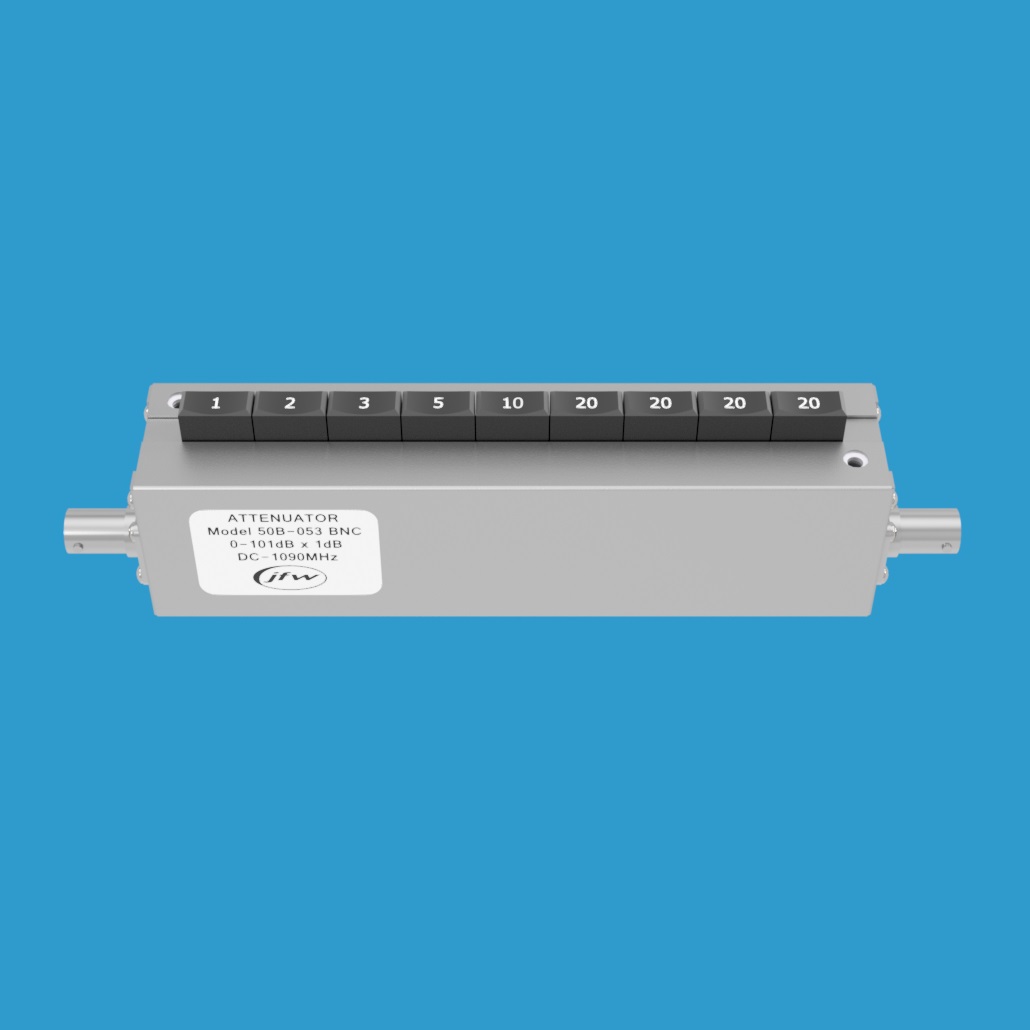

Model 50B-053 is a 5 Watt average pushbutton attenuator with attenuation range 0 to 101dB by 1dB steps. It operates DC-1000MHz. Each pushbutton controls an attenuation step. This model has 9 pushbuttons total: 1dB, 2dB, 3dB, 5dB, 10dB, 20dB, 20dB, 20dB and 20dB. Engage multiple pushbuttons simultaneously to achieve combinational attenuation values. This manual attenuator is available with 50 Ohm coaxial RF connectors: BNC, N, SMA or TNC female. The attenuator has two mounting holes to allow for panel mounting.
