Description

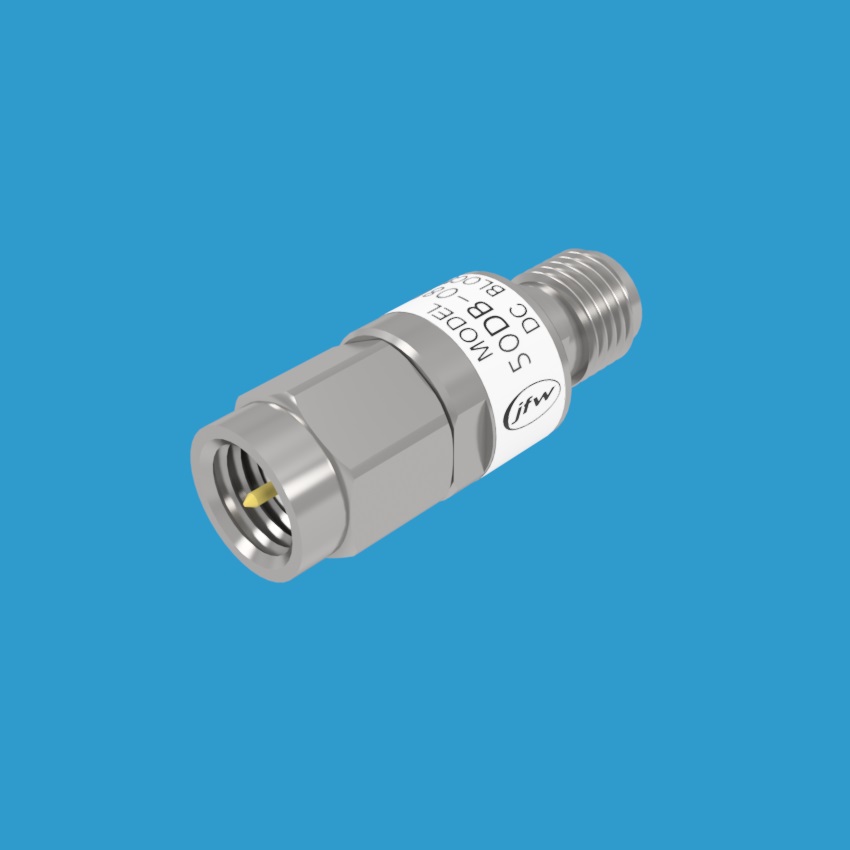

Model 50DB-081 is a 50 Ohm DC block with SMA male/female connectors. It is an inner only type DC block. It operates 10MHz to 18GHz and is rated for up to 200 Vdc.
50DB-081 SMA | DC Block 10MHz-18GHz
JFW Model #: 50DB-081
Description: DC Block
Type: Inner only
Impedance: 50 Ohm
Frequency Start: 10 MHz
Frequency Stop: 18 GHz
Breakdown Voltage: 200 Volts
RF Connectors: SMA
Documentation: Data Sheet | Drawing
