Description

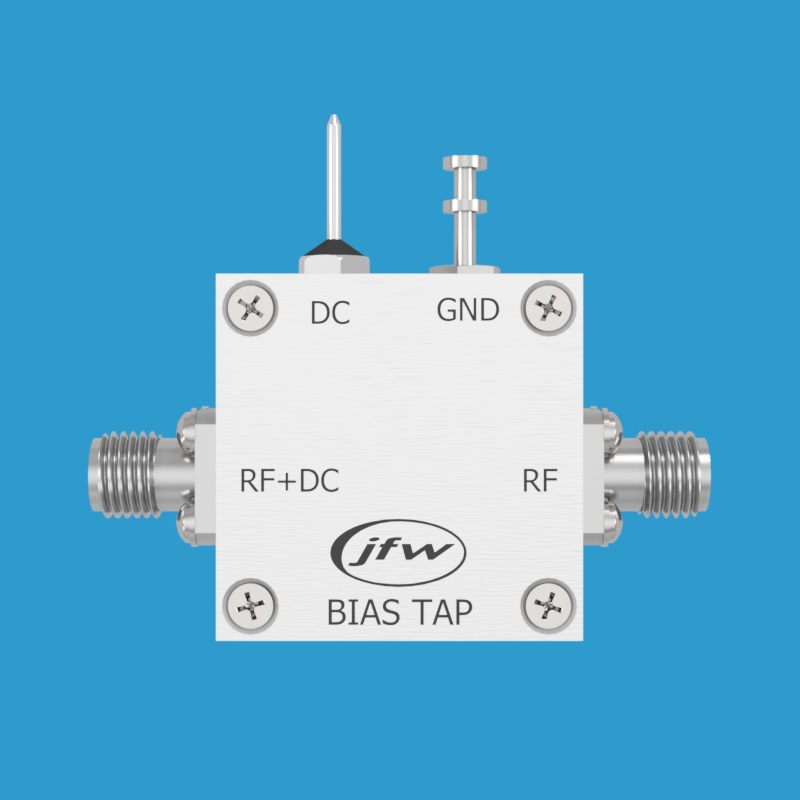

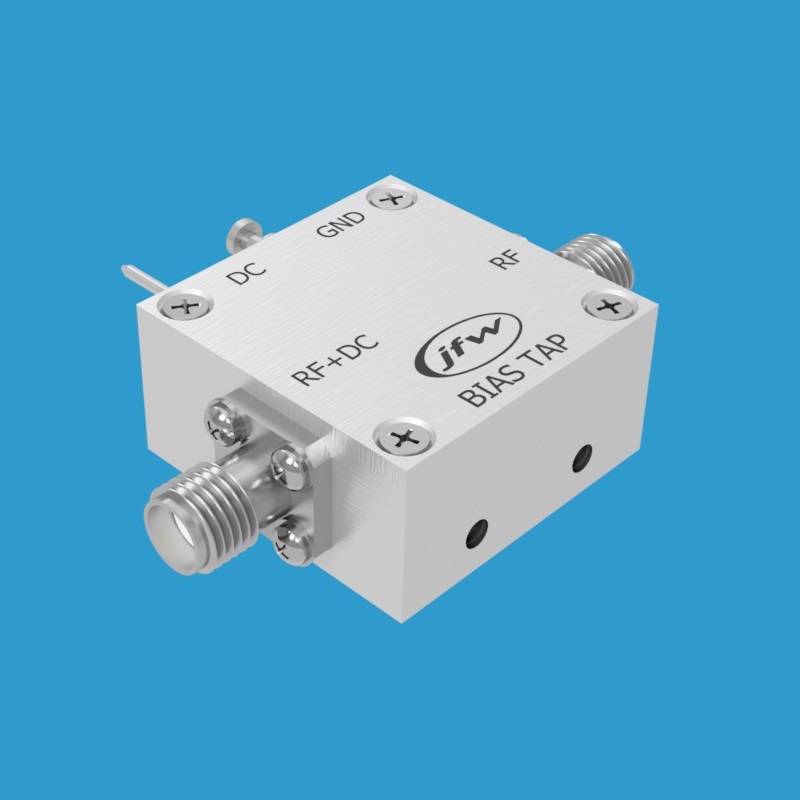

Model 50BT-085 is a 50 Ohm bias tap. It can be used to inject or remove DC from a RF transmission line. The RF path is rated 2-6000MHz. The DC path is rated for up to 1 Amp of current and 50 Volts breakdown Voltage. The DC port uses a solder terminal type connector. The two RF ports are SMA female.
