Description

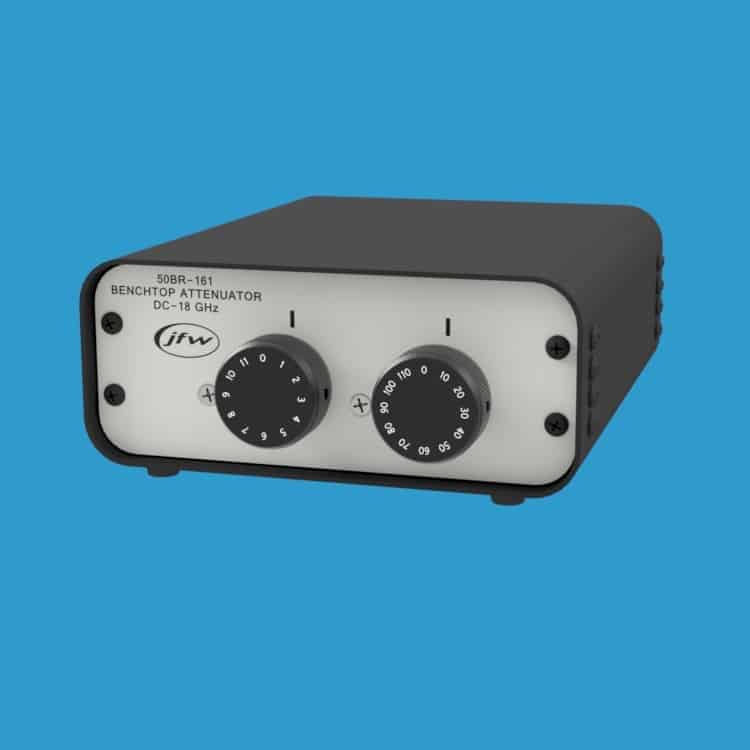

Model 50BR-161 is a benchtop 50 Ohm manual attenuator. It has attenuation range 0 to 121dB in 1dB steps. It operates DC-18 GHz and is rated for 1 Watt average RF power. It is available with N female or SMA female connectors.
50 Ohm Benchtop Attenuator DC-18GHz 0-121dB x 1dB | 50BR-161
JFW Model #: 50BR-161
Type: Manually variable attenuator
Enclosure: Benchtop
Impedance: 50 Ohm
dB Total: 121 dB
dB Step: 1 dB
Frequency Range: DC-18 GHz
RF Input Power: 1 Watt
RF Connectors: N or SMA female
Documentation: Data Sheet | Drawing
