JFW Model #: 50PD-868
Impedance: 50 Ohm
Configuration: 4-Way power divider/combiner
Frequency Range: 6-40 GHz
RF Input Power: 10 Watts (divider port), 0.25 Watts (combiner port)
RF Connectors: 2.9mm female
Documentation: Data Sheet | Drawing

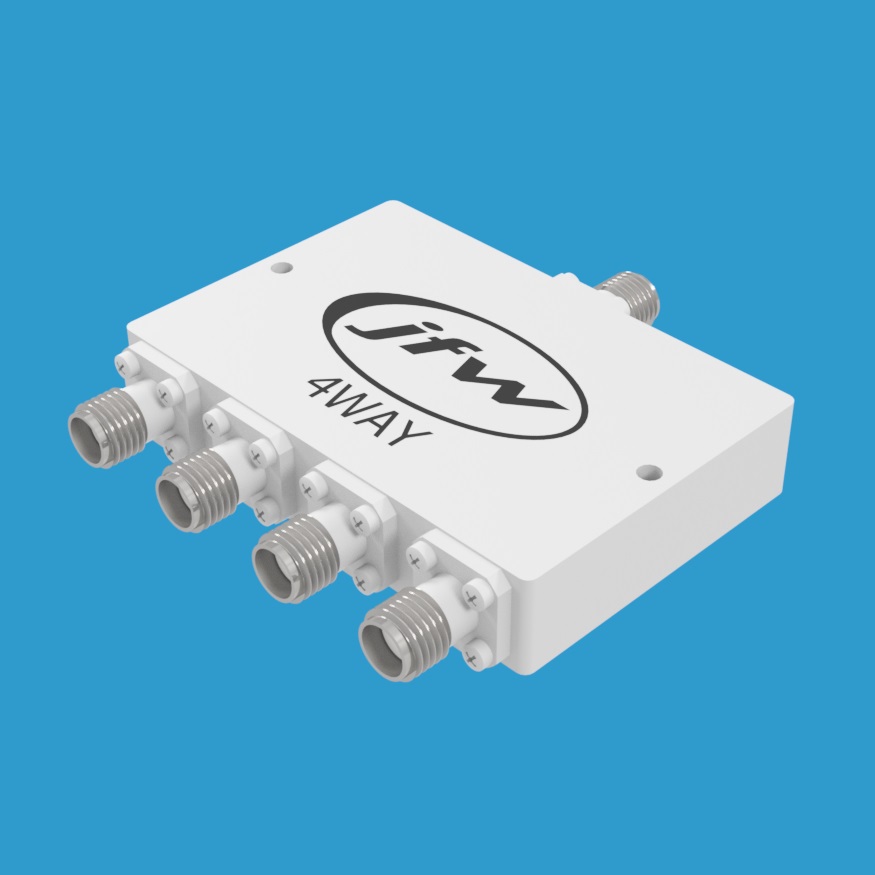

Model 50PD-868 2.9MM is a 50 Ohm reactive 4-Way power divider/combiner that operates 6-40 GHz. Its low loss reactive design is ideal for fan-in or fan-out of RF signals. It is only available with 2.92mm female coaxial RF connectors. It has one divider port and four combiner ports.
| Weight | 0.56 lbs |
|---|---|
| Connector Type |
