Description

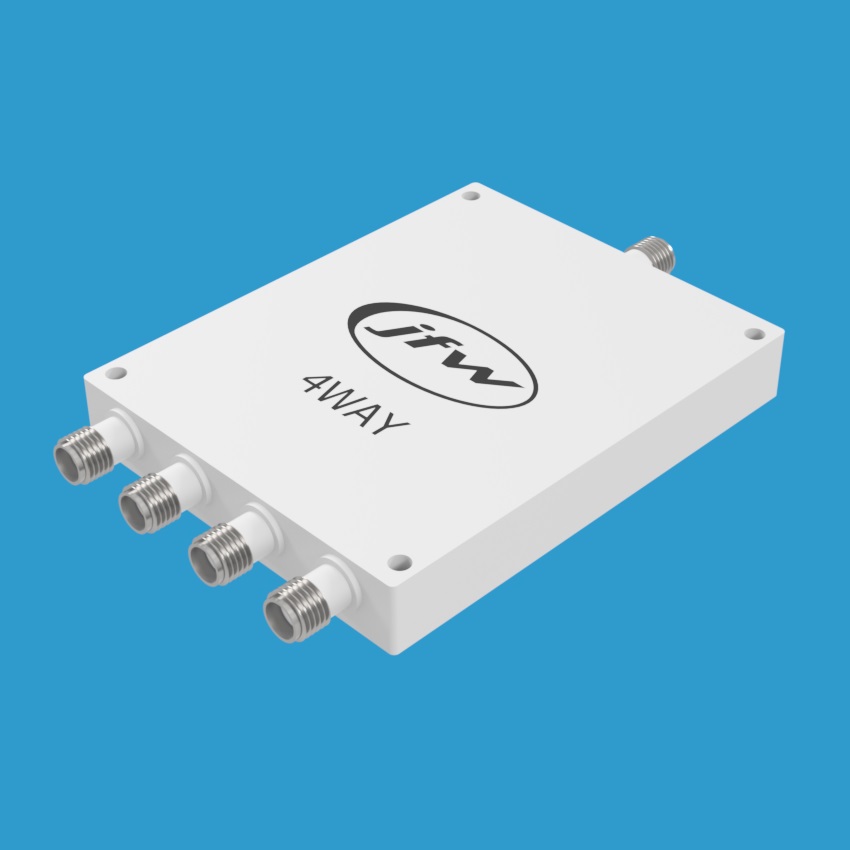

Model 50PD-883 SMA is a 50 Ohm reactive 4-Way power divider/combiner that operates 1000-8000 MHz. It uses a reactive Wilkinson splitter design which is ideal when the application is to fan-in or fan-out RF signals with minimum loss. It is available with SMA female connectors. It has one divider port and four combiner ports. Any signal from divider port to combiner port will have insertion loss (i.e. 3 dB nominal loss). Any RF signal from combiner port to combiner port will have isolation (i.e. 20 dB nominal loss).
