Description

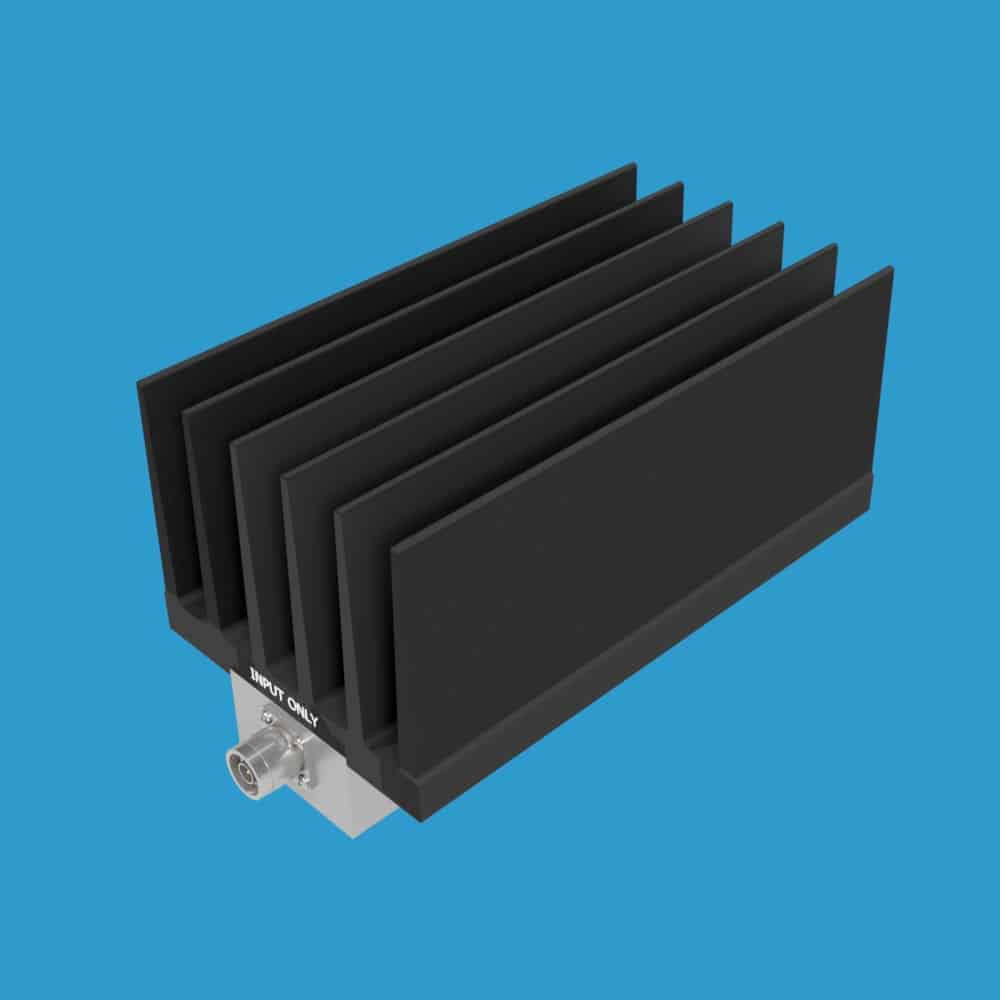

This model is a 50 Ohm coaxial fixed attenuator rated at 300 Watts maximum and operates DC-3000 MHz. Available with dB values from 6dB to 40dB. The heatsink has mounting holes on the bottom plate. This attenuator can be mounted in any position except with mounting plate up.
For model 50FHDQ-XXX-300-3, replace the XXX with the desired attenuation value and add the RF connector type at the end to create the full model number.
Example Model Numbers:
50FHDQ-006-300-3 N (6dB with N male/female)
50FHDQ-010-300-3 N (10dB with N male/female)
50FHDQ-020-300-3 N (20dB with N male/female)
50FHDQ-025-300-3 N (25dB with N male/female)
50FHDQ-030-300-3 N (30dB with N male/female)
50FHDQ-040-300-3 N (40dB with N male/female)
50FHDQ-006-300-3 TNC (6dB with TNC male/female)
50FHDQ-010-300-3 TNC (10dB with TNC male/female)
50FHDQ-020-300-3 TNC (20dB with TNC male/female)
50FHDQ-025-300-3 TNC (25dB with TNC male/female)
50FHDQ-030-300-3 TNC (30dB with TNC male/female)
50FHDQ-040-300-3 TNC (40dB with TNC male/female)
Non-standard and mixed RF connector configurations are available upon request:
50FHDQ-003-500-3 N F/F (N female/female)
50FHDQ-010-500-3 N M/TNC F (N male/TNC female)
