JFW Model #: 50T-554
Impedance: 50 Ohm
Frequency Range: DC-6 GHz
RF Input Power: 30 Watts
Heatsink Style: Square
RF Connectors: N, SMA, 7/16 or 4.3-10
Documentation: Data Sheet | Drawing

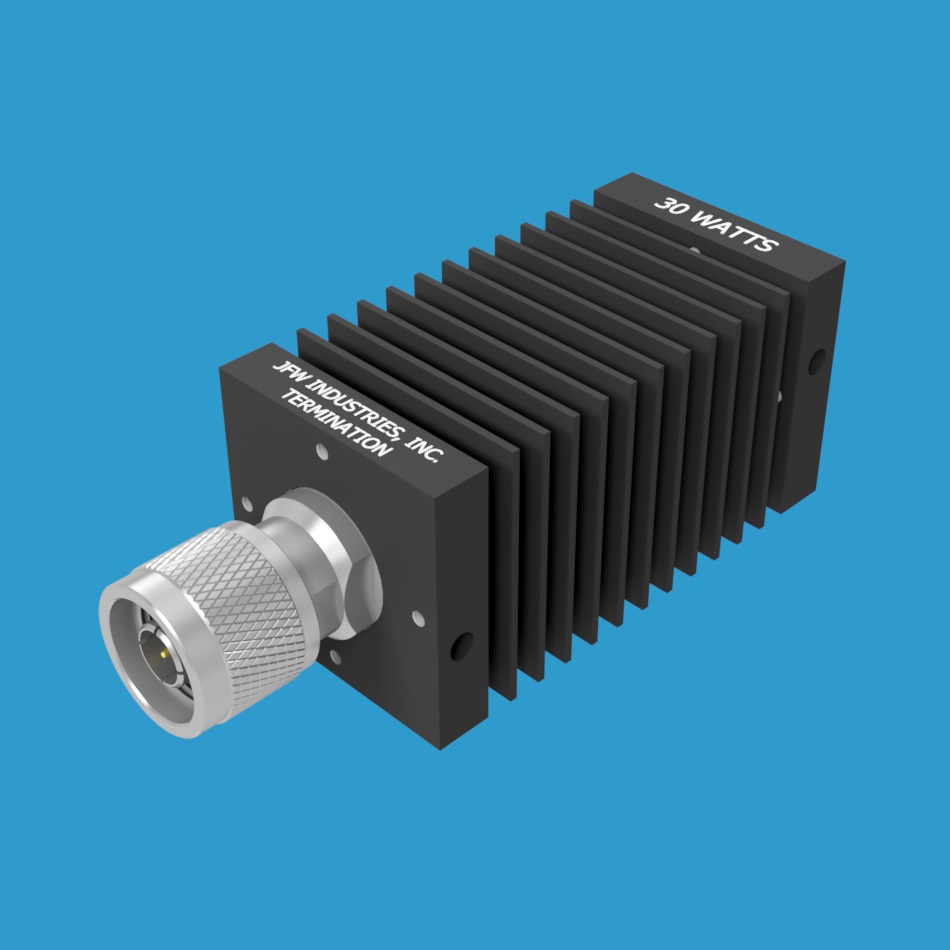

Model 50T-743 is a 50 Ohm termination (aka dummy load) rated at 30 Watts average. The heatsink is square with mounting holes on the bottom side and both ends. The unit operates DC-6 GHz and is available with male or female connectors: N, SMA, 7/16 or 4.3-10.
| Weight | 0.18 lbs |
|---|---|
| Connector Type | 4.3/10 Female, 4.3/10 Male, 7/16 Female, 7/16 Male, N Female, N Male, SMA Female, SMA Male |
