JFW Model #: 50PD-859
Impedance: 50 Ohm
Configuration: 2-Way power divider/combiner
Frequency Range: 1-26.5 GHz
RF Input Power: 10 Watts (divider port), 0.25 Watts (combiner port)
RF Connectors: SMA female
Documentation: Data Sheet | Drawing

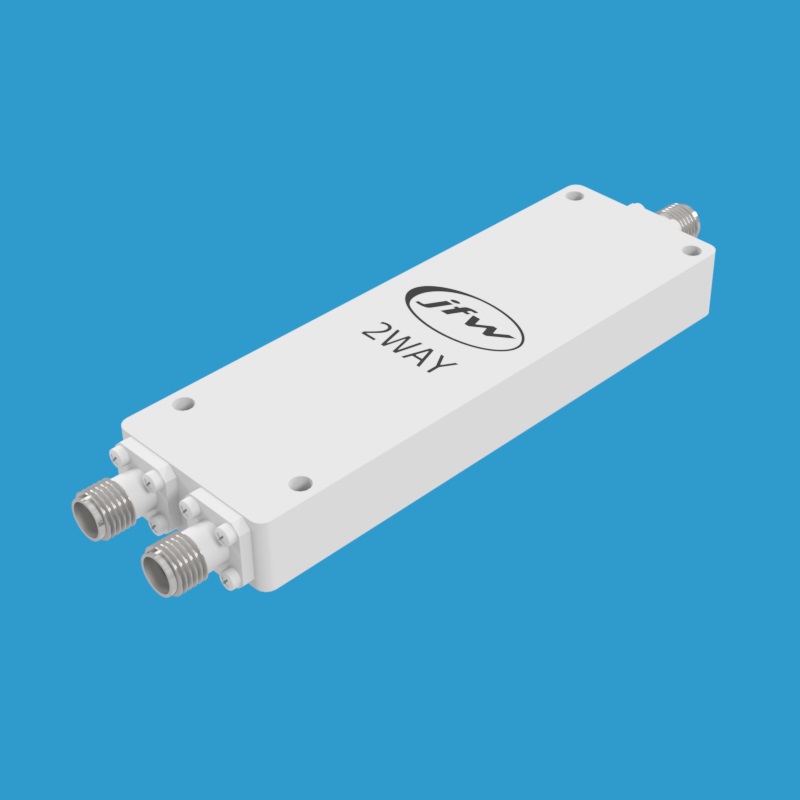

Model 50PD-859 SMA is a 50 Ohm reactive 2-Way power divider/combiner that operates 1-26.5 GHz. Its low loss reactive design is ideal for fan-in or fan-out of RF signals. It is only available with SMA female coaxial RF connectors. It has one divider port and two combiner ports.
| Weight | 0.56 lbs |
|---|---|
| Connector Type |
