Description

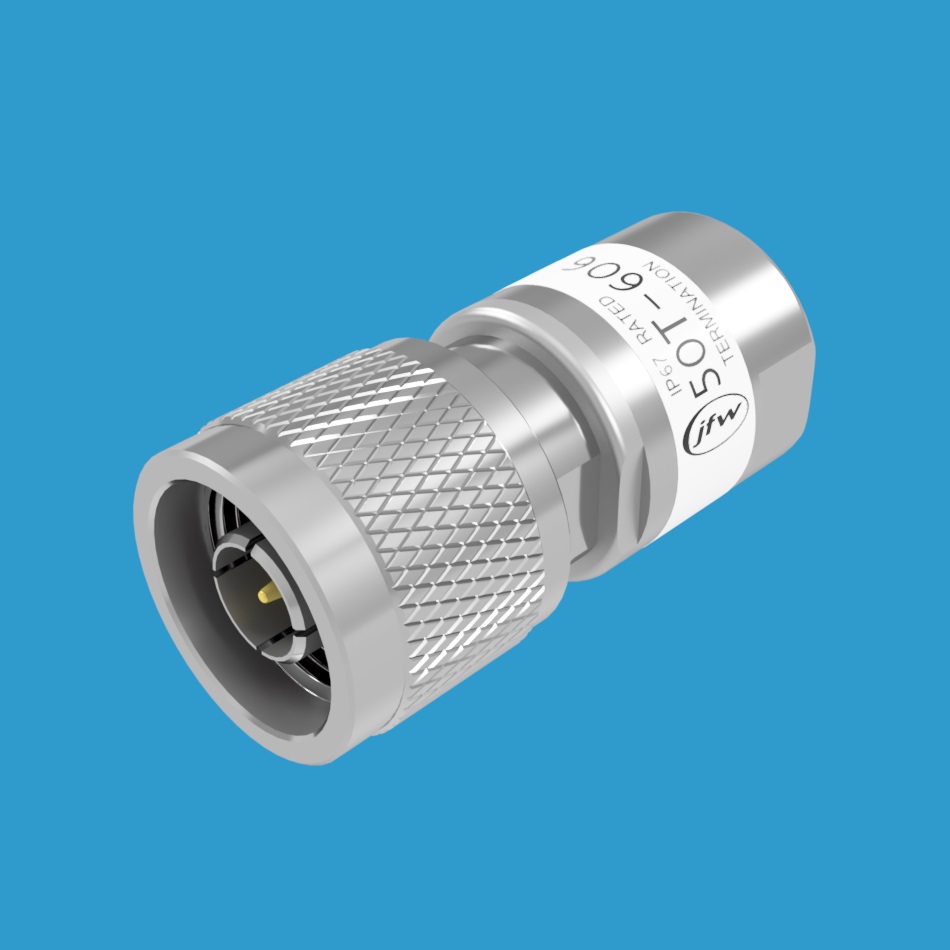

Model 50T-606 is a 50 Ohm termination that is IP67 rated. It operates DC-6 GHz and is rated for 2 Watts RF input power. It is available with a 50 Ohm SMA, TNC or N type RF connector (male or female).
JFW Model #: 50T-606
Environmental: IP67 rated
Impedance: 50 Ohm
Frequency Range: DC-6000 MHz
RF Input Power: 2 Watts
RF Connectors: SMA, TNC, or N (male or female)
Documentation: Data Sheet | Drawing
Model 50T-606 is a 50 Ohm termination that is IP67 rated. It operates DC-6 GHz and is rated for 2 Watts RF input power. It is available with a 50 Ohm SMA, TNC or N type RF connector (male or female).
Weight | 0.02 lbs |
---|---|
Connector Type | N Female, N Male, SMA Female, SMA Male, TNC Female, TNC Male |
