JFW Model #: 50T-706
Description: Termination (optional bead chain)
Impedance: 50 Ohm
Frequency Range: DC-18 GHz
RF Input Power: 2 Watt
RF Connectors: TNC male or female
Documentation:
Data Sheet
Drawing (TNC male)
Drawing (TNC female)
Drawing (TNC male with bead chain)

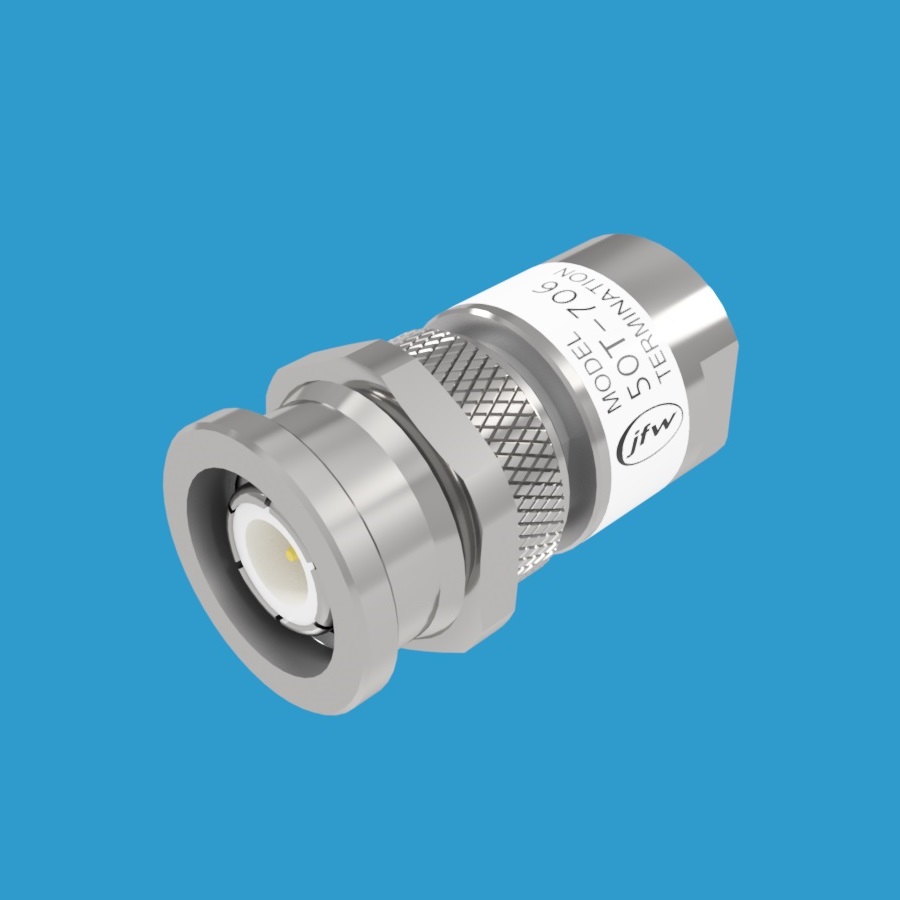

Model 50T-706 is a 50 Ohm termination with TNC male or TNC female. It operates DC-18 GHz and is rated for 2 Watt average input power. This model is also available with a bead chain for mounting.
Available Models:
50T-706 TNC M (TNC male)
50T-706 TNC F (TNC female)
50T-706-BC TNC M (TNC male with bead chain)
| Weight | 0.02 lbs |
|---|---|
| Connector Type |
