JFW Model #: 75T-059-XXX
Impedance: 75 Ohm
Frequency Range: DC-3000 MHz
RF Input Power: 2 Watts
RF Connectors: BNC or N (male or female)
Documentation: Data Sheet | Drawing

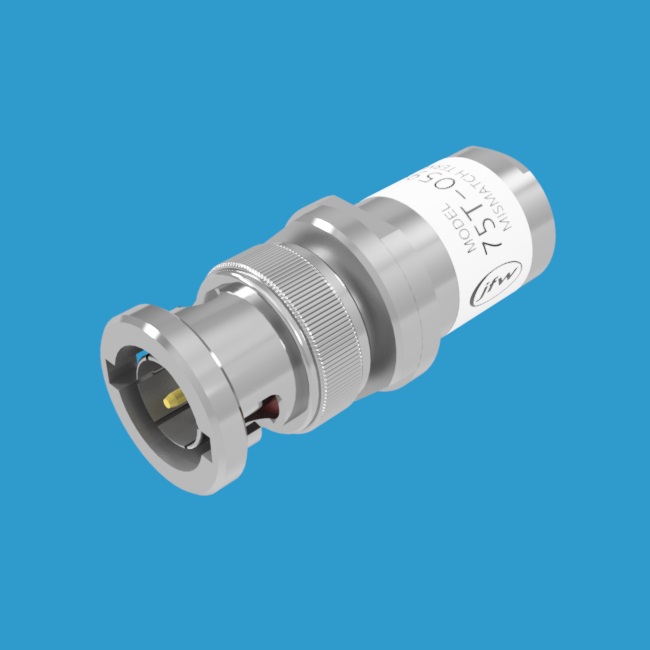

Model 75T-059-XXX is a 75 Ohm mismatch load. The available mismatch values are 1.2:1 thru 2.0:1 (referenced to 75 Ohms). It operates DC-1225 MHz and is rated for 2 Watts RF input power. It is available with a 75 Ohm BNC or N type RF connector.
| Connector Type | |
|---|---|
| VSWR | Mismatch 1.2:1, Mismatch 1.3:1, Mismatch 1.4:1, Mismatch 1.5:1, Mismatch 1.6:1, Mismatch 1.7:1, Mismatch 1.8:1, Mismatch 1.9:1, Mismatch 2.0:1 |
75 Ohm Bias Tap 1 Amp 1-3000 MHz | 75BT-032
