Description

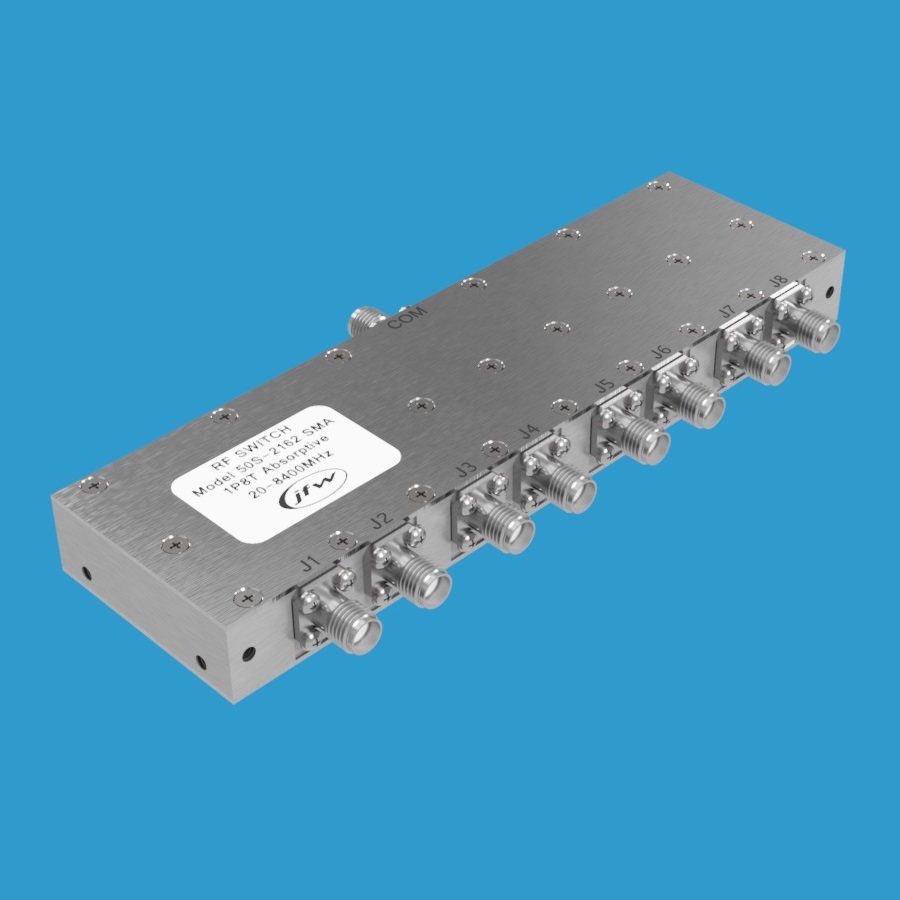

Model 50S-2162 is a USB controlled 50 Ohm solid-state 1P8T RF switch operating 20-8400 MHz. This RF switch is absorptive type (i.e. self-terminating). The unused ports will self-terminate at 50 Ohm impedance. It is available with 50 Ohm SMA female RF connectors.
Shipped with Switch:
- JFW Test Software (on USB thumb drive)
- JFW Test Software Manual (on USB thumb drive)
- USB Cable (USB A male to USB B male)
USB Test software Features:
- Test software manual available for download.
- Auto-discovery of any JFW USB controlled RF switches or attenuators connected to the computer.
- Set persistent device names for better organization of complex test scenarios.
- Create test scripts that can control many attenuators.
- Saving and Loading of scripts in JSON format.
- Microsoft Windows Vista or greater
- Dot Net Framework 4.0 or greater
Python Library Available
If you would prefer to control the USB RF switch using Python instead of our standard Windows based test program, JFW does offer a Python library (jfwusb.py). Email our engineering department for the Python library and examples.
Python Library Features:
- Auto-discovery of any JFW USB devices connected to the computer.
- Set persistent device names for each RF switch.
- Set/read RF switch by its device number.
- Set/read RF switch by its serial number.
- Set/read RF switch by its user defined name.
