Description

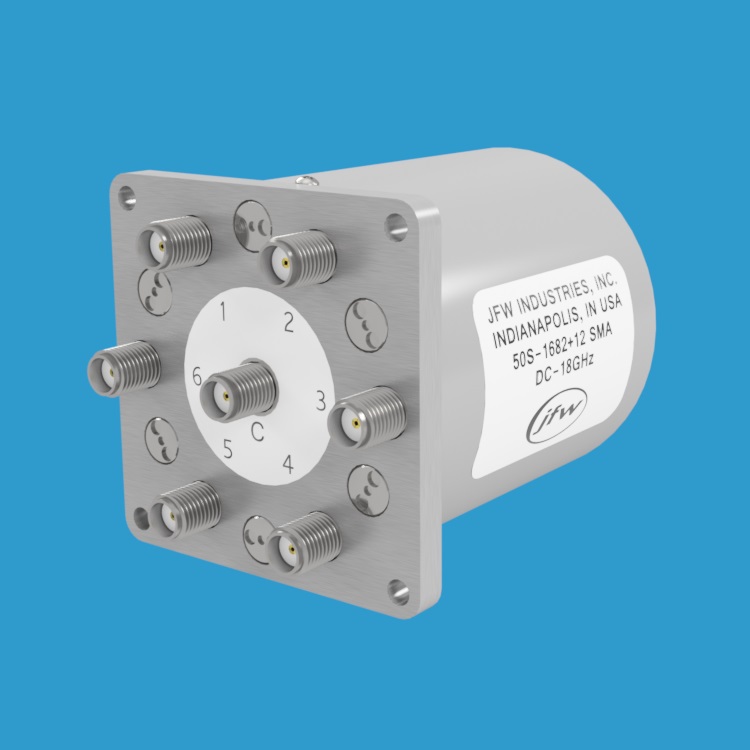

Model 50S-1682+XX SMA is a 50 Ohm latching electro-mechanical 1P6T RF switch that operates DC-18GHz. If no supply voltage is applied, the unit will stay mechanically latched at its last setting. This RF switch is absorptive type (i.e. self-terminating). The unused ports will self-terminate at 50 Ohm using internal 2-Watt termination. It is available with SMA female connectors.
Example Model Numbers:
50S-1682+12 SMA
50S-1682+15 SMA
50S-1682+24 SMA
50S-1682+28 SMA
