Description

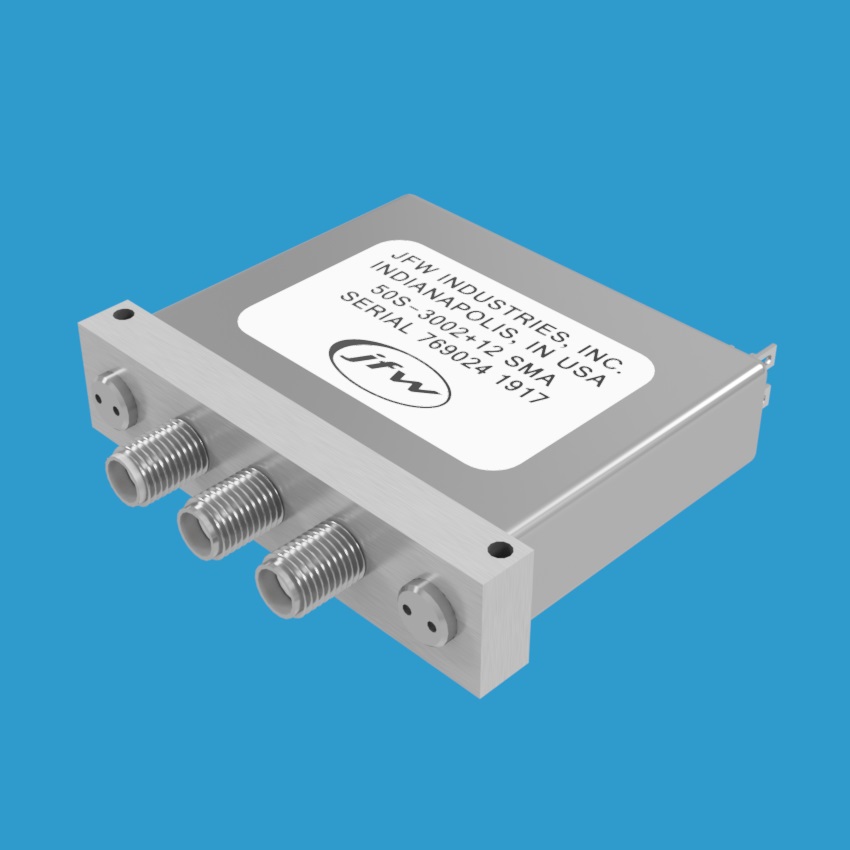

50S-3002+XX SMA is a 50 Ohm electro-mechanical 1P2T RF switch operating DC-26.5 GHz. This model is failsafe and absorptive (i.e. self-terminating). The unused port will self-terminate at 50 Ohm impedance. The failsafe path is COM to NC. This 1P2T has three RF ports: COM (common port), NC (normally closed port), NO (normally open port). This 1P2T RF switch has one control line. The control line is activated with +XX Vdc signal levels (i.e. +12Vdc, +24Vdc, +28Vdc).
