Description

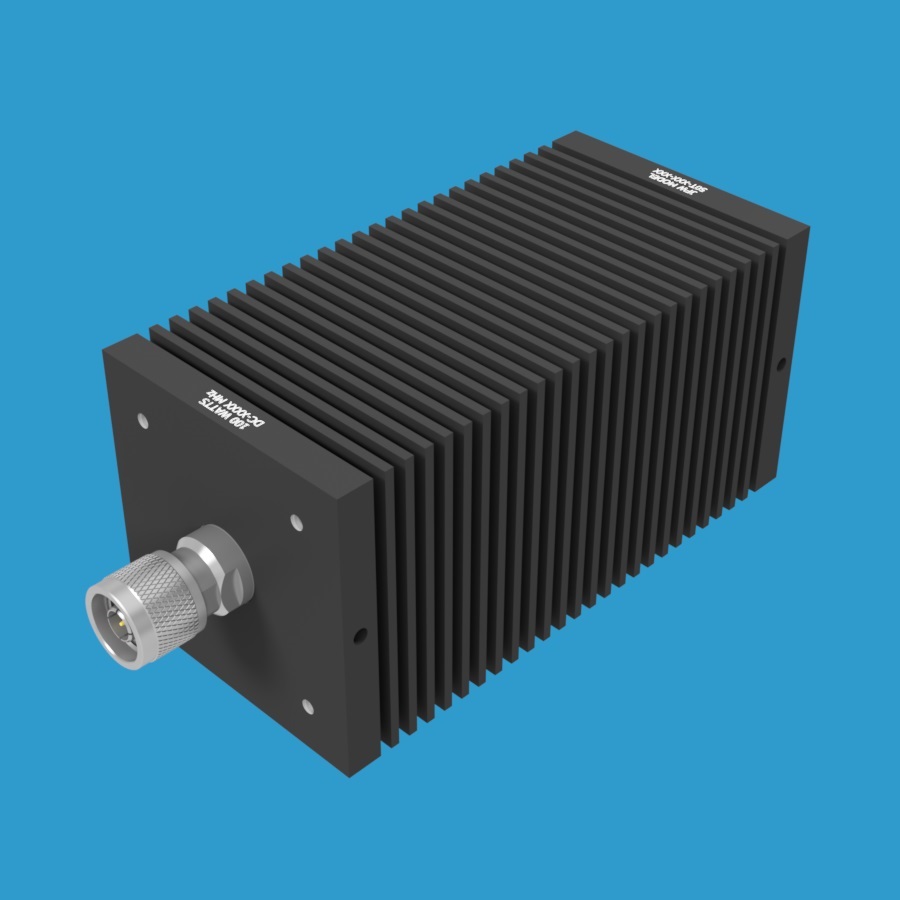

Model 50T-678 is a 50 Ohm termination. It operates DC-6 GHz and is rated for 100 Watts average RF input power. It is available with N, SMA, 7/16 or 4.3-10 as the RF connector.
JFW Model #: 50T-678
Impedance: 50 Ohm
Frequency Range: DC-6 GHz
RF Input Power: 100 Watts
Heatsink Style: Square
RF Connectors: N, 7/16, 4.3-10 male or female
Documentation: Data Sheet | Drawing
Model 50T-678 is a 50 Ohm termination. It operates DC-6 GHz and is rated for 100 Watts average RF input power. It is available with N, SMA, 7/16 or 4.3-10 as the RF connector.
Connector Type | 4.3/10 Female, 4.3/10 Male, 7/16 Female, 7/16 Male, N Female, N Male |
---|
