JFW Model #: 50T-700
Description: Termination
Impedance: 50 Ohm
Frequency Range: DC-18 GHz
RF Input Power: 1 Watt
RF Connectors: SMA male
Documentation:
Data Sheet
Drawing (SMA male)
Drawing (SMA male with bead chain)

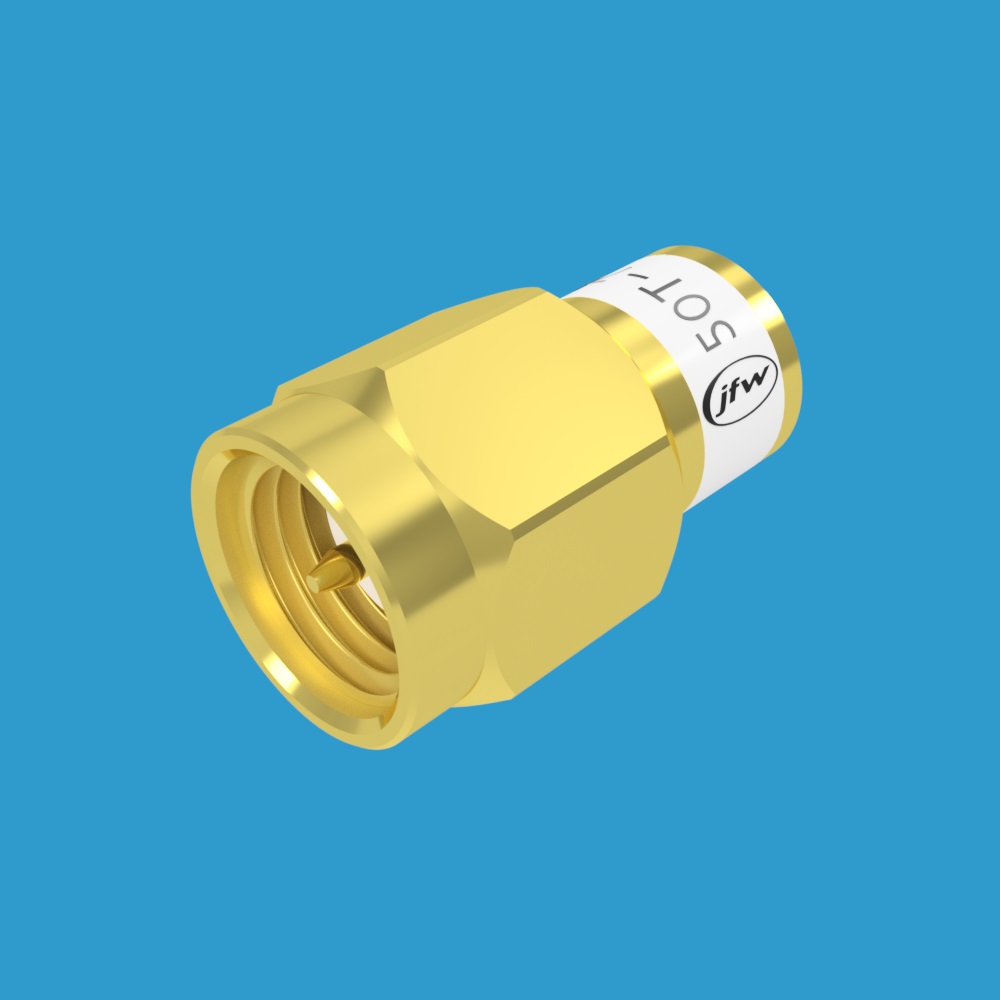

Model 50T-700 is a 50 Ohm termination with SMA male. It operates DC-18 GHz and is rated for 1 Watt average input power. This model is also available with a bead chain.
50T-700 SMA M (SMA male)
50T-700-BC SMA M (SMA male with bead chain)
| Weight | 0.02 lbs |
|---|---|
