JFW Model #: 016-552-XX
Description: 4 pin friction lock cable (female/female)
Mating Connector: Molex #22-11-2042 (2.54mm straight male) or Molex #22-12-2044 (2.54mm right angle male)

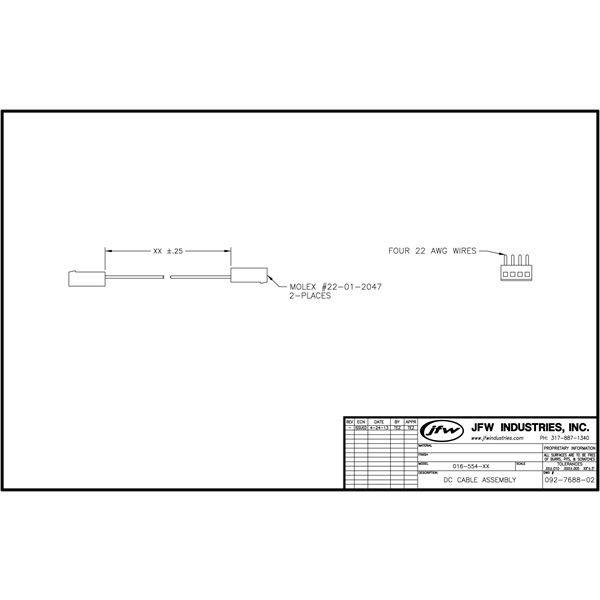

Documentation: Drawing
Please insert desired cable length in REMARKS field of quote form.
016-554-XX is a 4 pin female/female cable assembly. Many of JFW’s programmable attenuators use a 4 pin male connector (2.54mm Pitch, Friction lock). This female/ female cable assembly can be used to connect the programmable attenuator to an interface PCB.
