Description
016-551-XX is a 9 pin D-sub female/female ribbon cable assembly. Many of JFW’s RF switches use a male 9 pin D-sub (DE-9P). This female/female cable assembly can be used to connect the RF switches to an interface PCB.
JFW Model #: 016-551-XX
Description: 9 pin D-sub DE-9S (female/female)
Mating Connector: DE-9P (9 pin male D-subminiature)

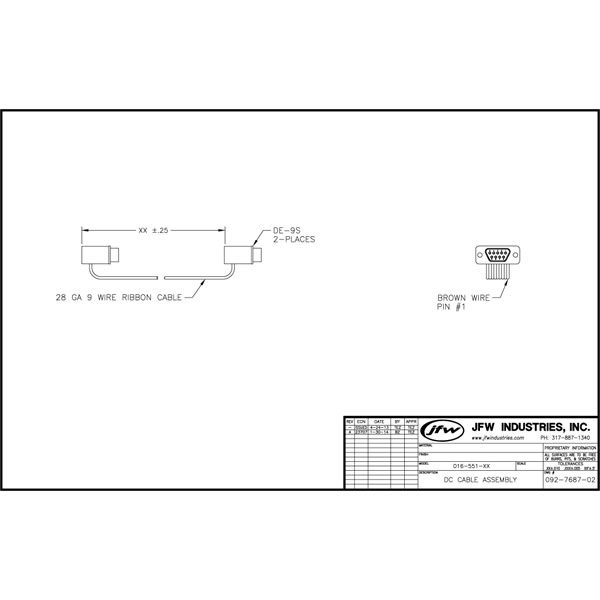

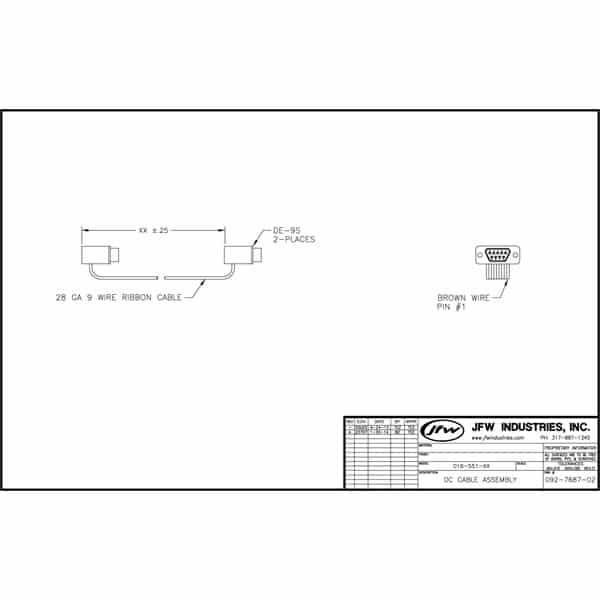

Documentation: Drawing
Please insert desired cable length in REMARKS field of quote form.
016-551-XX is a 9 pin D-sub female/female ribbon cable assembly. Many of JFW’s RF switches use a male 9 pin D-sub (DE-9P). This female/female cable assembly can be used to connect the RF switches to an interface PCB.
