JFW Model #: 016-168-XX
Description: 10 pin ribbon cable (female/female)
Mating Connector: 3M #D2510-6002-AR (10 pin male straight) or 3M #3793-5303 (10 pin male right angle)

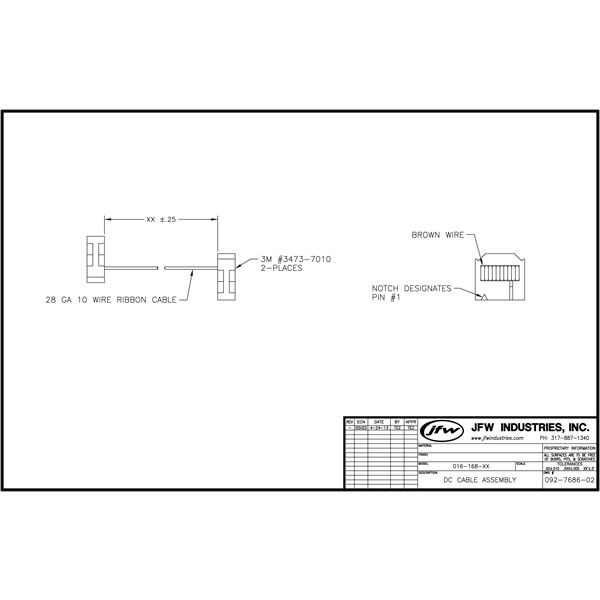

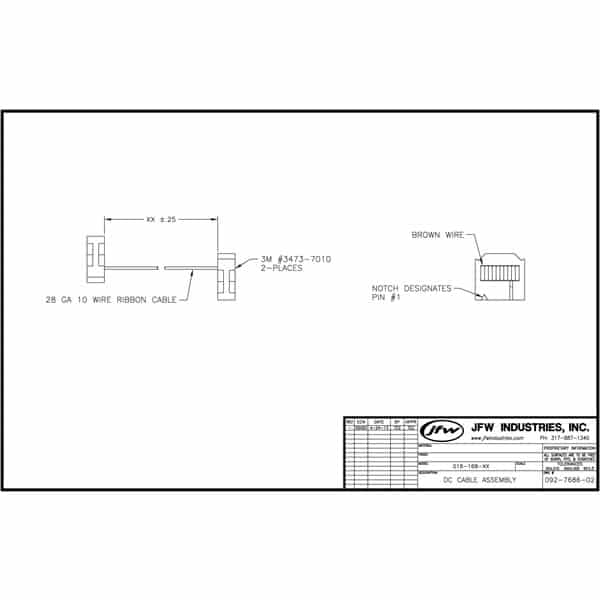

Documentation: Drawing
Please insert desired cable length in REMARKS field of quote form.
016-168-XX is a 10 pin female/female ribbon cable assembly. Many of JFW’s programmable attenuators use a 0.1″ x 0.1″ male 10 pin connector. This female/pigtail cable assembly can be used to connect the programmable attenuator to a microcontroller or interface PCB.
