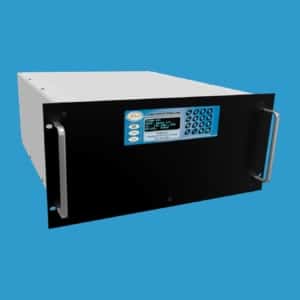

8 Port Transceiver Test System 2-8 GHz | 50PMA-151
JFW Model #: 50PMA-151
Impedance: 50 Ohms
Configuration: 8 Ports with full mesh fan-out
dB Total: 63 dB
dB Step: 1 dB
Frequency Start: 2 GHz
Frequency Stop: 8 GHz
Manual Control: Display and Keypad
Remote Control: Ethernet, RS-232
Enclosure Type: 19 inch rack mount
RF Connectors: N, SMA
Documentation: Data Sheet | Diagram | Drawing -

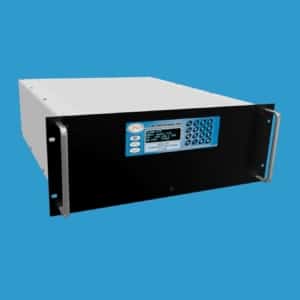

8 Port Transceiver Test System 200-2500 MHz | 50PMA-030
JFW Model #: 50PMA-030
Impedance: 50 Ohms
Configuration: 8 ports with full mesh fan-out
dB Total: 127 dB
dB Step: 1 dB
Frequency Start: 200 MHz
Frequency Stop: 2500 MHz
Manual Control: Display and Keypad
Remote Control: Ethernet, RS-232
Enclosure Type: 19 inch rack mount
RF Connectors: SMA
Documentation: Data Sheet | Diagram | Drawing -

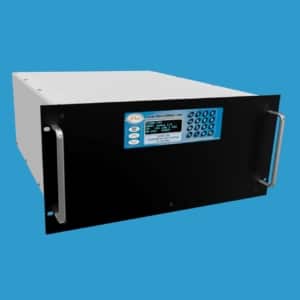

8 Port Transceiver Test System 30-3000 MHz | 50PMA-044
JFW Model #: 50PMA-044
Impedance: 50 Ohms
Configuration: 8 Ports with full mesh fan-out
dB Total: 95 dB
dB Step: 1 dB
Frequency Start: 30 MHz
Frequency Stop: 3000 MHz
Manual Control: Display and Keypad
Remote Control: Ethernet, RS-232
Enclosure Type: 19 inch rack mount
RF Connectors: N, SMA, TNC
Documentation: Data Sheet | Diagram | Drawing (N) | Drawing (SMA) -

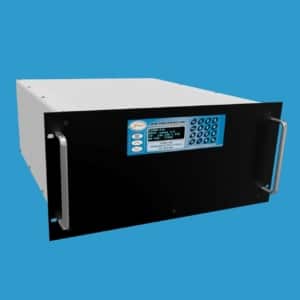

9 Port Transceiver Test System 0.5-6 GHz | 50PMA-081
JFW Model #: 50PMA-081
Impedance: 50 Ohms
Configuration: 9 Ports with full mesh fan-out
dB Total: 95 dB
dB Step: 1 dB
Frequency Start: 500 MHz
Frequency Stop: 6 GHz
Manual Control: Display and Keypad
Remote Control: Ethernet, RS-232
Enclosure Type: 19 inch rack mount
RF Connectors: N, SMA
Documentation: Data Sheet | Diagram | Drawing -

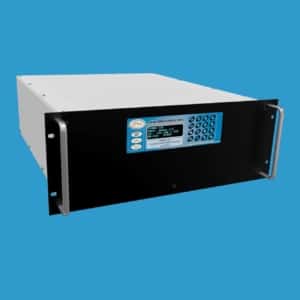

9 Port Transceiver Test System 30-3000 MHz | 50PMA-092
JFW Model #: 50PMA-092
Impedance: 50 Ohms
Configuration: 9 Ports with full mesh fan-out
dB Total: 95 dB
dB Step: 1 dB
Frequency Start: 30 MHz
Frequency Stop: 3000 MHz
Manual Control: Display and Keypad
Remote Control: Ethernet, RS-232
Enclosure Type: 19 inch rack mount
RF Connectors: N, SMA, TNC
Documentation: Data Sheet | Diagram | Drawing
