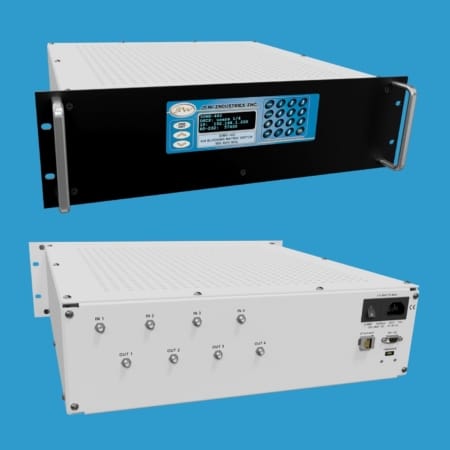

50MS-462 | 4×4 Non-Blocking Matrix Switch
JFW Model #: 50MS-462
Impedance: 50 Ohm
Configuration: 4 x 4 Non-Blocking Matrix Switch
Frequency Range: 500-8400 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +30 dBm
RF Connectors: N or SMA
Documentation: Data Sheet | Drawing | Diagram -
50MS-463 | 8×8 Non-Blocking Matrix Switch
JFW Model #: 50MS-463
Impedance: 50 Ohm
Configuration: 8 x 8 Non-Blocking Matrix Switch
Frequency Range: 500-8400 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +30 dBm
RF Connectors: N or SMA
Documentation: Data Sheet | Drawing | Diagram -
50MS-465 | 4×4 Non-Blocking Matrix Switch
JFW Model #: 50MS-465
Impedance: 50 Ohm
Configuration: 4 x 4 Non-Blocking Matrix Switch
Frequency Range: 1-18 GHz
Switch Type: Solid-state
Unused IN Ports: Absorptive
Unused OUT Ports: Reflective
RF Input Power: +30 dBm
RF Connectors: N or SMA
Documentation: Data Sheet | Drawing | Diagram -
75MS-029 | 2×8 Blocking Matrix Switch
JFW Model #: 75MS-029
Impedance: 75 Ohm
Configuration: 2 x 8 Blocking Matrix Switch
Frequency Range: 3-1000 MHz
Switch Type: Solid-state
Unused Ports: IN Reflective, OUT Absorptive
RF Input Power: +13 dBm
RF Connectors: F, N
Documentation: Data Sheet | Drawing | Diagram -
75MS-030 | 2×6 Blocking Matrix Switch
JFW Model #: 75MS-030
Impedance: 75 Ohm
Configuration: 2 x 6 Blocking Matrix Switch
Frequency Range: 3-1000 MHz
Switch Type: Solid-state
Unused Ports: IN Reflective, OUT Absorptive
RF Input Power: +13 dBm
RF Connectors: F, N
Documentation: Data Sheet | Drawing | Diagram -
75MS-037 | 2×12 Blocking Matrix Switch
JFW Model #: 75MS-037
Impedance: 75 Ohm
Configuration: 2 x 12 Blocking Matrix Switch
Frequency Range: DC-1700 MHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive
RF Input Power: +27 dBm
RF Connectors: N/F, F, N
Documentation: Data Sheet | Drawing | Diagram -
75MS-040 | 4×4 Non-Blocking Matrix Switch
JFW Model #: 75MS-040
Impedance: 75 Ohm
Configuration: 4 x 4 Non-Blocking Matrix Switch
Frequency Range: 5-2150 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +10 dBm
RF Connectors: F Female
Documentation: Data Sheet | Drawing | Diagram -

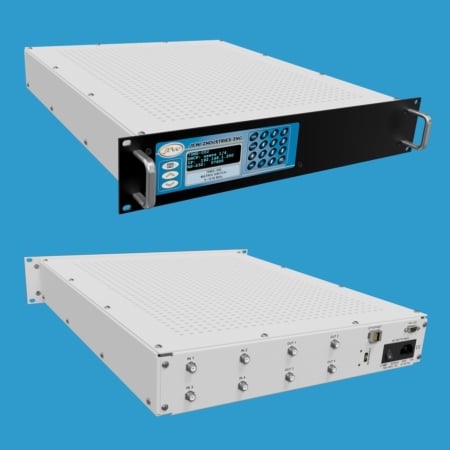

75MS-050 | 4×4 Non-Blocking Matrix Switch
JFW Model #: 75MS-050
Impedance: 75 Ohm
Configuration: 4 x 4 Non-Blocking Matrix Switch
Frequency Range: 5-1218 MHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive
RF Input Power: +20 dBm
RF Connectors: F Female
Documentation: Data Sheet | Drawing | Diagram -
75MS-051 | 4×8 Non-Blocking Matrix Switch
JFW Model #: 75MS-051
Impedance: 75 Ohm
Configuration: 4 x 8 Non-Blocking Matrix Switch
Frequency Range: 5-1218 MHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive
RF Input Power: +20 dBm
RF Connectors: F Female
Documentation: Data Sheet | Drawing | Diagram -
75MS-052 | 8×8 Non-Blocking Matrix Switch
JFW Model #: 75MS-052
Impedance: 75 Ohm
Configuration: 8 x 8 Non-Blocking Matrix Switch
Frequency Range: 5-1218 MHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive
RF Input Power: +20 dBm
RF Connectors: F Female
Documentation: Data Sheet | Drawing | Diagram -
75MS-053 | 8×8 Blocking Matrix Switch
JFW Model #: 75MS-053
Impedance: 75 Ohm
Configuration: 8 x 8 Blocking Matrix Switch
Frequency Range: DC-1218 MHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive
RF Input Power: +20dBm
RF Connectors: F Female
Documentation: Data Sheet | Drawing | Diagram
