50MS-356 | 2×12 Blocking Matrix Switch
JFW Model #: 50MS-356
Impedance: 50 Ohm
Configuration: 2 x 12 Blocking Matrix Switch
Frequency Range: DC-26.5 GHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive
RF Input Power: 0.25 Watts
RF Connectors: SMA
Documentation: Data Sheet | Drawing | Diagram -
50MS-367 | 4×4 Blocking Matrix Switch
JFW Model #: 50MS-367
Impedance: 50 Ohm
Configuration: 4 x 4 Blocking Matrix Switch
Frequency Range: DC-40 GHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive
RF Input Power: 8 Watts
RF Connectors: 2.92 mm
Documentation: Data Sheet | Drawing | Diagram -
50MS-380 | 4×4 Blocking Matrix Switch
JFW Model #: 50MS-380
Impedance: 50 Ohm
Configuration: 4 x 4 Blocking Matrix Switch
Frequency Range: DC-18 GHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive
RF Input Power: 50 Watts (cold switch)
RF Connectors: SMA Female
Documentation: Data Sheet | Drawing | Diagram -
50MS-382 | 6×6 Blocking Matrix Switch
JFW Model #: 50MS-382
Impedance: 50 Ohm
Configuration: 6 x 6 Blocking Matrix Switch
Frequency Range: DC-18 GHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive
RF Input Power: 50 Watts (cold switch)
Remote Control: Ethernet and RS-232
RF Connectors: N or SMA Female
Documentation: Data Sheet | Drawing | Diagram -
50MS-403 | 8×8 Blocking Matrix Switch
JFW Model #: 50MS-403
Impedance: 50 Ohm
Configuration: 8 x 8 Blocking Matrix Switch
Frequency Range: 20-3000 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +20 dBm
Remote Control: Ethernet and RS-232
RF Connectors: N or SMA Female
Documentation: Data Sheet | Drawing | Diagram -
50MS-404 | 8×8 Blocking Matrix Switch
JFW Model #: 50MS-404
Impedance: 50 Ohm
Configuration: 8 x 8 Blocking Matrix Switch
Frequency Range: DC-18 GHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive
RF Input Power: 30 Watts (cold switch)
Remote Control: Ethernet and RS-232
RF Connectors: N or SMA Female
Documentation: Data Sheet | Drawing | Diagram -
50MS-420 | 16×16 Non-Blocking Matrix Switch
JFW Model #: 50MS-420
Impedance: 50 Ohm
Configuration: 16 x 16 Non-Blocking Matrix Switch
Frequency Range: 20-3000 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +30 dBm
RF Connectors: N, SMA
Documentation: Data Sheet | Diagram | Drawing -
50MS-421 | 8×8 Blocking Matrix Switch
JFW Model #: 50MS-421
Impedance: 50 Ohm
Configuration: 8 x 8 Blocking Matrix Switch
Frequency Range: 20-1000 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +20 dBm
Remote Control: Ethernet and RS-232
RF Connectors: BNC, N or SMA Female
Documentation: Data Sheet | Drawing | Diagram -

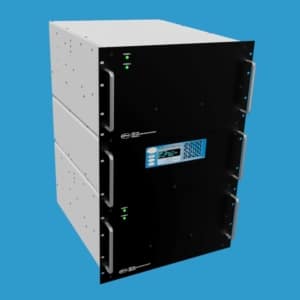

50MS-423 | 24×12 Non-Blocking Matrix Switch
JFW Model #: 50MS-423
Impedance: 50 Ohm
Configuration: 24 x 12 Non-Blocking Matrix Switch
Frequency Range: 700-4000 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +30 dBm
RF Connectors: SMA
Documentation: Data Sheet | Diagram | Drawing -

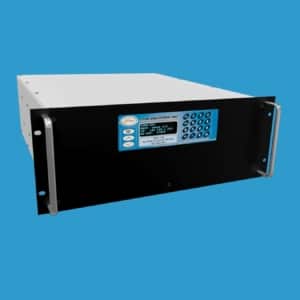

50MS-426 | 8×8 Non-Blocking Matrix Switch
JFW Model #: 50MS-426
Impedance: 50 Ohm
Configuration: 8 x 8 Non-Blocking Matrix Switch
Frequency Range: 350-6000 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +30 dBm
RF Connectors: N, SMA
Documentation: Data Sheet | Diagram | Drawing -

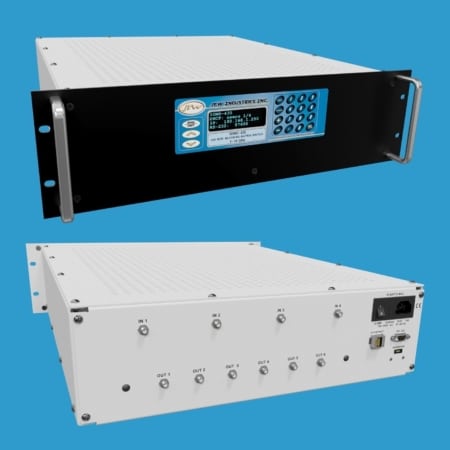

50MS-435 | 4×6 Non-Blocking Matrix Switch
JFW Model #: 50MS-435
Impedance: 50 Ohm
Configuration: 4 x 6 Non-Blocking Matrix Switch
Frequency Range: 1-18 GHz
Switch Type: Solid-state
Unused IN Ports: Absorptive
Unused OUT Ports: Reflective
RF Input Power: +30 dBm
RF Connectors: N or SMA
Documentation: Data Sheet | Drawing | Diagram -
50MS-436 | 4×8 Non-Blocking Matrix Switch
JFW Model #: 50MS-436
Impedance: 50 Ohm
Configuration: 4 x 8 Non-Blocking Matrix Switch
Frequency Range: 1-18 GHz
Switch Type: Solid-state
Unused IN Ports: Absorptive
Unused OUT Ports: Reflective
RF Input Power: +30 dBm
RF Connectors: N or SMA
Documentation: Data Sheet | Drawing | Diagram -
50MS-437 | 8×8 Non-Blocking Matrix Switch
JFW Model #: 50MS-437
Impedance: 50 Ohm
Configuration: 8 x 8 Non-Blocking Matrix Switch
Frequency Range: 1-18 GHz
Switch Type: Solid-state
Unused IN Ports: Absorptive
Unused OUT Ports: Reflective
RF Input Power: +30 dBm
RF Connectors: N or SMA
Documentation: Data Sheet | Drawing | Diagram -
50MS-455 | 4×4 Blocking Matrix Switch
JFW Model #: 50MS-455
Impedance: 50 Ohm
Configuration: 4 x 4 Blocking Matrix Switch
Frequency Range: DC-26.5 GHz
Switch Type: Electro-mechanical
Unused Ports: Absorptive (i.e. self-terminating)
RF Input Power: 50 Watts (cold switch)
RF Connectors: 3.5mm Female
Documentation: Data Sheet | Drawing | Diagram -

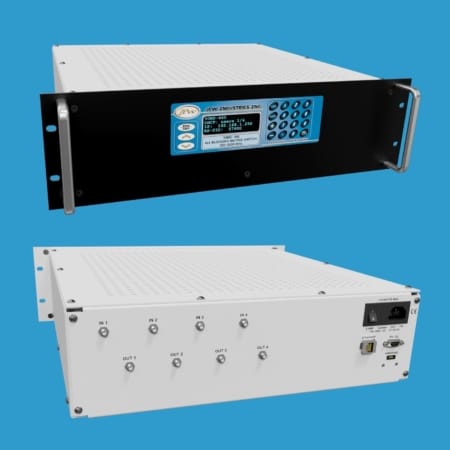

50MS-460 | 4×4 Non-Blocking Matrix Switch
JFW Model #: 50MS-460
Impedance: 50 Ohm
Configuration: 4 x 4 Non-Blocking Matrix Switch
Frequency Range: 350-6000 MHz
Switch Type: Solid-state
Unused Ports: Absorptive
RF Input Power: +30 dBm
RF Connectors: N or SMA
Documentation: Data Sheet | Drawing | Diagram
