Couplers

Couplers can be used to monitor a RF signal while adding very little insertion loss to the RF path. JFW offers resistive couplers and directional couplers. Resistive couplers are wideband, operate at DC and couple in both directions. Directional couplers work over a defined frequency band and couple the RF signal in only one direction. For your specific application, please contact JFW or use our Inquiry Form.

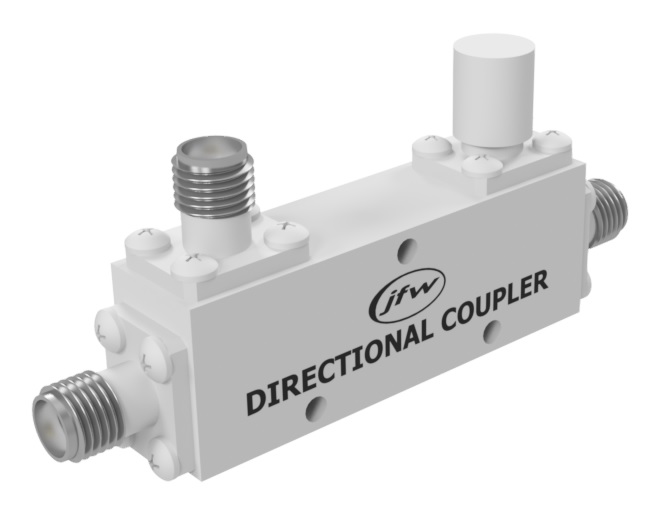

Directional Couplers

Reactive design
Couples in only one direction
Provides isolation from reverse RF signals to coupled port
Functions at specified frequency band (not at DC)

JFW Model #	Ω	Coupler Type	Coupling Value	Frequency Start	Frequency Stop	RF Input Power	RF Connectors

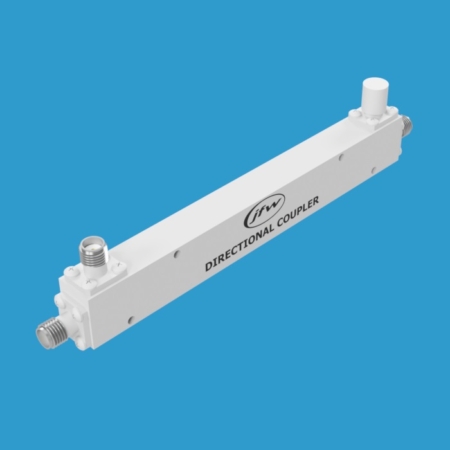

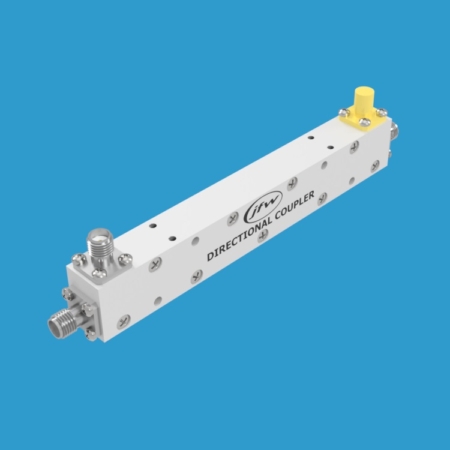

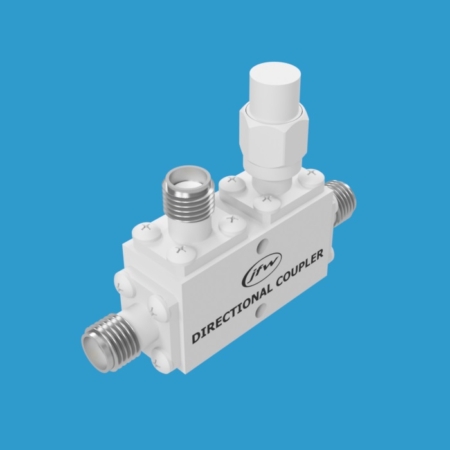

50C-064-XX	50 Ohm	Directional Coupler	10, 20 or 30 dB	375 MHz	6000 MHz	50 Watt	SMA

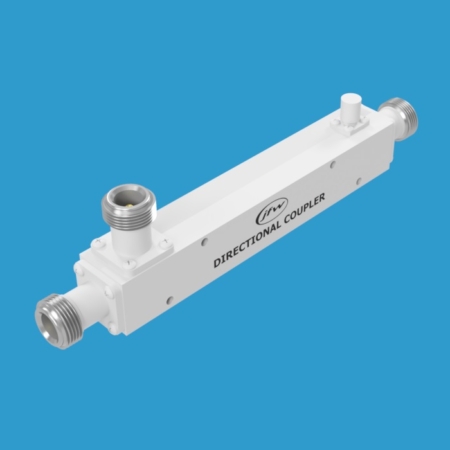

50C-067-XX	50 Ohm	Directional Coupler	10, 20 or 30 dB	400 MHz	3000 MHz	100 Watt	N
50C-070-XX	50 Ohm	Directional Coupler	10, 20 or 30 dB	500 MHz	18000 MHz	50 Watt	SMA

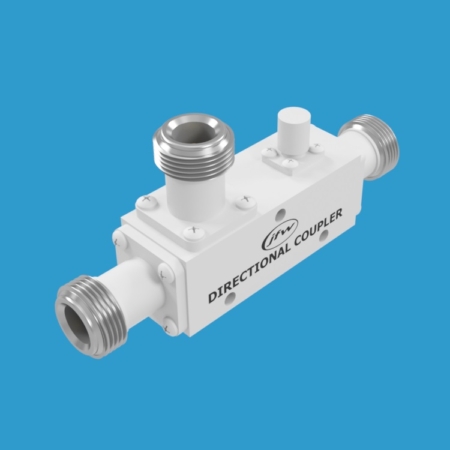

50C-068-XX	50 Ohm	Directional Coupler	10, 20 or 30 dB	2000 MHz	6000 MHz	50 Watt	N

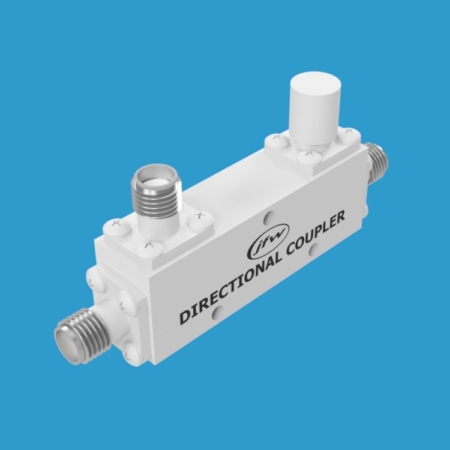

50C-076-XX	50 Ohm	Directional Coupler	10, 20 or 30 dB	2000 MHz	18000 MHz	50 Watt	SMA

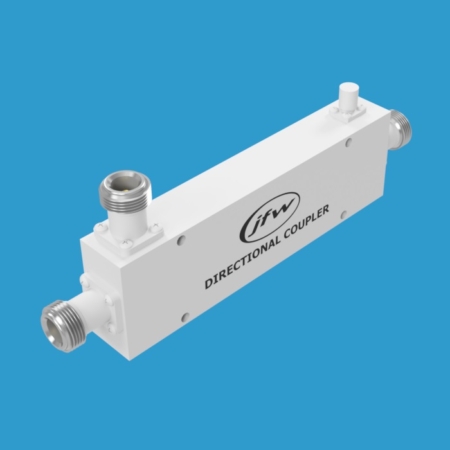

50C-077-XX	50 Ohm	Directional Coupler	40 dB	500 MHz	2700 MHz	200 Watt	N

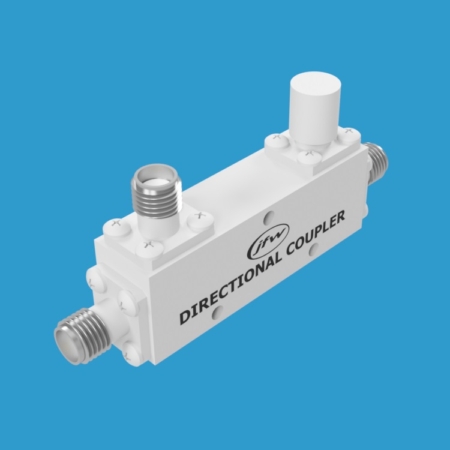

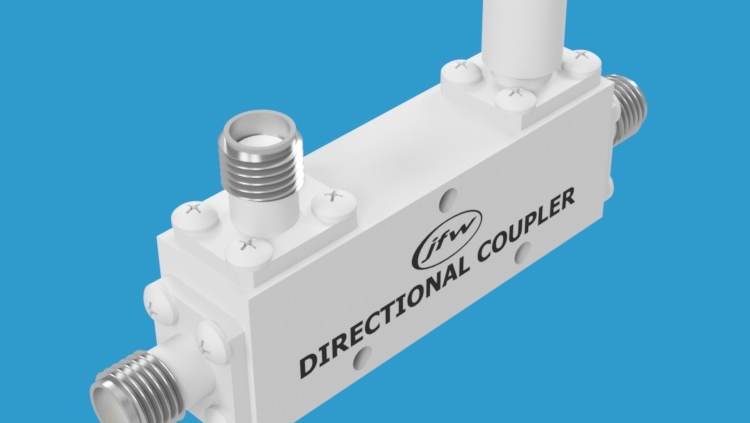

50C-075-XX	50 Ohm	Directional Coupler	10, 20 or 30 dB	2000 MHz	8000 MHz	50 Watt	SMA

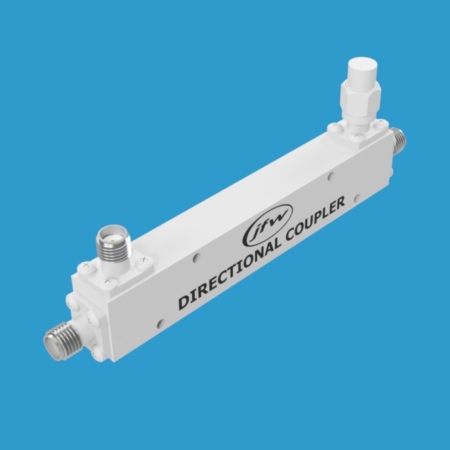

50C-081-XX	50 Ohm	Directional Coupler	10, 20 or 30 dB	1000 MHz	40000 MHz	20 Watt	2.92mm
50C-078-XX	50 Ohm	Directional Coupler	10, 20 or 30 dB	6000 MHz	26500 MHz	30 Watt	SMA

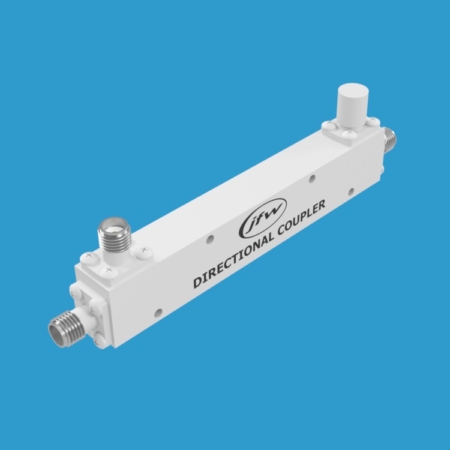

50C-065-XX	50 Ohm	Directional Coupler	10, 20 or 30 dB	800 MHz	2500 MHz	50 Watt	SMA
50C-066-XX	50 Ohm	Directional Coupler	10, 20 or 30 dB	400 MHz	3000 MHz	50 Watt	SMA

Resistive Couplers

Resistive design
Couples in both directions
Functions for both DC and RF signals

JFW Model #	Ω	Coupler Type	Coupling Value	Frequency Range	RF Input Power	RF Connectors

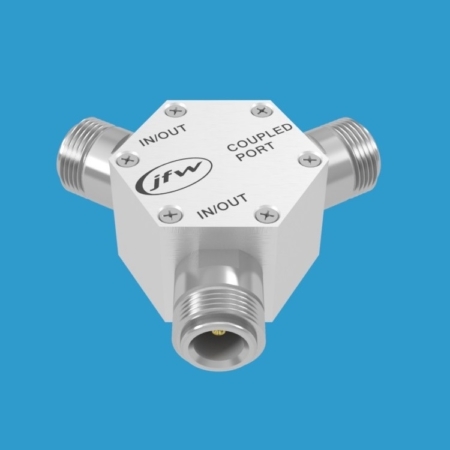

50C-041-20	50 Ohm	Resistive Coupler	20 dB	DC-2000 MHz	5 Watt	N, SMA
50C-045-25	50 Ohm	Resistive Coupler	25 dB	DC-6000 MHz	1 Watt	SMA

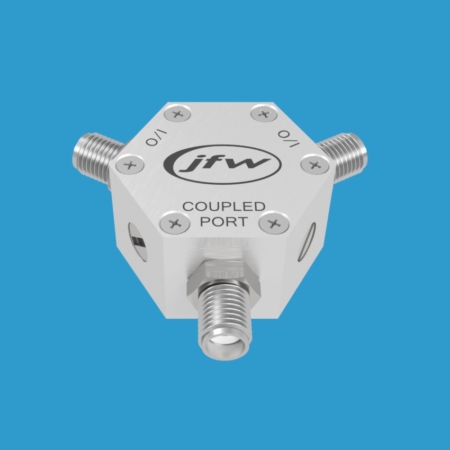

50C-051-20	50 Ohm	Resistive Coupler	20 dB	DC-3000 MHz	2 Watt	SMA
50C-054-XX	50 Ohm	Resistive Coupler	20 dB	DC-6000 MHz	2 Watt	SMA
50C-055-XX	50 Ohm	Resistive Coupler	30 dB	DC-3000 MHz	2 Watt	SMA
75C-048-20	75 Ohm	Resistive Coupler	20 dB	DC-1000 MHz	0.5 Watt	F

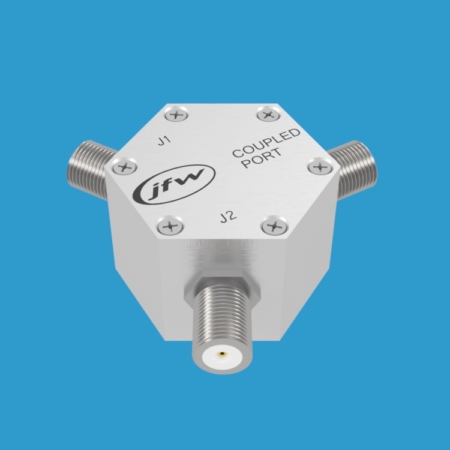

75C-049-XX	75 Ohm	Resistive Coupler	20 dB	DC-2150 MHz	0.5 Watt	F
50C-053-XX	50 Ohm	Resistive Coupler	10 dB	DC-3100 MHz	5 Watt	N, SMA
