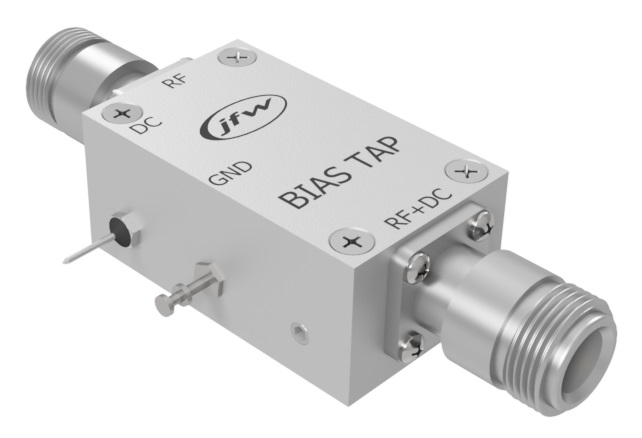

Bias Taps

Bias taps (aka Bias tees) have been a staple product in JFW’s line of quality RF test accessories for over 25 years.  They can be used to inject a DC Voltage onto a RF signal.

• 50 Ohm and 75 Ohm Bias Taps
• Low insertion loss
• DC current handling up to 5 Amps
• DC Voltage capacity up to 200 Volts
• Any RF connector combination (BNC, SMA, N, TNC, 7/16)

For specific applications, email JFW for assistance or use our Inquiry Form.

JFW Model #	Impedance	Frequency Start	Frequency Stop	DC Voltage	DC Current	DC Connectors	RF Connectors

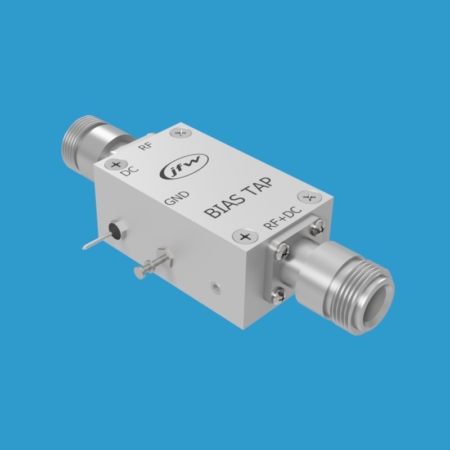

50BT-014	50 Ohm	800 MHz	2500 MHz	150 Volt	5 Amp	Terminal	BNC, N, SMA, TNC

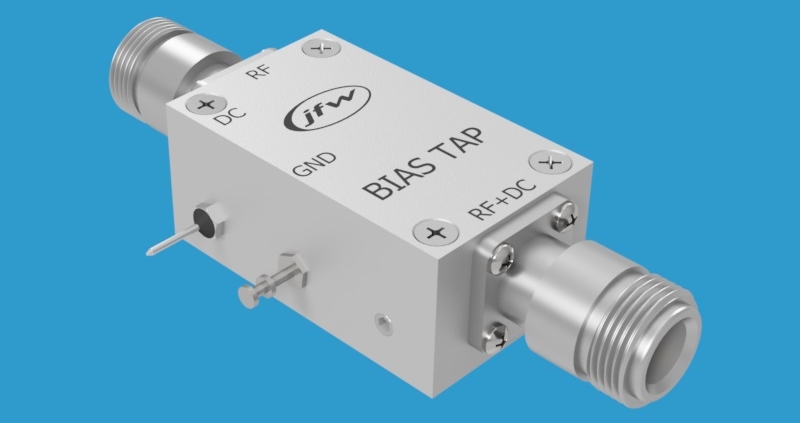

50BT-017	50 Ohm	100 MHz	1750 MHz	200 Volt	2 Amp	Terminal	BNC, N, SMA, TNC

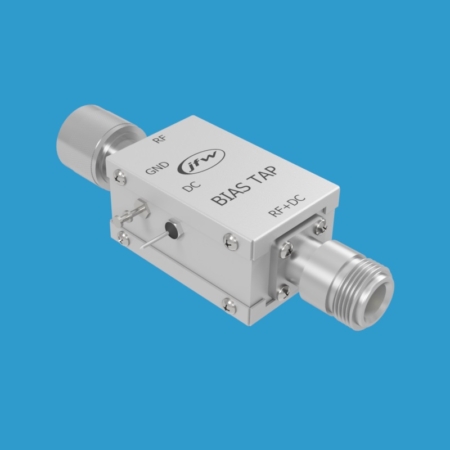

50BT-029	50 Ohm	250 MHz	3000 MHz	100 Volt	1 Amp	Terminal	BNC, N, SMA, TNC

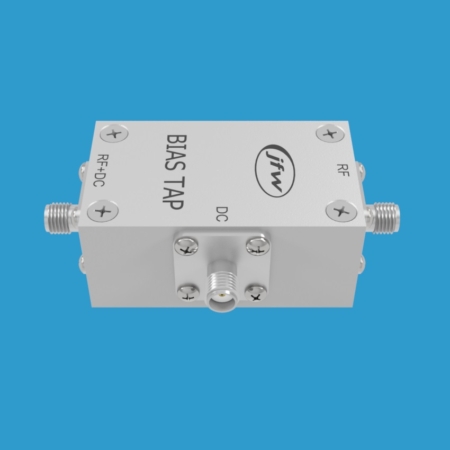

50BT-065	50 Ohm	950 MHz	2150 MHz	100 Volt	1 Amp	BNC, SMA	N, SMA
50BT-067	50 Ohm	10 MHz	2200 MHz	100 Volt	4 Amp	Terminal	N, SMA, TNC
75BT-007	75 Ohm	100 MHz	1750 MHz	200 Volt	2 Amp	Terminal	BNC, F
75BT-013	75 Ohm	5 MHz	2150 MHz	50 Volt	1 Amp	Terminal	BNC, F, N
75BT-024	75 Ohm	950 MHz	2150 MHz	100 Volt	1 Amp	BNC	F

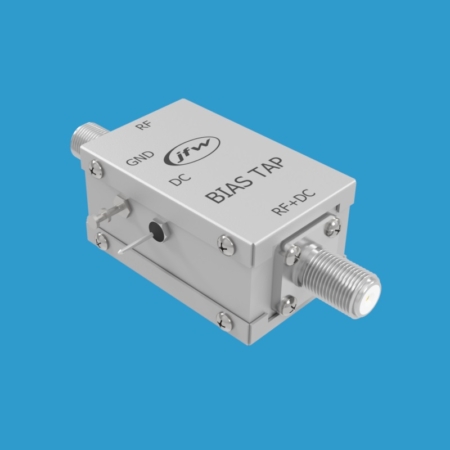

75BT-025	75 Ohm	5 MHz	2150 MHz	100 Volt	1 Amp	Terminal	BNC, F, N, TNC

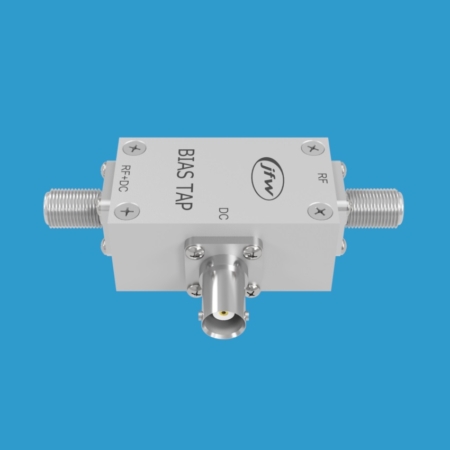

75BT-026	75 Ohm	5 MHz	2150 MHz	50 Volt	1 Amp	BNC	BNC, F, N
75BT-032	75 Ohm	1 MHz	3000 MHz	50 Volt	1 Amp	Terminal	F , N
50BT-085	50 Ohm	2 MHz	6000 MHz	50 Volt	1 Amp	Terminal	SMA

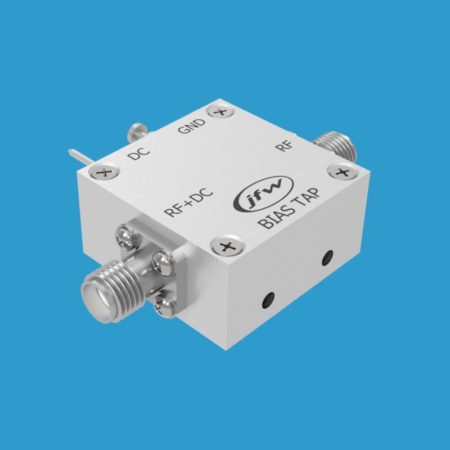

50BT-086	50 Ohm	10 MHz	8000 MHz	50 Volt	1 Amp	Terminal	SMA
