Terminations & Mismatch Loads
(5 to 50 Watts)

JFW’s online 50 Ohm medium power termination and mismatch load models are listed in the table below. JFW has been designing, manufacturing, and delivering quality terminations and mismatch loads for over 30 years. Our mismatch loads allow you to select the impedance mismatch your RF testing requires.

For your specific application, please contact JFW or use our Inquiry Form.

Termination

The terminations listed in the model table are all 50 Ohm impedance. Terminations are used to properly terminate a port in the matching impedance to prevent RF signal reflections.

Mismatch Load

The mismatch loads in the model table have model numbers that end with -XXX. The -XXX is used to specify the mismatch value. For example, JFW model #50T-034-3.0 BNC M is a 3.0:1 mismatch load (i.e. 150 Ohms) with a 50 Ohm BNC male connector.

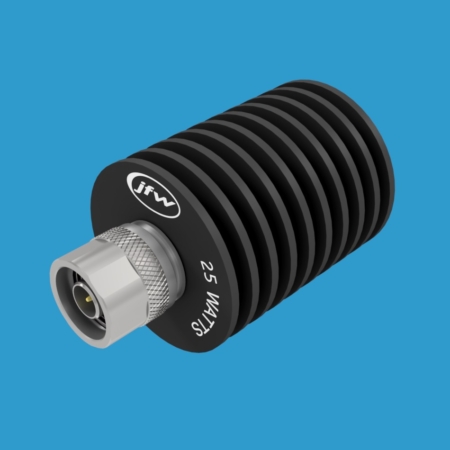

Models with Round Heatsinks

JFW Model #	Impedance	RF Connector	Frequency Range	RF Input Power	Description	Heatsink Style

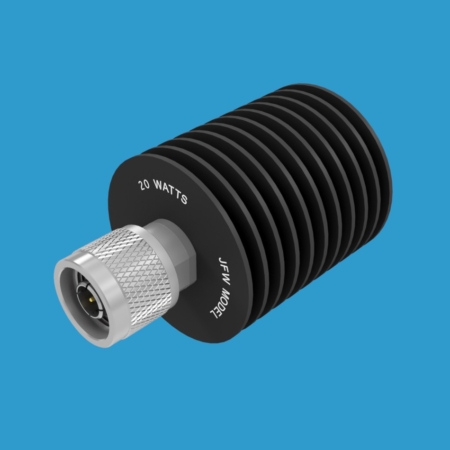

50T-358-XXX	50 Ohm	7/16, BNC, N, SMA, TNC	DC-3 GHz	20 Watt	Termination or Mismatch Load	Round

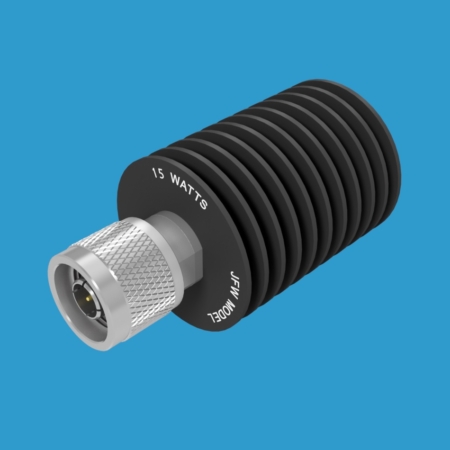

50T-359-XXX	50 Ohm	7/16, BNC, N, SMA, TNC	DC-3 GHz	15 Watt	Termination or Mismatch Load	Round
50T-410	50 Ohm	4.1/9.5, 4.3/10, 7/16, BNC, N, RP-TNC, SMA, TNC	DC-4 GHz	5 Watt	Termination	Round

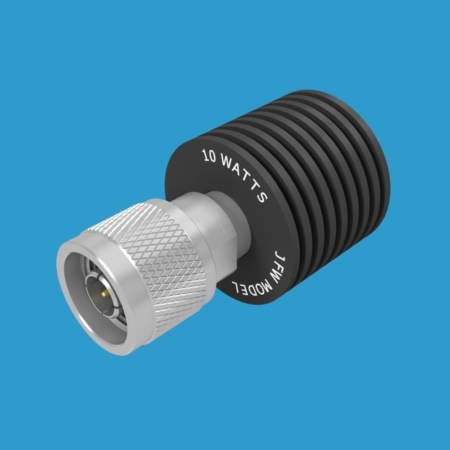

50T-439-XXX	50 Ohm	7/16, BNC, N, SMA, TNC	DC-3 GHz	10 Watt	Termination or Mismatch Load	Round

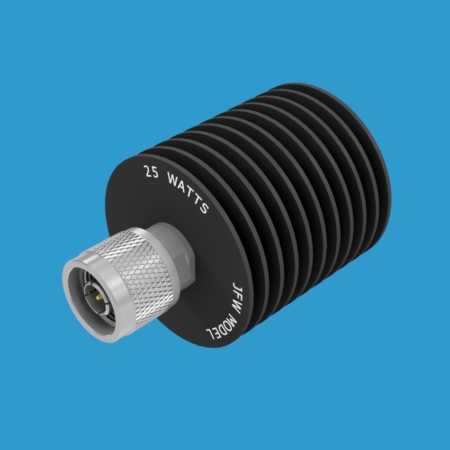

50T-440-XXX	50 Ohm	7/16, BNC, N, SMA, TNC	DC-3 GHz	25 Watt	Termination or Mismatch Load	Round
50T-473-XX	50 Ohm	BNC, N, RP-TNC, SMA, TNC	DC-1 GHz	5 Watt	Termination or Mismatch Load	Round
50T-474	50 Ohm	BNC, N, RP-TNC, SMA, TNC	DC-2 GHz	5 Watt	Termination	Round
50T-496	50 Ohm	7/16, N, SMA, TNC	DC-6 GHz	10 Watt	Termination	Round
50T-506-XXX	50 Ohm	7/16, BNC, N, SMA, TNC	DC-3 GHz	50 Watt	Termination or Mismatch Load	Round
50T-507-XXX	50 Ohm	7/16, BNC, N, SMA, TNC	DC-3 GHz	40 Watt	Termination or Mismatch Load	Round
50T-585	50 Ohm	N, SMA, TNC	DC-6 GHz	5 Watt	Termination	Round
50T-481	50 Ohm	4.1/9.5, 4.3/10, 7/16, N, SMA, TNC	DC-6 GHz	25 Watt	Termination	Round
50T-653	50 Ohm	N, SMA, TNC	DC-8 GHz	5 Watt	Termination	Round
50T-692	50 Ohm	N	DC-18 GHz	5 Watt	Termination	Round
50T-693	50 Ohm	SMA	DC-18 GHz	5 Watt	Termination	Round

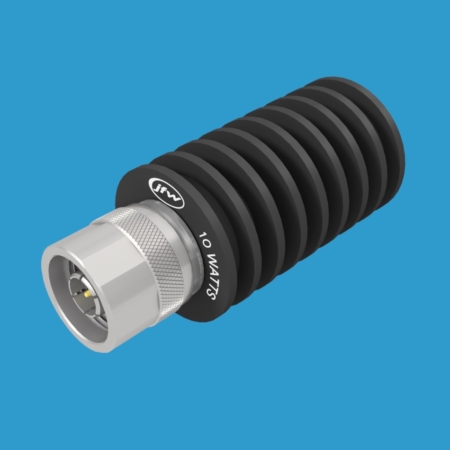

50T-698	50 Ohm	N	DC-18 GHz	10 Watt	Termination	Round
50T-699	50 Ohm	SMA	DC-18 GHz	10 Watt	Termination	Round
50T-709	50 Ohm	N, SMA	DC-18 GHz	25 Watt	Termination	Round
50T-710	50 Ohm	N, SMA	DC-18 GHz	50 Watt	Termination	Round
50T-704-XXX	50 Ohm	N, SMA	DC-6 GHz	10 Watt	Mismatch Load	Round
50T-707	50 Ohm	N, SMA	DC-18 GHz	20 Watt	Termination	Round

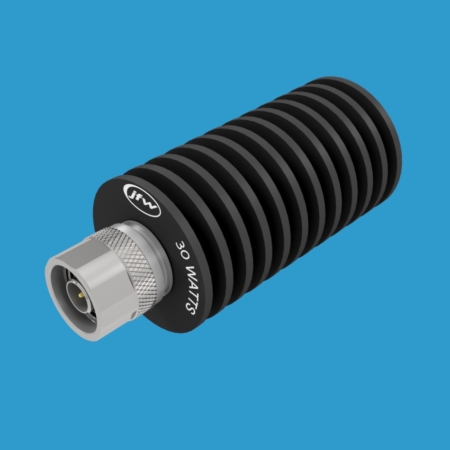

50T-708	50 Ohm	N, SMA	DC-18 GHz	30 Watt	Termination	Round

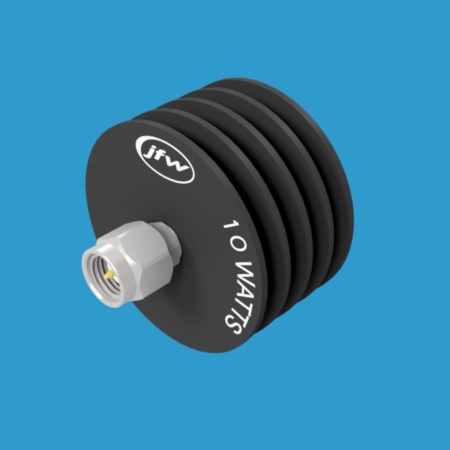

50T-730	50 Ohm	SMA	DC-26.5 GHz	10 Watt	Termination	Round
50T-736	50 Ohm	SMA	DC-26.5 GHz	5 Watt	Termination	Round
50T-740	50 Ohm	2.92mm	DC-40 GHz	5 Watt	Termination	Round
50T-741	50 Ohm	2.92mm	DC-40 GHz	10 Watt	Termination	Round

Models with Square Heatsinks

JFW Model #	Impedance	RF Connector	Frequency Range	RF Input Power	Description	Heatsink Style

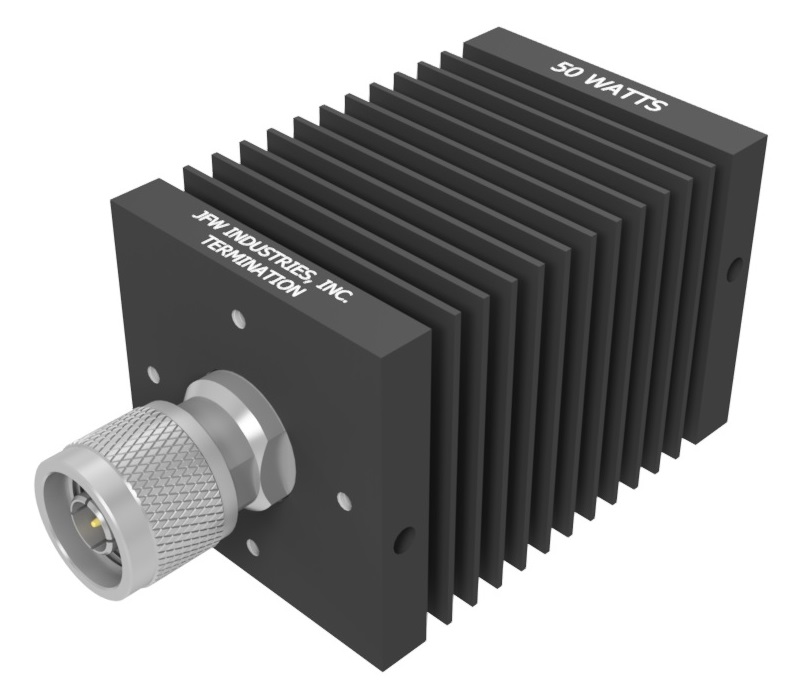

50T-034-XXX	50 Ohm	7/16, BNC, N, SMA, TNC	DC-1 GHz	50 Watt	Termination or Mismatch Load	Square
50T-532	50 Ohm	7/16, N, SMA	DC-3 GHz	50 Watt	Termination	Square
50T-554	50 Ohm	7/16, BNC, N, SMA, TNC	DC-2 GHz	30 Watt	Termination	Square
50T-548	50 Ohm	7/16, BNC, N, SMA, TNC	DC-3 GHz	30 Watt	Termination	Square
50T-533	50 Ohm	4.3/10. 7/16, N, SMA	DC-6 GHz	50 Watt	Termination	Square
50T-552	50 Ohm	7/16, BNC, N, SMA, TNC	DC-2 GHz	50 Watt	Termination	Square
50T-553-XXX	50 Ohm	7/16, BNC, N, SMA, TNC	DC-1 GHz	30 Watt	Termination or Mismatch Load	Square
50T-712	50 Ohm	N, SMA	DC-18 GHz	50 Watt	Termination	Square
50T-713	50 Ohm	N, SMA	DC-8.4 GHz	50 Watt	Termination	Square
50T-743	50 Ohm	4.3/10. 7/16, N, SMA	DC-6 GHz	30 Watt	Termination	Square

If you have specific mechanical restrictions, RF specifications, or required unit screening, please contact us. JFW does not charge NRE’s for new termination models. We pride ourselves in the ability to offer custom models with pricing in-line with our catalog models.
