Electro-Mechanical RF Switches
(50 Ohm, Absorptive)

Our absorptive 50 Ohm electro-mechanical RF switch models are listed in the tables below.  Failsafe models will provide an active RF path even when control power is lost.  The normally open models have no active RF path when control power is lost.  Normally open models do have an “all off” setting which can be important when building a switch assembly or switch matrix.  Latching models will remain in their last path setting if control power is lost. Latching models always have one active path and do not have an “all off” state.

Absorptive RF Switch

The term absorptive RF switch refers to the state of the unused ports.  For 50 Ohm RF switches, absorptive unused ports are internally terminated (i.e. self-terminating) at an impedance of 50 Ohms.

For your specific application, please contact JFW or use our Inquiry Form.

Failsafe Models

JFW Model #	Impedance	Switch Config	Switch Type	Frequency Range	Switching Speed	RF Connectors	Control

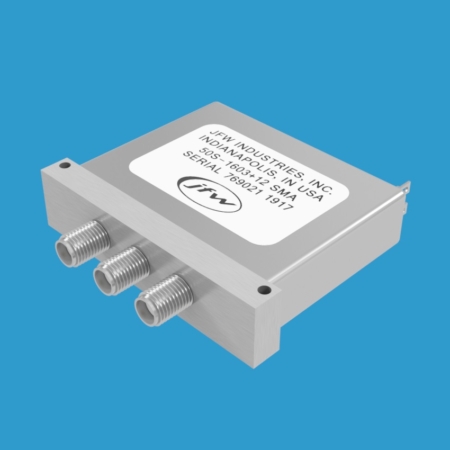

50S-1603+XX	50 Ohm	1P2T	Failsafe, Absorptive	DC-18 GHz	20 mS	SMA	+12, +24, +28 Vdc

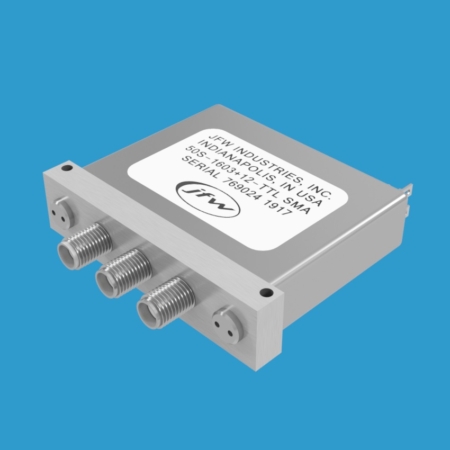

50S-1603+XX-TTL	50 Ohm	1P2T	Failsafe, Absorptive	DC-18 GHz	20 mS	SMA	TTL
50S-3002+XX	50 Ohm	1P2T	Failsafe, Absorptive	DC-26.5 GHz	15 mS	SMA	+12, +24, +28 Vdc

Normally Open Models

JFW Model #	Impedance	Switch Config	Switch Type	Frequency Range	Switching Speed	RF Connectors	Control

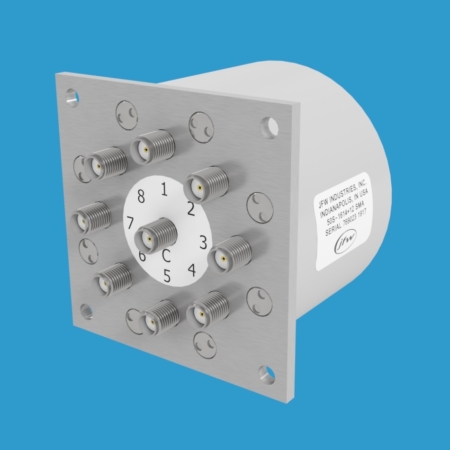

50S-1614+XX	50 Ohm	1P8T	Normally Open, Aborptive	DC-18 GHz	15 mS	SMA	+12, +15, +24, +28 Vdc
50S-1614+XX-TTL	50 Ohm	1P8T	Normally Open, Aborptive	DC-18 GHz	15 mS	SMA	TTL
50S-1638+XX	50 Ohm	1P6T	Normally Open, Aborptive	DC-18 GHz	15 mS	SMA	+12, +15, +28 Vdc

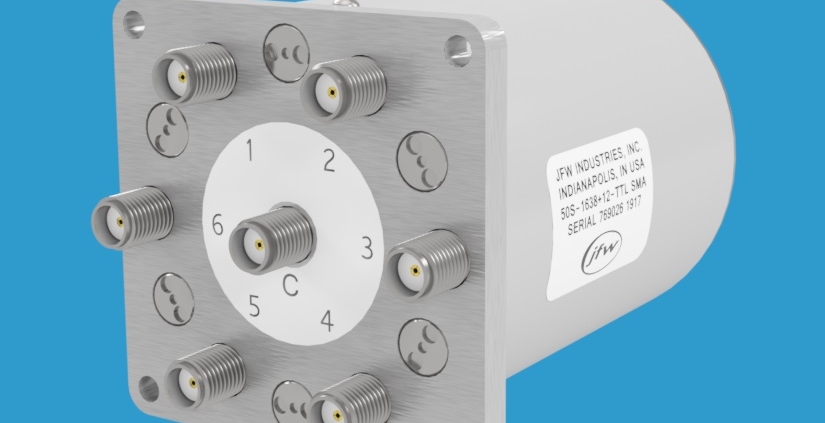

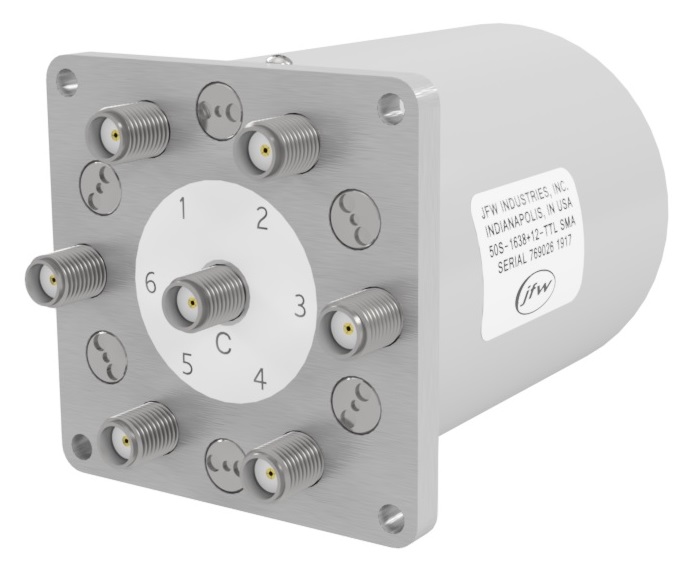

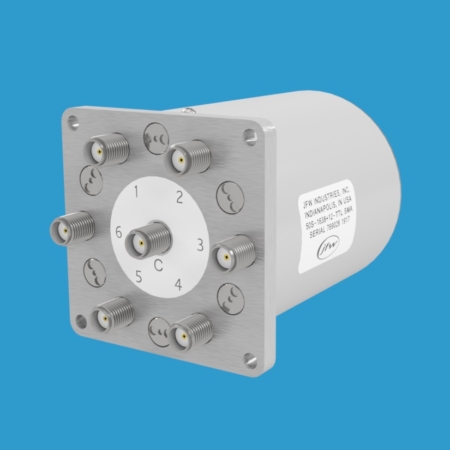

50S-1638+XX-TTL	50 Ohm	1P6T	Normally Open, Aborptive	DC-18 GHz	15 mS	SMA	TTL
50S-1650+XX	50 Ohm	1P4T	Normally Open, Aborptive	DC-18 GHz	15 mS	SMA	+12, +15, +24, +28 Vdc

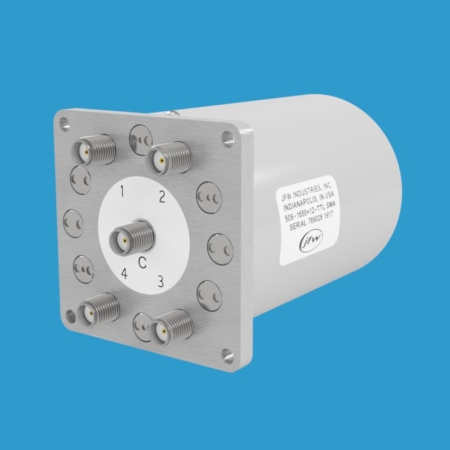

50S-1650+XX-TTL	50 Ohm	1P4T	Normally Open, Aborptive	DC-18 GHz	15 mS	SMA	TTL

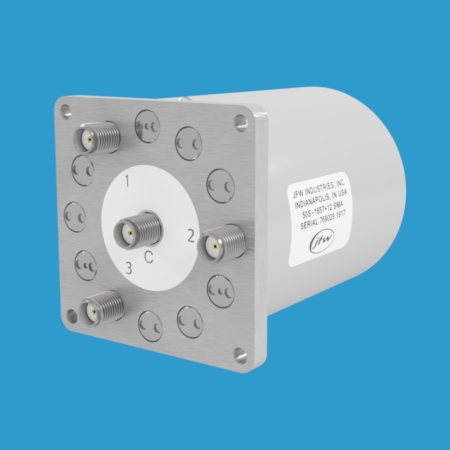

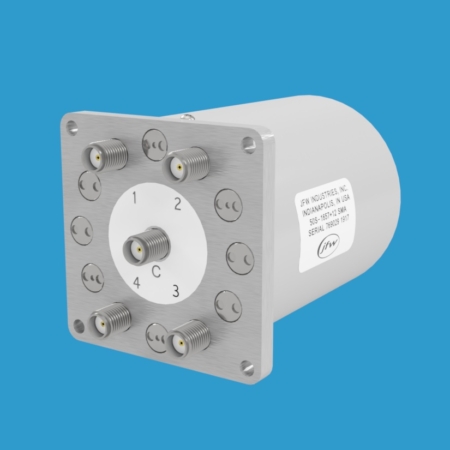

50S-1657+XX	50 Ohm	1P3T	Normally Open, Aborptive	DC-18 GHz	15 mS	SMA	+12, +15, +28 Vdc

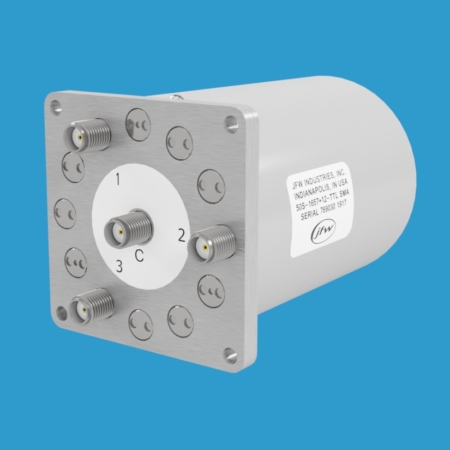

50S-1657+XX-TTL	50 Ohm	1P3T	Normally Open, Aborptive	DC-18 GHz	15 mS	SMA	TTL

Latching Models

JFW Model #	Impedance	Switch Config	Switch Type	Frequency Range	Switching Speed	RF Connectors	Control

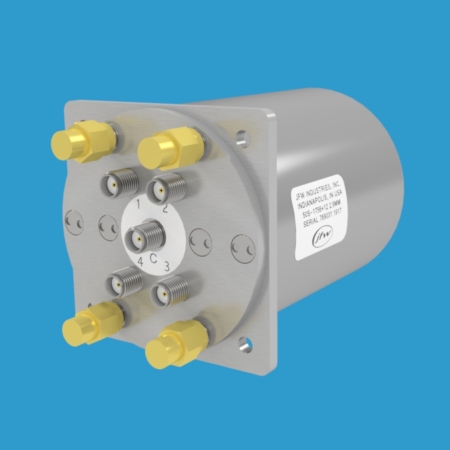

50S-1756+XX	50 Ohm	1P4T	Latching, Absorptive	DC-40 GHz	20 mS	2.92mm	GND Activated

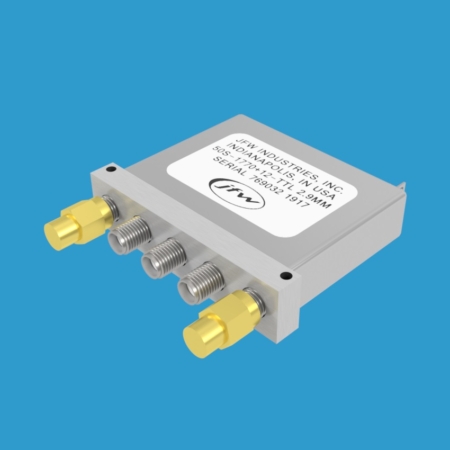

50S-1770+XX-TTL	50 Ohm	1P2T	Latching, Absorptive	DC-40 GHz	20 mS	2.92mm	TTL

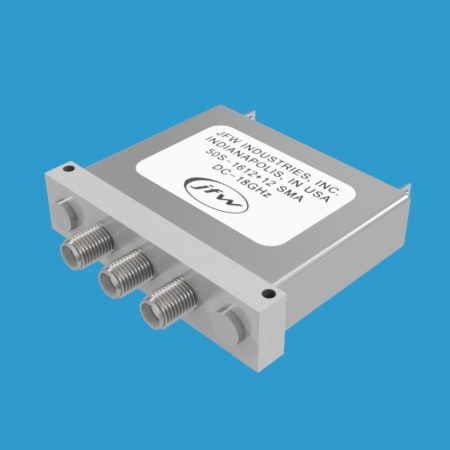

50S-1612+XX	50 Ohm	1P2T	Latching, Absorptive	DC-18 GHz	20 mS	SMA	+12, +15, +24, +28 Vdc
50S-1619+XX	50 Ohm	1P8T	Latching, Absorptive	DC-18 GHz	15 mS	SMA	GND Activated

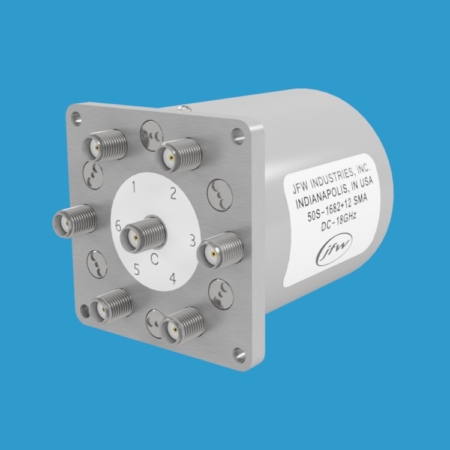

50S-1682+XX	50 Ohm	1P6T	Latching, Absorptive	DC-18 GHz	15 mS	SMA	GND Activated

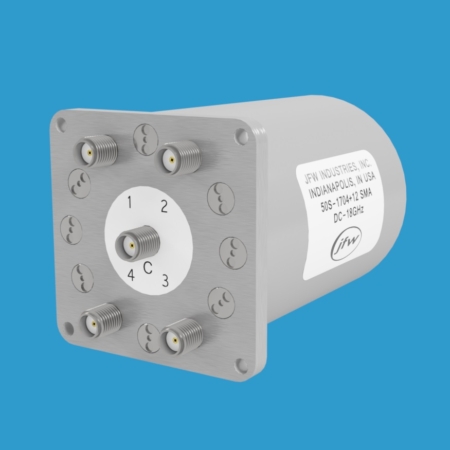

50S-1704+XX	50 Ohm	1P4T	Latching, Absorptive	DC-18 GHz	15 mS	SMA	GND Activated
