Resistive Divider/Combiner
(50 Ω, High Power)
JFW’s line of 50 Ohm high power resistive power divider/combiner models are listed in the table below. Use our application note to help determine which divider/combiner type is best for your application. For your specific application, please contact JFW or use our Inquiry Form.
Resistive Divider/Combiner Characteristics:
- Symmetrical layout using star configuration
- Functions as a RF hub with equal loss for all paths
- Can be used to connect multiple radios for testing in closed network
| Model | Impedance | Design | Frequency Range | RF Input Power | RF Connectors |
|---|---|---|---|---|---|
| 50PD-377 | 50 Ohm | 2-Way | DC-500 MHz | 200 Watts (Divider) 100 Watts (Combiner) | BNC, N, SMA, TNC |
| 50PD-583 | 50 Ohm | 5-Way | DC-2000 MHz | 30 Watts (Divider) 6 Watts (Combiner) | BNC, N, SMA, TNC |
| 50PD-631 | 50 Ohm | 4-Way | DC-2000 MHz | 30 Watts (Divider) 7.5 Watts (Combiner) | BNC, N, SMA, TNC |
| 50PD-667 | 50 Ohm | 3-Way | DC-3000 MHz | 30 Watts (Divider) 10 Watts (Combiner) | BNC, N, SMA, TNC |

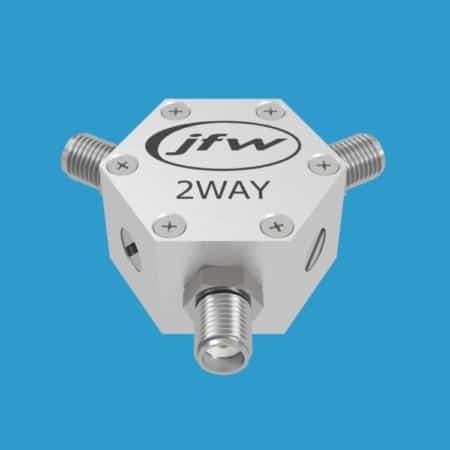

| 50PD-670 | 50 Ohm | 2-Way | DC-3000 MHz | 30 Watts (Divider) 15 Watts (Combiner) | BNC, N, SMA, TNC |
| 50PD-717 | 50 Ohm | 2-Way | DC-2000 MHz | 20 Watts (Divider) 10 Watts (Combiner) | N, SMA |
| 50PD-721 | 50 Ohm | 2-Way | DC-1200 MHz | 80 Watts (Divider) 40 Watts (Combiner) | N, SMA, TNC |
