Toggle Attenuators
Whether you are using a toggle attenuator at your RF test bench or mounting it to a panel, the JFW toggle attenuator makes adjusting attenuation quick and easy.
Step Attenuator Design

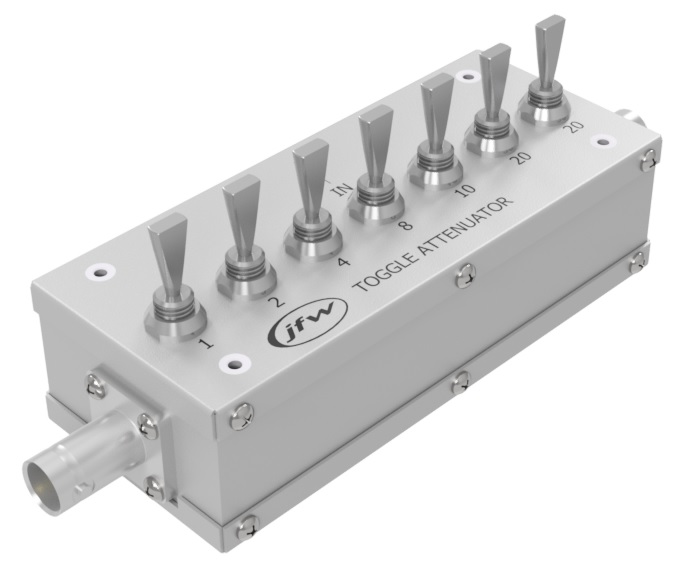

Each toggle controls an individual attenuation step. In order to achieve combinational dB settings you must activate multiple attenuation steps simultaneously.
Panel Mount Options
Most JFW toggle attenuators have threaded mounting holes on the same side as toggle switches. These mounting holes are denoted on the outline drawings.
For your specific RF testing application, please contact JFW for assistance.
| JFW Model # | Impedance | dB Total | dB Step | Frequency Range | RF Input Power | RF Connectors |
|---|---|---|---|---|---|---|

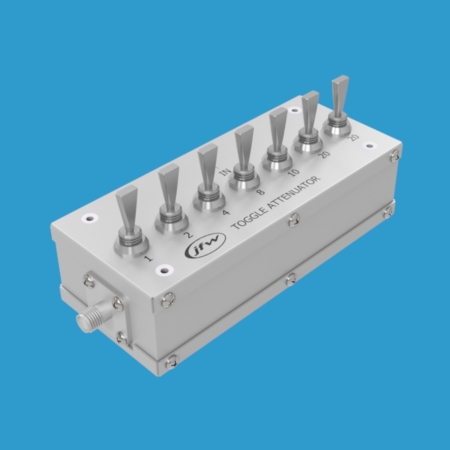

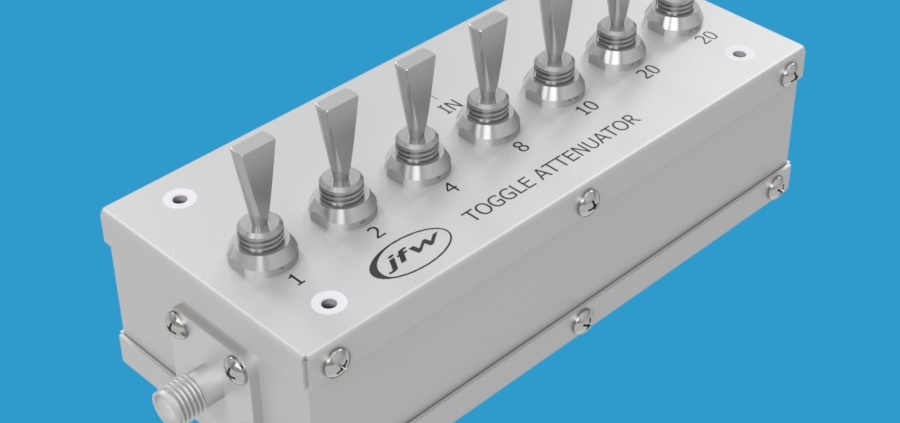

| 50TA-006 | 50 Ohm | 65 dB | 1 dB | DC-850 MHz | 0.5 Watt | BNC, N, SMA, TNC |

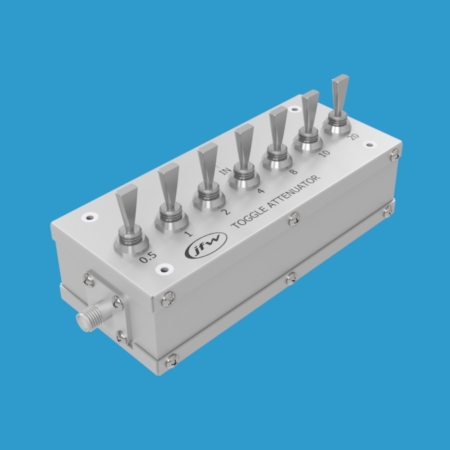

| 50TA-007 | 50 Ohm | 45.5 dB | 0.5 dB | DC-850 MHz | 0.5 Watt | BNC, N, SMA, TNC |

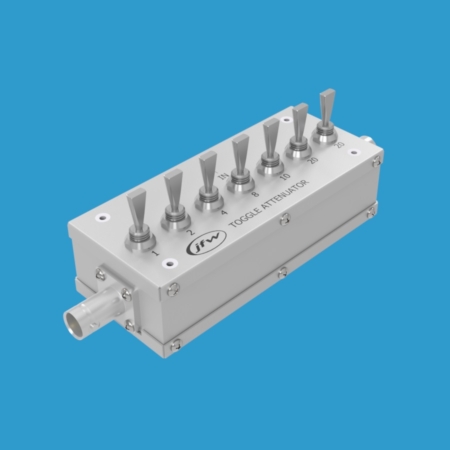

| 75TA-006 | 75 Ohm | 65 dB | 1 dB | DC-500 MHz | 0.5 Watt | BNC, F, N |

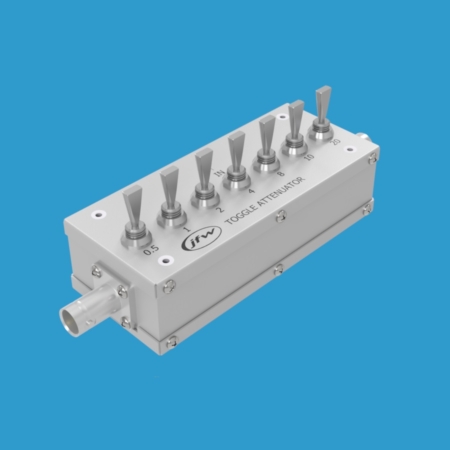

| 75TA-007 | 75 Ohm | 45.5 dB | 0.5 dB | DC-500 MHz | 0.5 Watt | BNC, F, N |
