Rocker Attenuators

The JFW rocker attenuator makes adjusting attenuation quick and easy.  Use the rocker switches on the top plate to manually set your desired attenuation.  These are passive attenuation devices that require no DC Voltage for operation.

Step Attenuator Design

Each rocker switch controls an individual attenuation step.  Activate multiple rocker switches simultaneously to set combinational dB settings.

For your specific application, please contact JFW or use our Inquiry Form.

JFW Model #	Impedance	dB Total	dB Step	Frequency Range	RF Input Power	RF Connectors

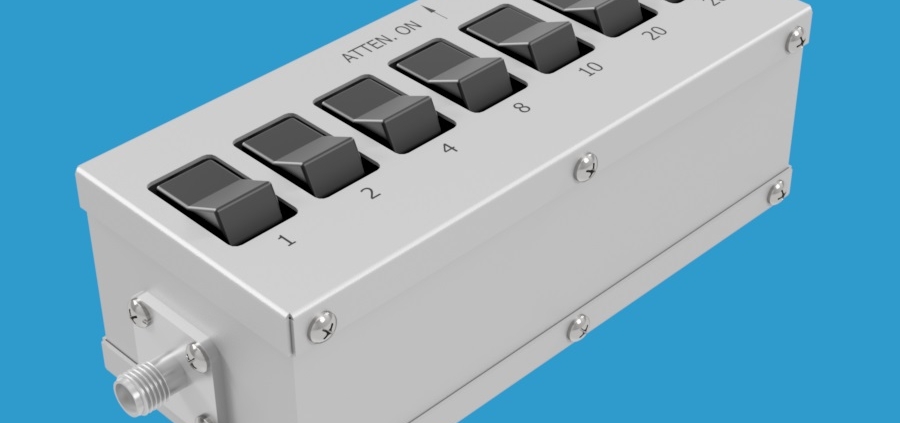

50RA-003	50 Ohm	65 dB	1 dB	DC-500 MHz	1 Watt	BNC, N, SMA, TNC

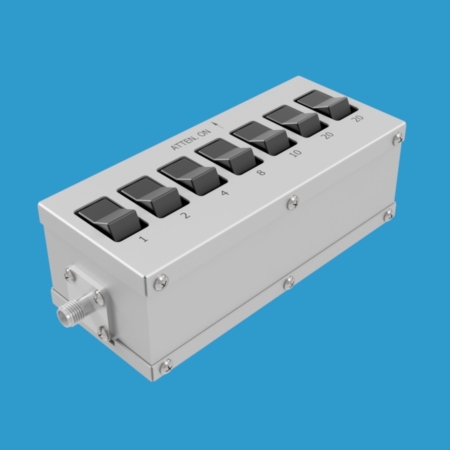

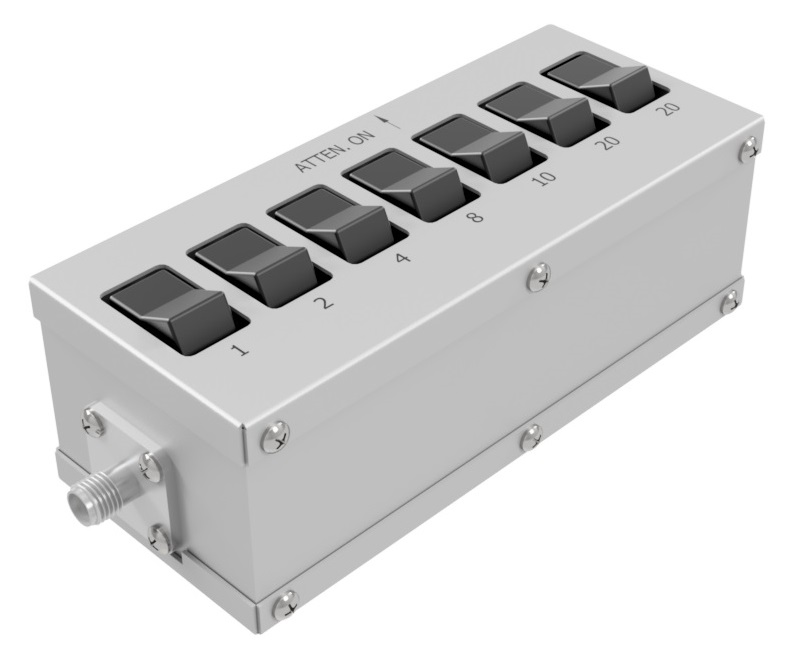

50RA-004	50 Ohm	65 dB	1 dB	DC-1000 MHz	1 Watt	BNC, N, SMA, TNC
