CATV & Satellite Models
The models listed below are models that JFW has designed and manufactured for customers in the CATV and satellite communications industries. As cable operators have expanded to offer high speed data (per DOCSIS) over their hybrid fiber coaxial network (HFC) and telecommunications companies have expanded to offer internet television (IPTV), the line between cable operator and telecom company has blurred. Different approaches to offering high speed data and television services has created a need for 75 Ohm RF products that work higher in frequency in order to test products for all of these different communication standards.
For specifications and outline drawings, just click on the model number to jump to that model’s individual product page. If you can’t find a model for your specific application, please email your requirements to sales@jfwindustries.com.
75 Ohm RF Switches for CATV/Sat Comms Testing

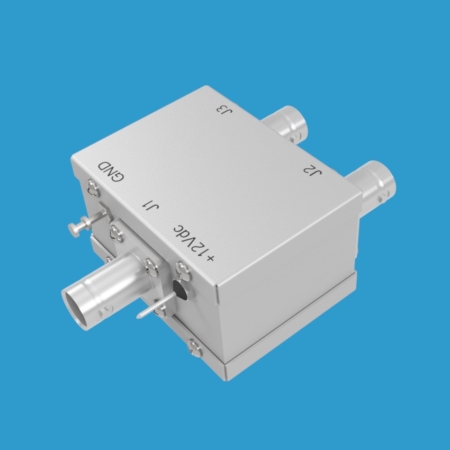

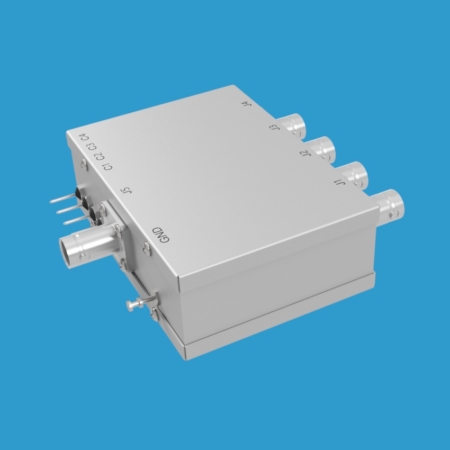

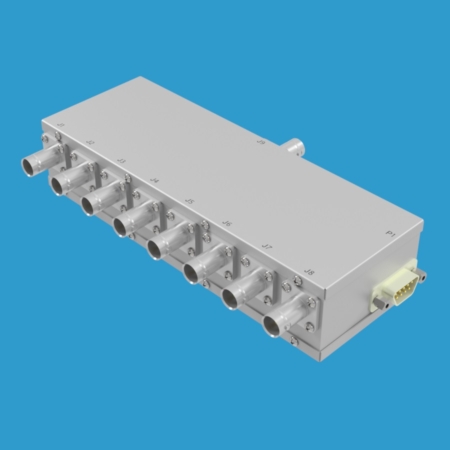

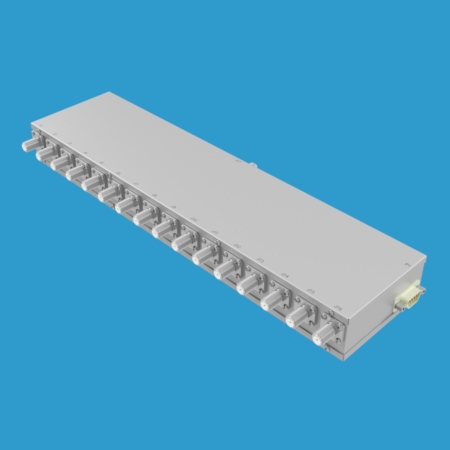

JFW Model # Impedance Switch Config Switch Type Frequency Start Frequency Stop Switching Speed RF Input Power Isolation Control RF Connectors 75S-385 75 Ohms 1P2T Absorptive 5 MHz 1000 MHz 10 uS +10 dBm 75 dB TTL BNC, F 75S-111 75 Ohms 1P2T Absorptive 0 MHz (DC) 2150 MHz 10 mS +20 dBm 50 dB +12 Vdc BNC, F, TNC 75S-387 75 Ohms 1P8T Absorptive 5 MHz 1000 MHz 10 uS +10 dBM 65 dB TTL BNC, F 75S-221 75 Ohms 1P8T Failsafe, Absorptive 0 MHz (DC) 2150 MHz 10 mS +20 dBm 60 dB +12 Vdc BNC, F 75S-386 75 Ohms 1P4T Absorptive 5 MHz 1000 MHz 10 uS +10 dBm 70 dB TTL BNC, F 75S-264 75 Ohms 1P16T Absorptive 20 MHz 1000 MHz 50 uS +20 dBm 55 dB TTL BNC, F 75S-303 75 Ohms 1P16T Failsafe, Absorptive 0 MHz (DC) 2150 MHz 10 mS +27 dBm 70 dB TTL BNC, F 75S-306 75 Ohms 1P4T Normally Open, Aborptive 0 MHz (DC) 2150 MHz 10 mS +27 dBm 70 dB TTL BNC, F 75S-365 75 Ohms 1P2T Absorptive 5 MHz 2150 MHz 10 uS +20 dBm 70 dB TTL F 75S-366 75 Ohms 1P4T Absorptive 5 MHz 2150 MHz 10 uS +20 dBm 70 dB TTL F 75S-371 75 Ohms 1P8T Absorptive 5 MHz 2150 MHz 10 uS +20 dBm 60 dB TTL F 75SA-058 75 Ohms 1 Switch 1P16T Self-Terminating 20 MHz 1000 MHz 50 uS 0.1 Watts 55 dB Ethernet, RS-232 F
75 Ohm Variable Attenuators for CATV/Sat Comms Testing
JFW Model # Impedance dB Total dB Step Frequency Start Frequency Stop RF Input Power RF Connectors 75BR-023 75 Ohms 70 dB 1 dB 0 MHz (DC) 2150 MHz 1 Watt BNC, F, N 75DR-021 75 Ohms 30 dB 1 dB 0 MHz (DC) 2100 MHz 1 Watt BNC, F, N 75P-217 75 Ohms 95 dB 1 dB 5 MHz 2150 MHz +23 dBm BNC, F, N 75P-153 75 Ohms 63.5 dB 0.5 dB 20 MHz 1000 MHz +15 dBm BNC, F 75P-173 75 Ohms 127 dB 1 dB 450 MHz 2150 MHz +20 dBm BNC, F, N 75P-193 75 Ohms 63 dB 1 dB 5 MHz 2150 MHz +10 dBm F 75PA-053 75 Ohms 127 dB 1 dB 450 MHz 2150 MHz +20 dBm F
75 Ohm Power Dividers for Sat Comm/MOCA Testing
JFW Model # Impedance Config Frequency Start Frequency Stop RF Input Power RF Connectors 75PD-072 75 Ohms 4-Way 800 MHz 2400 MHz 5 Watts F, N 75PD-074 75 Ohms 2-Way 800 MHz 2400 MHz 5 Watts BNC, F, N 75PD-075 75 Ohms 8-Way 950 MHz 2150 MHz 5 Watts F, N 75PD-167 75 Ohms 3-Way 0 MHz (DC) 2150 MHz 0.5 Watts F 75PD-168 75 Ohms 7-Way 0 MHz (DC) 2150 MHz 0.5 Watts F 75PD-169 75 Ohms 15-Way 0 MHz (DC) 2150 MHz 0.5 Watts F
75 Ohm Test Accessories for CATV/Sat Comms Testing
JFW Model # Impedance Frequency Start Frequency Stop RF Input Power VSWR RF Connectors 75T-019 75 Ohms 0 MHz (DC) 2150 MHz 1 Watt 1.10:1 DC-1 GHz, 1.25:1 1-2.15 GHz F Male Screw-On
JFW Model # Impedance Frequency Start Frequency Stop Attenuation Loss 50 Ohm End Connector 75 Ohm End Connector 57Z-3G 50 Ohm to 75 Ohm 0 MHz (DC) 3000 MHz 5.7dB +/- 0.5 dB BNC, N, SMA, TNC BNC, F, N, TNC
JFW Model # Impedance Frequency Start Frequency Stop Attenuation Loss 50 Ohm End Connector 75 Ohm End Connector 57ZTT-AA 50 Ohm to 75 Ohm 800 MHz 2200 MHz 0.5 dB BNC, N, SMA, TNC BNC, F, N, TNC
JFW Model # Impedance Coupling Values Frequency Start Frequency Stop RF Input Power RF Connectors 75C-049 75 Ohms 20 dB 0 MHz (DC) 1000 MHz 0.5 Watts F Female
JFW Model # Impedance Frequency Start Frequency Stop RF Input Power Attenuation Values RF Connectors 75FFB-XXX 75 Ohms 950 MHz 2150 MHz 1 Watt DC Passing 3-20 dB BNC, F 75FFD-XXX 75 Ohms 450 MHz 2000 MHz 1 Watt DC Passing 3-20 dB BNC, F 75FP-XXX-2G 75 Ohms 0 MHz (DC) 2000 MHz 1 Watt 1-20 dB BNC, F, N, TNC 75FP-XXX-3G 75 Ohms 0 MHz (DC) 3000 MHz 0.5 Watts 1-30 dB F, N
