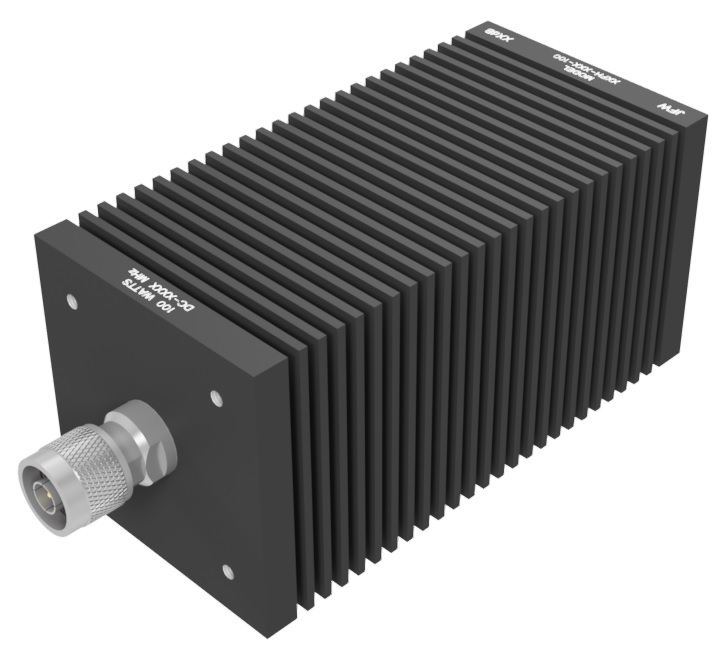

100 Watt fixed attenuator with 50 Ohm N male/female connectors

50 Ohm Fixed Attenuators
(75 to 1000 Watts)

The name JFW has been synonymous with 50 Ohm fixed attenuators since our inception in 1979. Our attenuators are used in RF labs, integrated into RF sub systems, and installed into cellular base stations. We stock a wide selection of fixed attenuators with standard dB values (3, 6, 10, 20, 30dB) and RF connectors (BNC, N, SMA, TNC). We also manufacture fixed attenuators with custom dB values and mixed RF connector combinations.

An attenuator is used to decrease the power level of a RF signal. A fixed attenuator is an attenuator that has a single fixed dB value. When purchasing a fixed attenuator you have to specify which dB value you require. Use our selection chart to look up your required dB value.

For your specific application, please contact JFW or use our Inquiry Form.

Fixed Attenuators with Round Heatsinks

JFW Model #	Impedance	Frequency Range	RF Input Power	Attenuation Values	Heatsink Style	RF Connectors

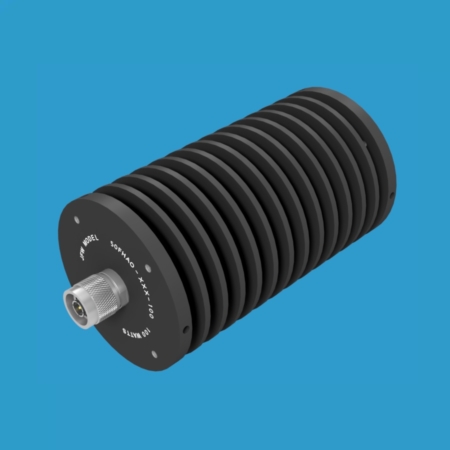

50FHAO-XXX-100	50 Ohm	DC-3 GHz	100 Watt	1-50 dB	Round	BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16
50FHAO-XXX-100-4	50 Ohm	DC-4 GHz	100 Watt	20, 30, 40 dB	Round	N, 4.3/10
50FHAO-XXX-150	50 Ohm	DC-3 GHz	150 Watt	1-50 dB	Round	BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16

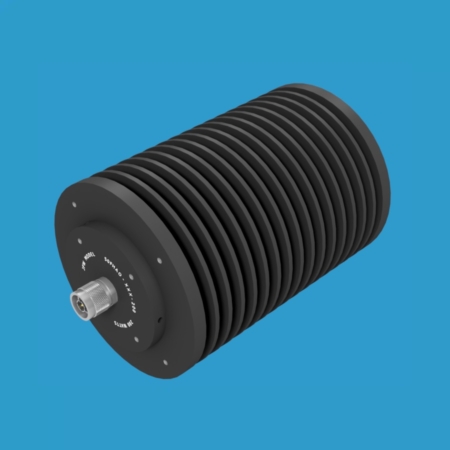

50FHAO-XXX-200	50 Ohm	DC-3 GHz	200 Watt	1-50 dB	Round	BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16
50FHAO-XXX-200-4	50 Ohm	DC-4 GHz	200 Watt	30, 40 dB	Round	N, SMA, TNC, 4.3/10

Fixed Attenuators with Square Heatsinks

JFW Model #	Impedance	Frequency Range	RF Input Power	Attenuation Values	Heatsink Style	RF Connectors

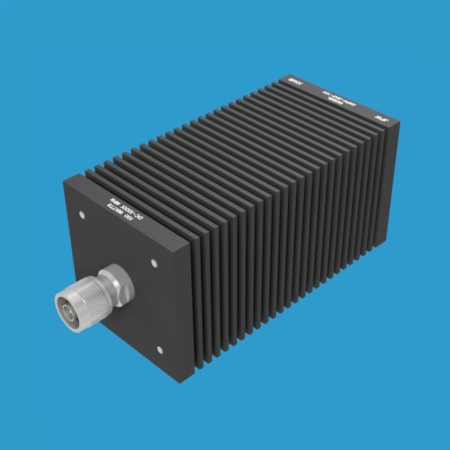

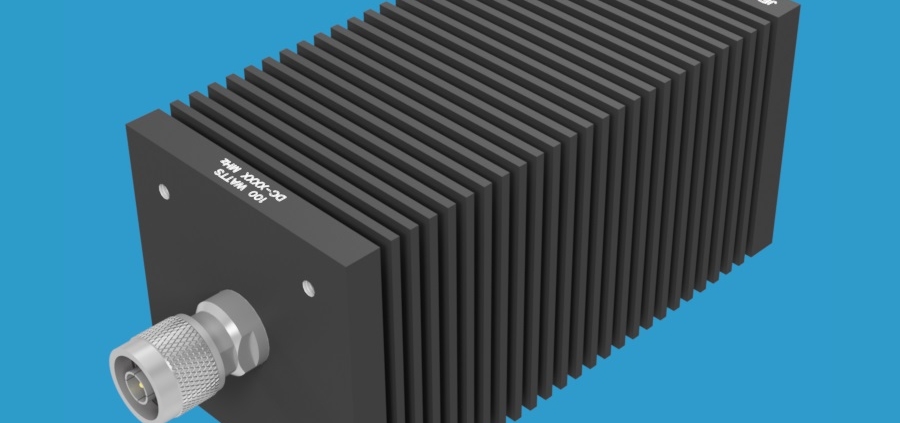

50FH-XXX-100	50 Ohm	DC-1 GHz	100 Watt	1-50 dB	Square	BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16
50FH-XXX-100-2	50 Ohm	DC-2 GHz	100 Watt	1-50 dB	Square	BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16
50FH-XXX-100-3	50 Ohm	DC-3 GHz	100 Watt	1-50 dB	Square	BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16
50FH-XXX-80-3	50 Ohm	DC-3 GHz	80 Watt	1-50 dB	Square	BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16
50FHAO-XXX-75	50 Ohm	DC-3 GHz	75 Watt	1-50 dB	Square	BNC, N, SMA, TNC, 4.1/9.5, 4.3/10, 7/16
50FHDQ-XXX-500	50 Ohm	DC-1 GHz	500 Watt uni-directional	3-40 dB	Square	N, TNC, 7/16
50FHDQ-XXX-500-3	50 Ohm	DC-3 GHz	500 Watt uni-directional	6-40 dB	Square	N, TNC
50FHIE-XXX-1000	50 Ohm	DC-3 GHz	1000 Watt uni-directional	20, 30, 40 dB	Square	N, 7/16

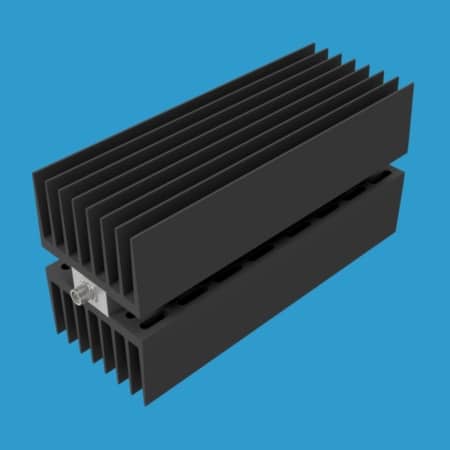

50FHIQ-XXX-1000	50 Ohm	DC-1 GHz	1000 Watt uni-directional	6-40 dB	Square	N, TNC, 7/16
50FHDQ-XXX-300	50 Ohm	DC-1 GHz	300 Watt uni-directional	3-40 dB	Square	N, TNC, 7/16
50FHDQ-XXX-300-3	50 Ohm	DC-3 GHz	300 Watt uni-directional	6-40 dB	Square	N, TNC

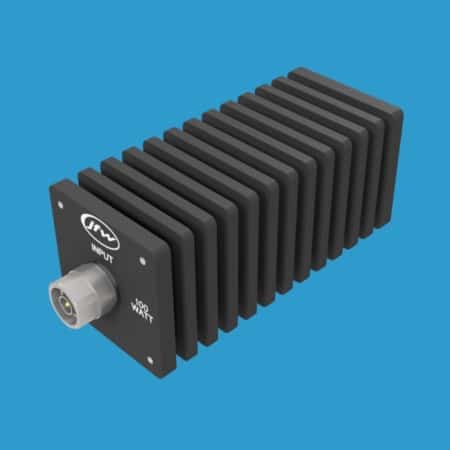

50HFFE-XXX-100/8	50 Ohm	DC-8.4 GHz	100 Watt uni-directional	6-40 dB	Square	N, SMA
50HFFE-XXX-100/6	50 Ohm	DC-6 GHz	100 Watt uni-directional	3-50 dB	Square	N, SMA
50HFFE-XXX-100/12	50 Ohm	DC-12.4 GHz	100 Watt uni-directional	3-40 dB	Square	N, SMA
50HFFE-XXX-100/18	50 Ohm	DC-18 GHz	100 Watt uni-directional	6-40 dB	Square	N, SMA
50FHPZ-XXX-1000	50 Ohm	DC-1 GHz	1000 Watt uni-directional	3 dB	Square	N, 7/16

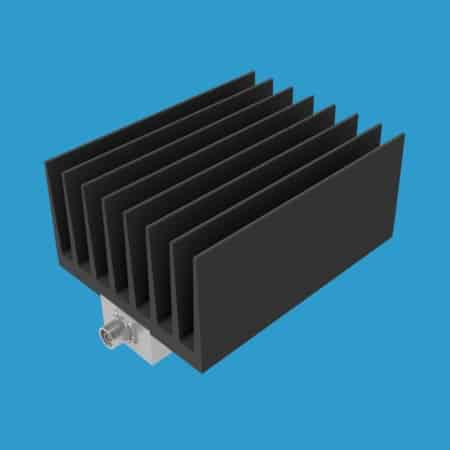

50FHMV-XXX-1000	50 Ohm	DC-3 GHz	1000 Watt uni-directional	3 dB	Square	N
