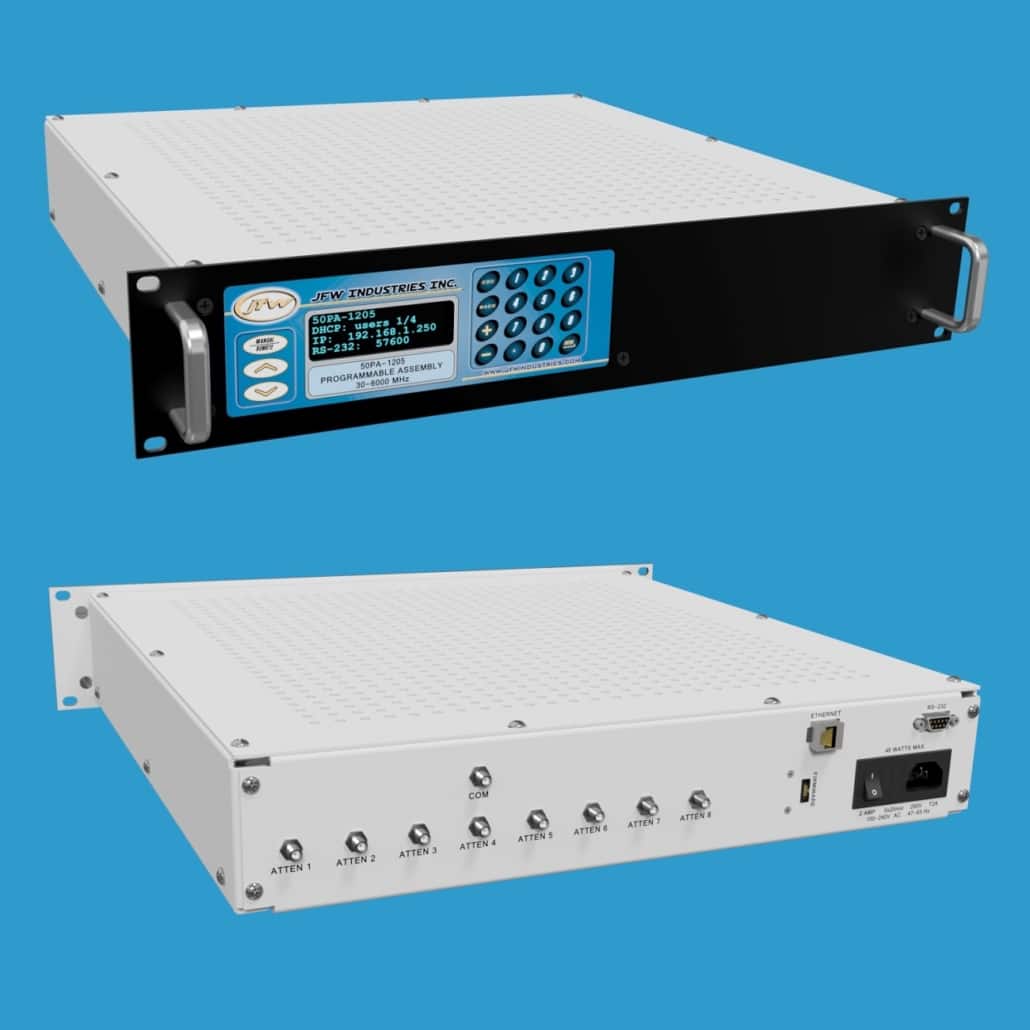

8 x 1 LC Handover Test System 30-6000 MHz | 50PA-1205

Wideband 8X1 LC Handover System | 30-6000 MHz | 0-95dB x 1dB

/in , /by

Test up to 8 radios at one time with isolation between radios.  JFW model 50PA-1205 is our widest bandwidth 8X1 LC handover test system test to date.  It operates 30-6000MHz.  It consists of eight programmable attenuators (0-95dB x 1dB step) that connect to an 8-Way splitter/combiner (see block diagram).  The insertion loss paths are from the COM of the 8-Way to each of the eight attenuators.  The isolation paths are from attenuator port to attenuator port.  See the data sheet for insertion loss and isolation specifications.  All RF paths are bi-directional.  The unit is remotely controlled via an Ethernet or serial connection.  The programmable attenuators can be controlled individually or set in groups.

RF Path Examples:

COM to ATTEN 1 (insertion loss path)
COM to ATTEN 8 (insertion loss path)
ATTEN 1 to COM (insertion loss path)
ATTEN 8 to COM (insertion loss path)

ATTEN 1 to ATTEN 2 (isolation path)
ATTEN 1 to ATTEN 3 (isolation path)
ATTEN 1 to ATTEN 8 (isolation path)
ATTEN 7 to ATTEN 8 (isolation path)
ATTEN 8 to ATTEN 7 (isolation path)
