RF switch assemblies that cover the 5G future 8GHz spectrum band
JFW has added a new line of RF switch assemblies that operate 20MHz to 8.4GHz to cover the 5G future 8GHz spectrum band. These models are remotely controlled via Ethernet/Serial. The switches can hot switch up to +26dBm with typical isolation of 55dB at 8.4GHz.
Switch Assembly Model Numbers:
- 1P2T model: 50SA-803-XX SMA

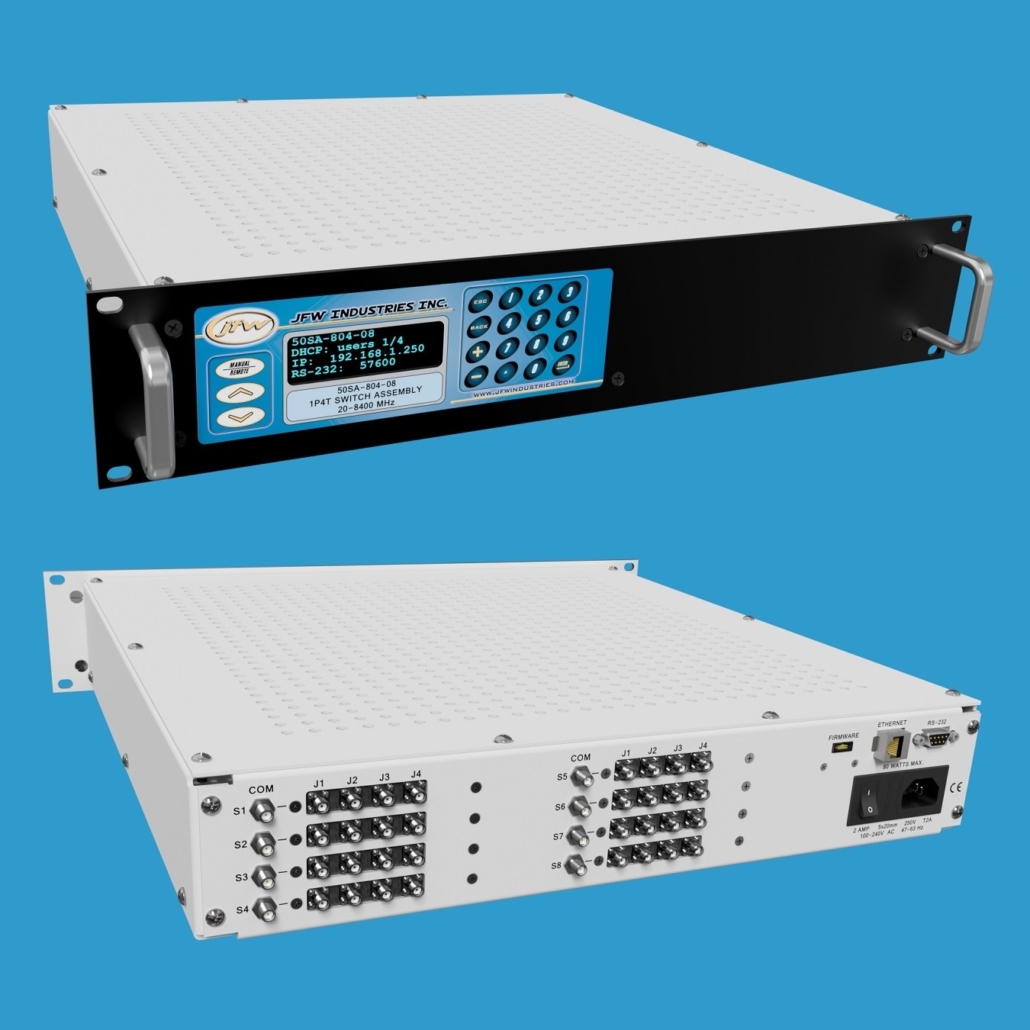

- 1P4T model: 50SA-804-XX SMA
- 1P8T model: 50SA-805-XX SMA
RF Switch Features:
- 20-8400MHz
- 55dB isolation typical at 8.4GHz
- +26dBm average (hot switch)
- 5 microsecond typical switching time
- SMA female
