Resistive 8-Way Divider/Combiner for WiFi 6E Testing

/in , /by

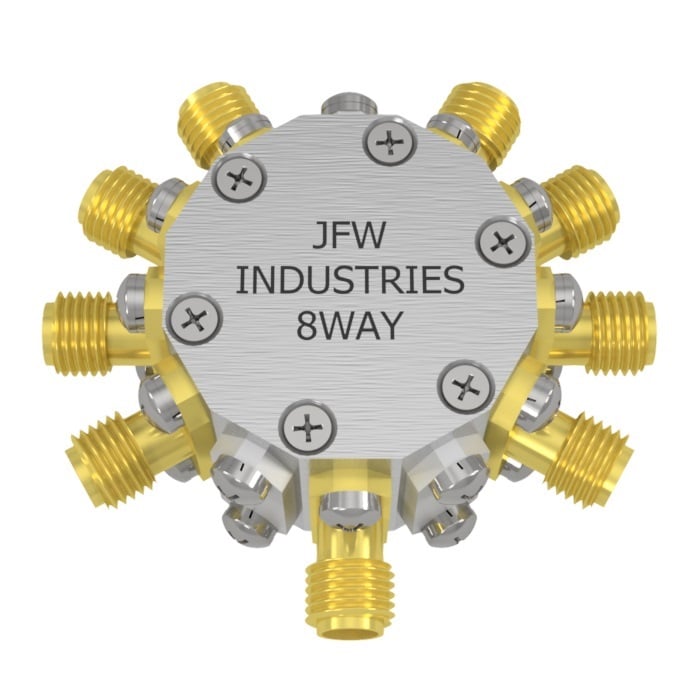

JFW Model 50PD-871 SMA is a resistive 8-way power divider/combiner that operates DC-7.2 GHz.  It is available with 50 Ohm SMA female RF connectors.  The unit is designed with a symmetrical layout (i.e. star configuration) so that all paths thru the 8-way have equal loss.  It functions as a 9 port RF hub.  If you do not use all nine ports in your test setup, make sure to terminate the unused ports with a 50 Ohm SMA male termination.
