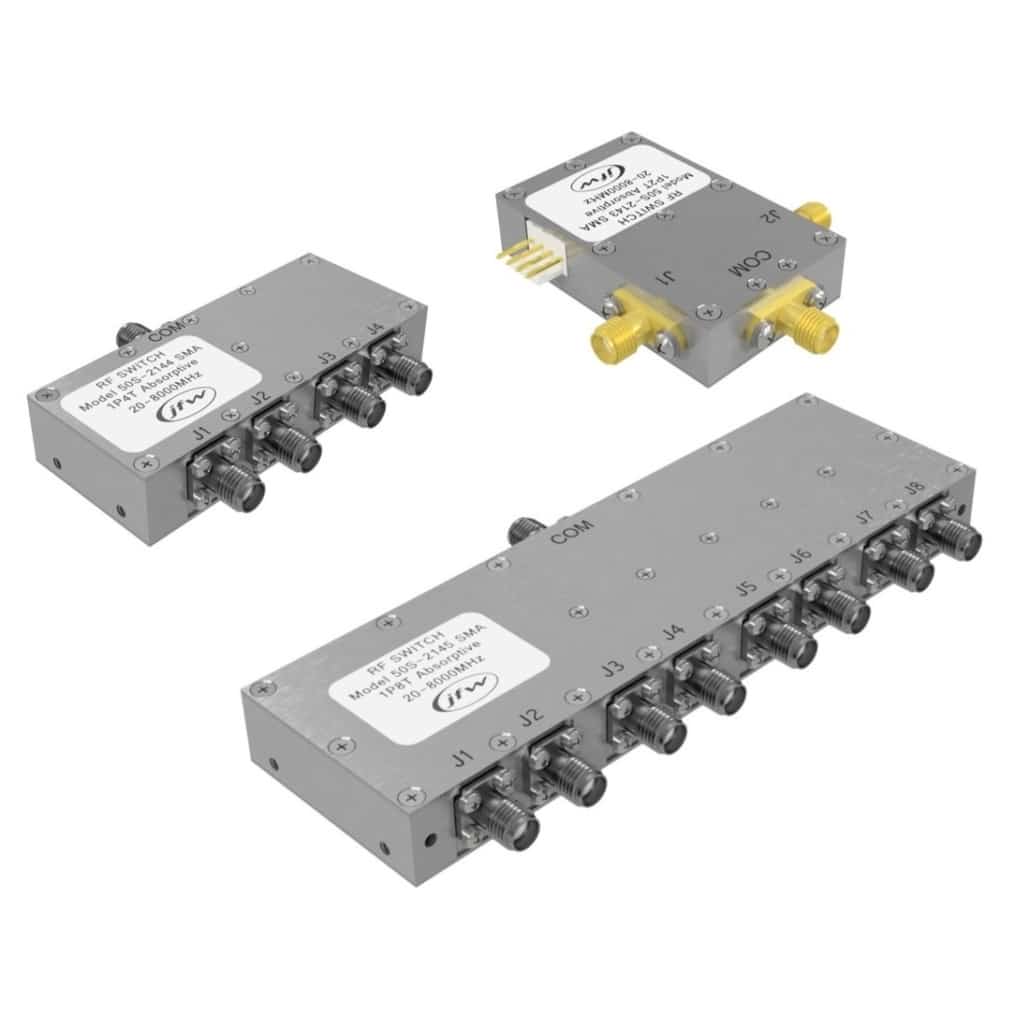

JFW models 50S-2143 SMA, 50S-2144 SMA and 50S-2145 SMA (1P2T, 1P4T, 1P8T, 20-8000MHz)

RF Switches for 5G’s new 8GHz Spectrum Band | 1P2T, 1P4T & 1P8T

/in , /by

JFW has added a new line of 50 Ohm solid-state RF switches that operate 20MHz to 8.4GHz.  These commercially rated models are ideal for constructing low cost RF testbeds for automated testing.  The switches are controlled with TTL control lines.  The switches can hot switch up to +26dBm with typical isolation of 55dB at 8GHz.

RF Switch Features:

  • 20-8400MHz
  • 55dB isolation typical at 8.4GHz
  • +26dBm average (hot switch)
  • TTL control lines
  • 5 microsecond typical switching time
  • SMA female

Model Numbers:

If you would prefer an Ethernet controlled switch assembly, please email your RFQ to our engineering department.  Let us know how many switches you need and the enclosure type (benchtop or rack mount).  If your testbed has multiple switches cabled together, please email us your block diagram.  We typically respond in 1-2 days with ROM pricing.
