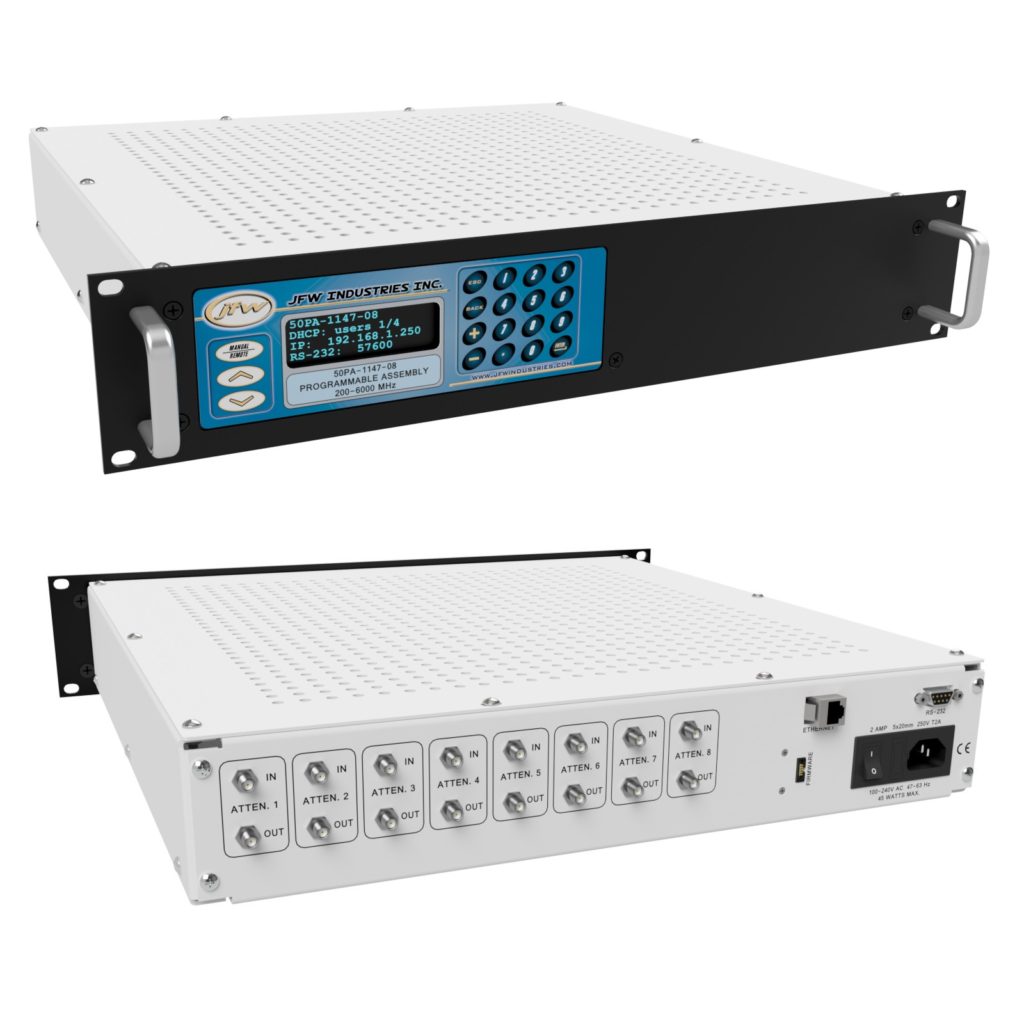

JFW model 50PA-1147-08 SMA eight channel attenuator assembly with Ethernet remote control

Multi-channel Attenuator Assembly w/ 0.5dB steps up to 95.5dB @ 200-6000MHz

/in , /by

Model 50PA-1147-xx has been added to our attenuation control product offerings.  This 50 Ohm attenuator assembly is available with 1 to 8 attenuators.  It covers 200-6000 MHz with 0-95.5dB x 0.5dB step attenuation range.  Remotely controlled via Ethernet or Serial connections.  The attenuators can be controlled individually or in groups.  The RF connectors can be selected as N female or SMA female.  The internal control board can control up to 8 attenuators maximum.  If you purchase a 4 attenuator model, you can have it upgraded at a later time to have additional attenuators.

Example models:

  • 50PA-1147-01 SMA  (1 attenuator with SMA female connectors)
  • 50PA-1147-02 SMA  (2 attenuators with SMA female connectors)
  • 50PA-1147-04 SMA  (4 attenuators with SMA female connectors)
  • 50PA-1147-08 SMA  (8 attenuators with SMA female connectors)
  • 50PA-1147-08 N  (8 attenuators with N female connectors)
