JFW model 50BA-025-62 2.9MM dual channel attenuator with Ethernet/Serial control

Introducing Millimeter Wave Attenuation Systems for 5G Development and Test!

/in /by

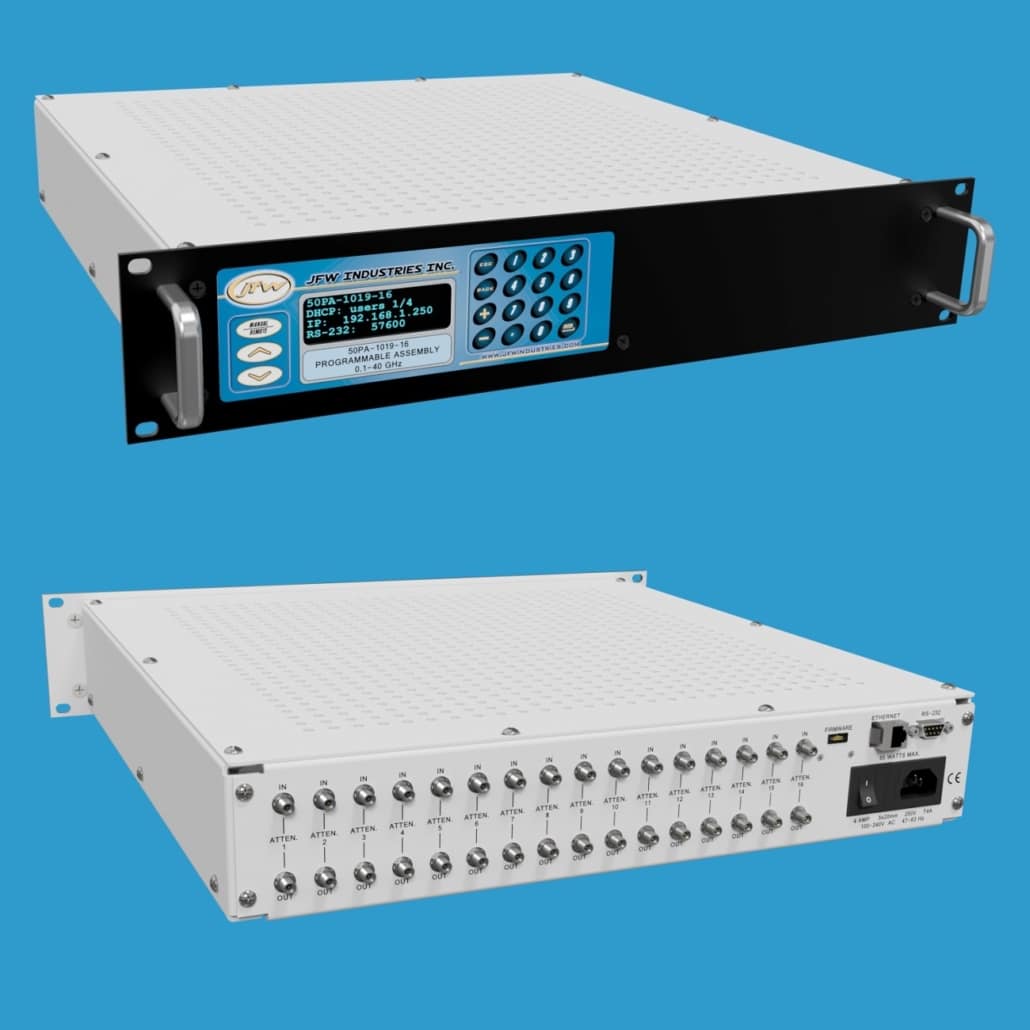

JFW model 50BA-025-62 2.9MM dual channel attenuator with Ethernet/Serial controlJFW model 50PA-1019-16 2.9MM consists up to 16 programmable attenuators with Ethernet controlThese two new series of Ethernet-controlled RF attenuator systems were specifically developed for testing mm-wave and 5G radios in a laboratory environment. An ultra-wide bandwidth of 100 MHz to 40 GHz and attenuation from 0-62dB in 1-dB steps makes both of these systems ideal for receiver sensitivity testing and network emulation of fixed 5G and mobile 5G wireless network components. An easy to use Ethernet/RS-232 interface with front-panel manual control and standard 2.9 MM RF connectors make integration simple as well.

The 50PA-1019-XX 2.9MM is a 19″ Rack-mountable attenuator system available with up to 16 channels of attenuation. While the 50BA-025-62 2.9 MM comes with two attenuators in a bench-top enclosure. Other configurations and attenuation ranges, as well as custom variations are also available.
