Attenuator assembly for up to 8 attenuators with range 0-63dB x 0.5dB steps operating 200-8000MHz

Ethernet Controlled Variable Attenuators covering Wi-Fi 6E Frequency Band

/in , /by

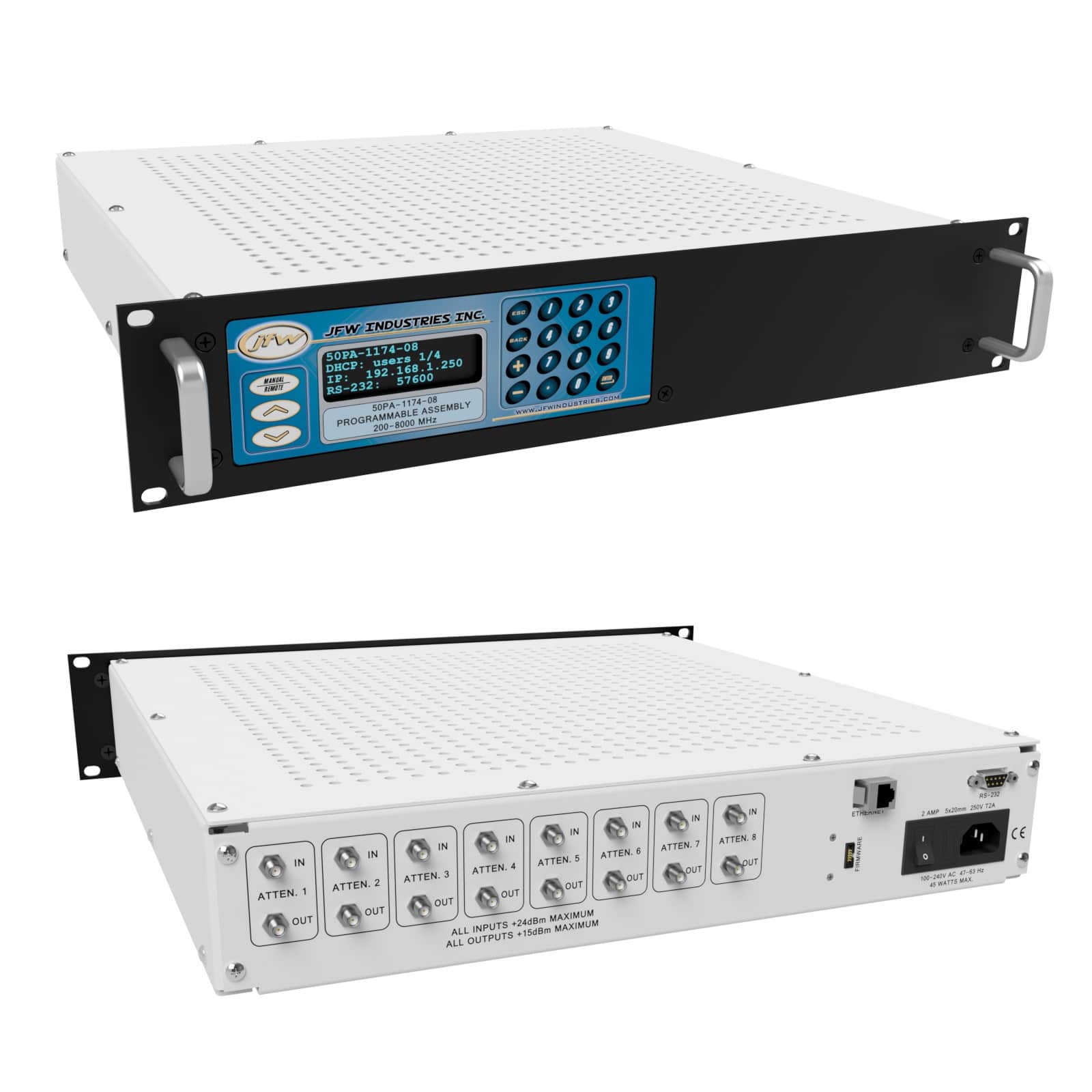

JFW model 50PA-1174-XX is a remotely controlled attenuator assembly containing up to 8 attenuators.  The attenuators have attenuation range 0 to 63dB by 0.5dB steps and operate from 200MHz to 8.4GHz.  The attenuators can be controlled individually or in groups.  This model is available with either 50 Ohm SMA female or N female connectors.

Future Expansion

If your testing needs change, you can have your 50PA-1174-XX upgraded to have additional attenuators added.  This model is designed to control up to a maximum of 8 attenuators.

Example Model Numbers

  • 50PA-1174-01 SMA (1 attenuator with SMA female)
  • 50PA-1174-02 SMA (2 attenuators with SMA female)
  • 50PA-1174-04 SMA (4 attenuators with SMA female)
  • 50PA-1174-08 SMA (8 attenuators with SMA female)
  • 50PA-1174-02 N (2 attenuators with N female)
  • 50PA-1174-04 N (4 attenuators with N female)
  • 50PA-1174-08 N (8 attenuators with N female)
