Assembly with 2 Attenuators 5-2150 MHz | 0-95dB x 1dB | 75BA-004-95

Dual Channel 75-Ohm Step Attenuator Covering 5-2150MHz

/in , /by

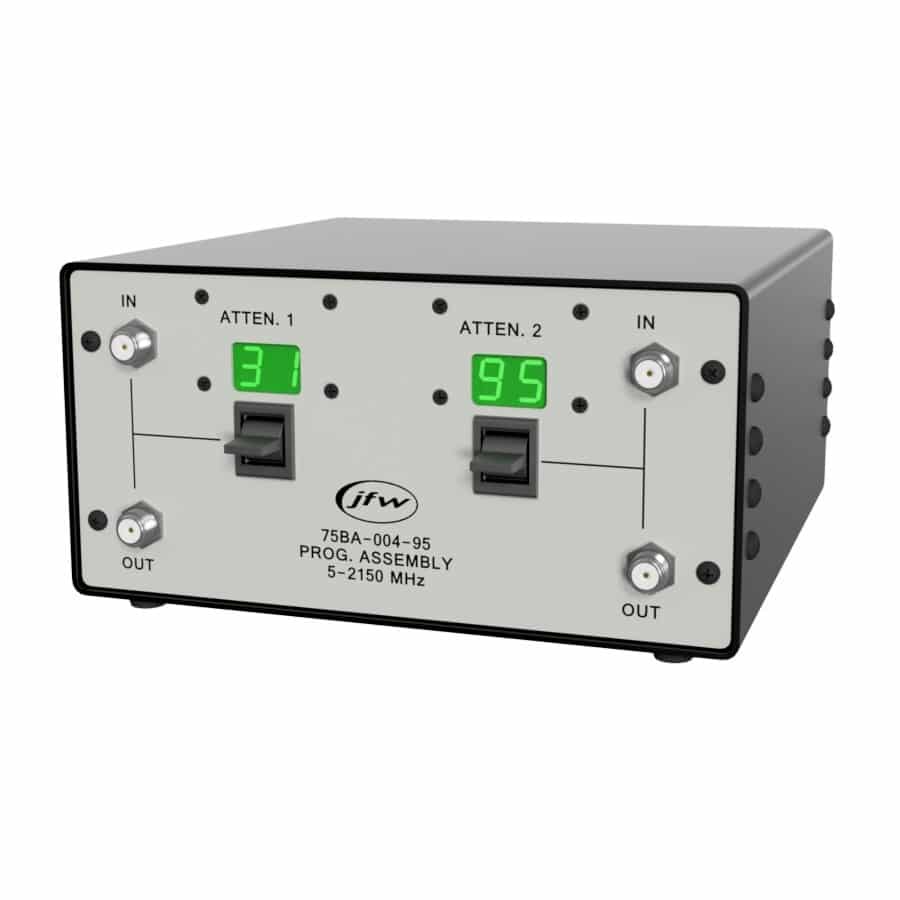

JFW model 75BA-004-95 is a dual channel benchtop attenuator.  The 75 Ohm attenuators have attenuation range 0-95dB x 1dB steps and operate 5-2150MHz.  The attenuators are solid-state design for long lifetime and repeatability.  That makes them perfect for repetitive product testing or lab testing that requires repeatable accuracy.  The attenuator comes in a mini-benchtop enclosure.  The current attenuation for both attenuators is displayed on the front panel.  The attenuators can be controlled manually using the lever switches on the front panel or remotely via an Ethernet or Serial connection.

  • 2 individually controlled attenuators
  • 75 Ohm F female connectors
  • 0-95dB x 1dB steps
  • 5-2150 MHz
  • Current attenuation displayed on front panel
  • Manual control via levers
  • Remote control via Ethernet/Serial connection
  • Benchtop style enclosure
