Bolt Down Termination | 300 Watts | N female

Bolt Down 300 Watt Termination | N or TNC | DC-3 GHz

/in , /by

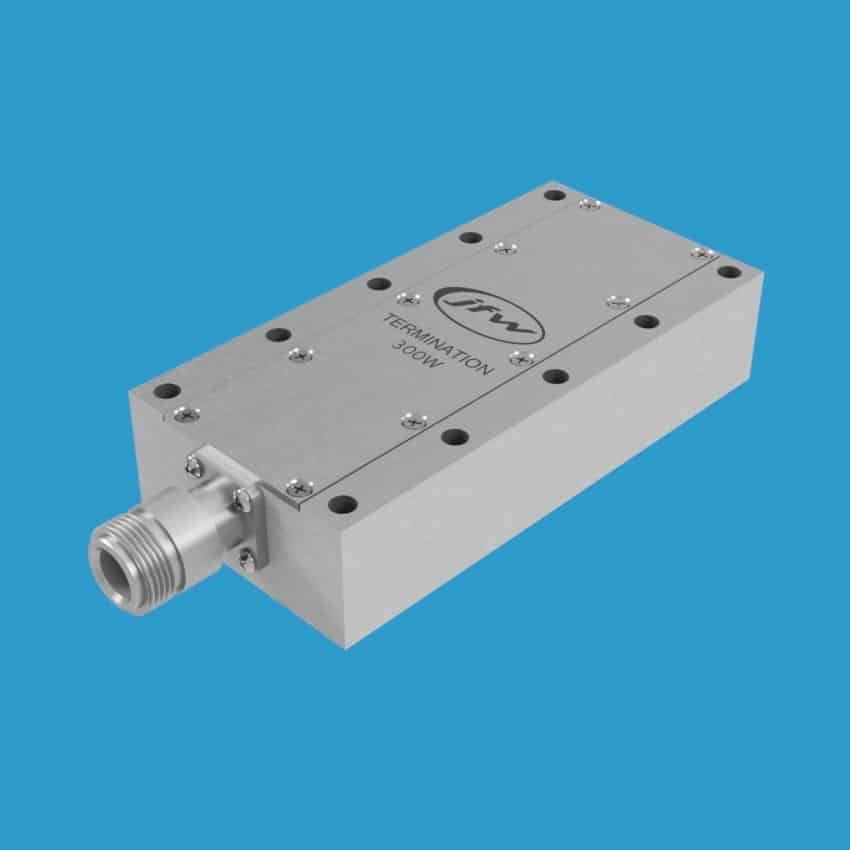

JFW model 50T-751 is a bolt down termination that operates DC-3 GHz.  It is 50 Ohm impedance and is rated for 300 Watts average input power.  It is available with N or TNC connectors (male or female).  The termination has a bolt down style enclosure.  It must be cooled by mounting it to a cooling plate or heat sink.

Documentation

Highlights

  • 50 Ohm termination
  • 300 Watts average
  • DC-3 GHz
  • Bolt down enclosure
  • N or TNC

Bolt Down Termination | 300 Watts | N female
