Assembly with 1-16 Attenuators 5-2150 MHz | 0-63dB x 1dB | 75PA-123-XX

75 Ohm Multi-channel Attenuator Assembly @ 5-2150MHz

/in , /by

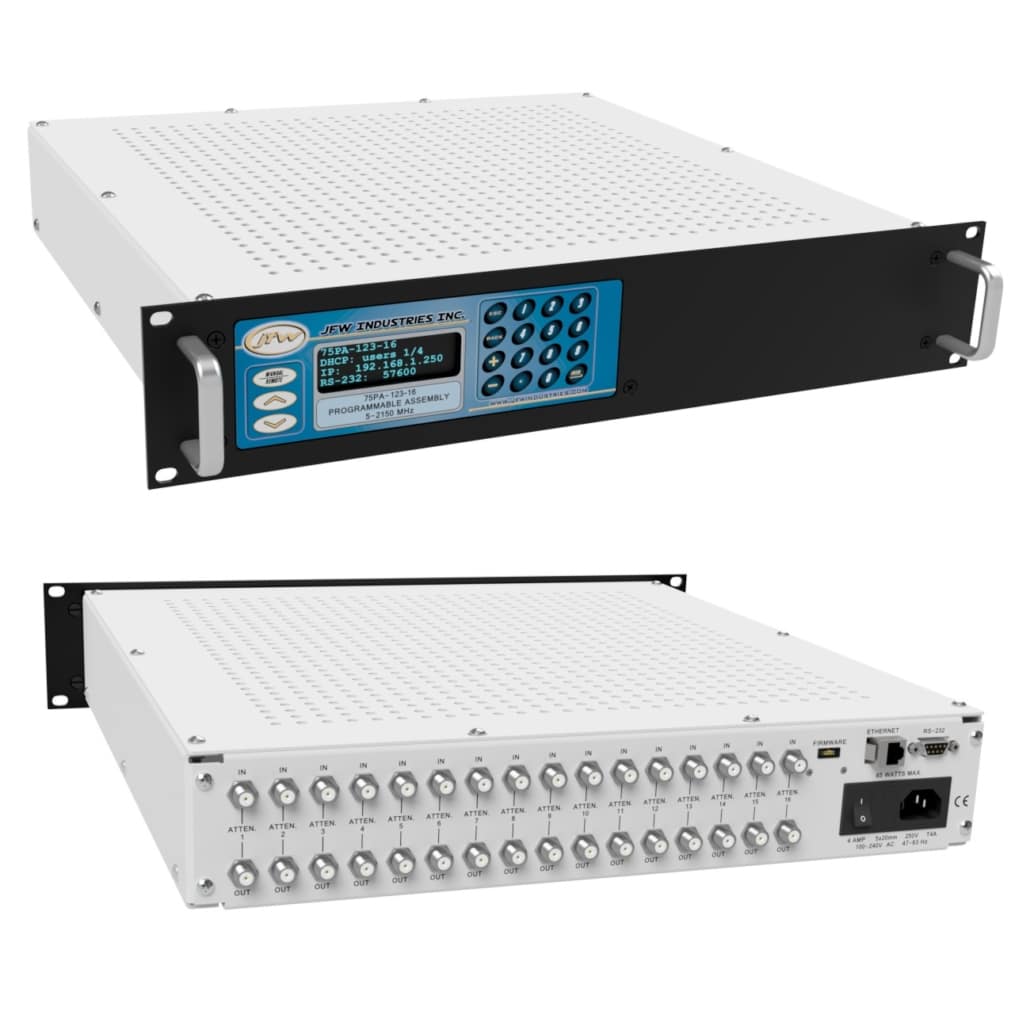

Model 75PA-123-xx is a 75 Ohm attenuator assembly is available with 1 to 16 attenuators.  It covers 5-2150 MHz with 0-63dB x 1dB step attenuation range.  Perfect for RF testing of 75 Ohm cable TV equipment.  It is remotely controlled via Ethernet or Serial connections.  The attenuators can be controlled individually or in groups.  The RF connectors are F female type located on the rear panel.  The internal control board can control up to 16 attenuators maximum for future expansion.  If you purchase a 4 attenuator model, you can have it upgraded at a later time to have additional attenuators.

Documentation:  Data Sheet | Drawing

Available models:

  • 75PA-123-01 F  (1 attenuator model)
  • 75PA-123-02 F  (2 attenuator model)
  • 75PA-123-03 F  (3 attenuator model)
  • 75PA-123-04 F  (4 attenuator model)
  • 75PA-123-05 F  (5 attenuator model)
  • 75PA-123-06 F  (6 attenuator model)
  • 75PA-123-07 F  (7 attenuator model)
  • 75PA-123-08 F  (8 attenuator model)
  • 75PA-123-09 F  (9 attenuator model)
  • 75PA-123-10 F  (10 attenuator model)
  • 75PA-123-11 F  (11 attenuator model)
  • 75PA-123-12 F  (12 attenuator model)
  • 75PA-123-13 F  (13 attenuator model)
  • 75PA-123-14 F  (14 attenuator model)
  • 75PA-123-15 F  (15 attenuator model)
  • 75PA-123-16 F  (16 attenuator model)
