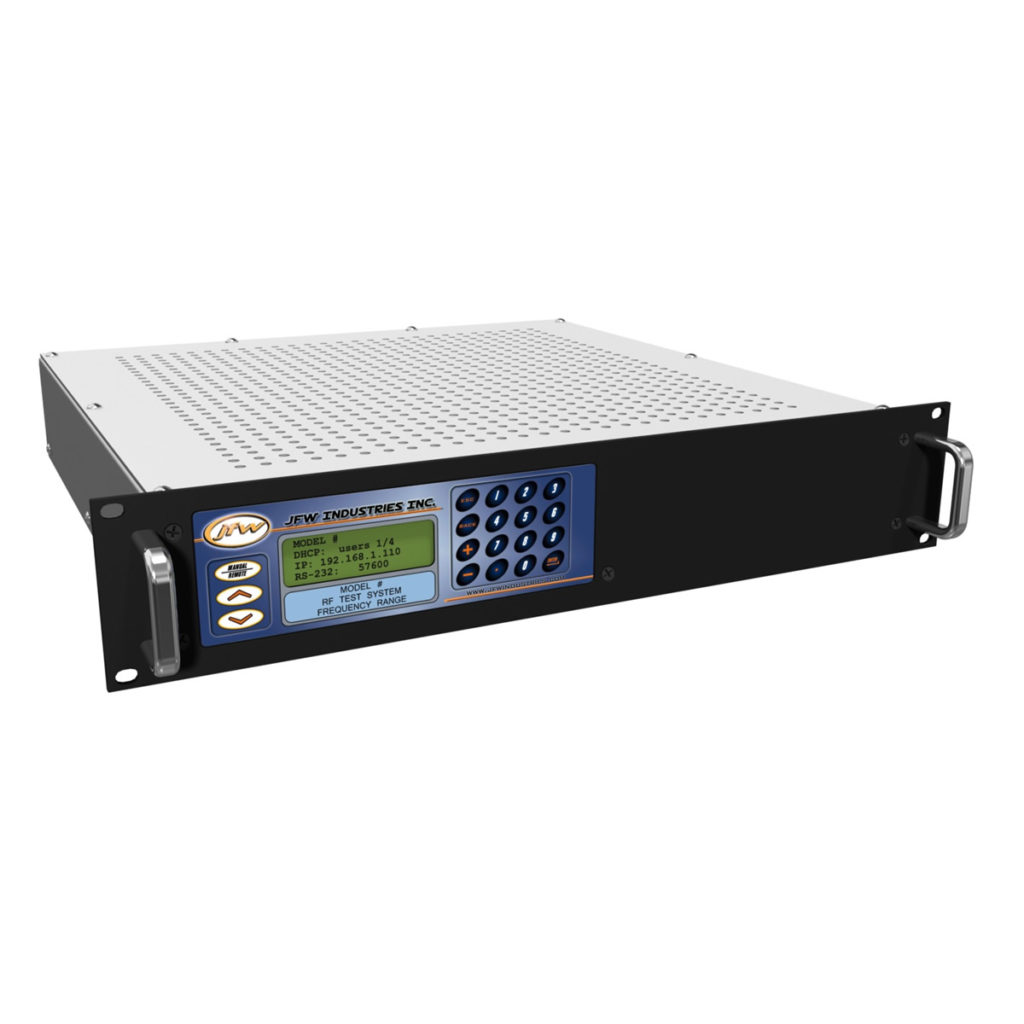

RF Test System with 19 inch Rack Mount Chassis and Ethernet/Serial remote control

75 Ohm Attenuator Assembly with Ethernet Control for DOCSIS & CATV Automated RF Testing

/in , /by

Model 75PA-113-XX is JFW’s latest 75 Ohm attenuator assembly designed for DOCSIS and CATV automated RF testing.  It is an expandable design that can be configured to have up to 16 individually controlled attenuators.  The test system has the following features:

  • Operates 5 MHz to 2150 MHz
  • 0 to 95 dB by 1 dB step attenuators
  • Up to 16 attenuators
  • F or BNC RF connectors
  • Ethernet, Serial, and Manual controls
  • Uses DHCP for easy network setup
  • 19 inch rack mountable chassis
