50 Watt Termination DC-18 GHz | N or SMA

April 1, 2025/in New Products, Terminations/by JFW Eng Dept

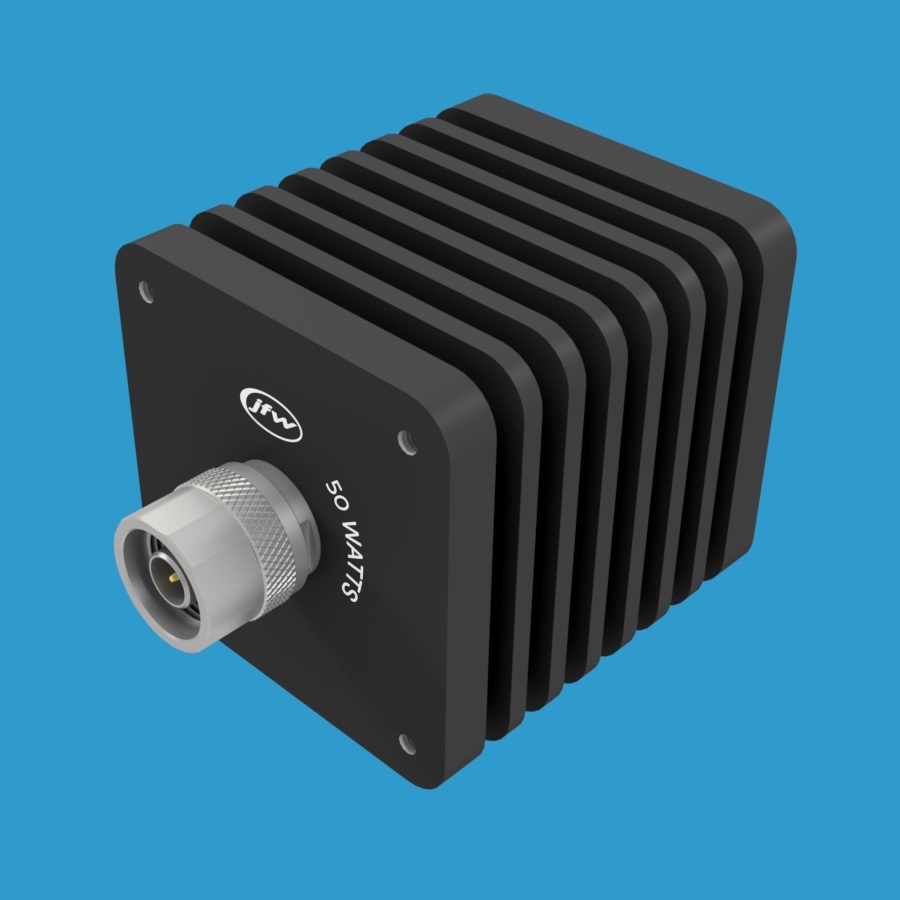

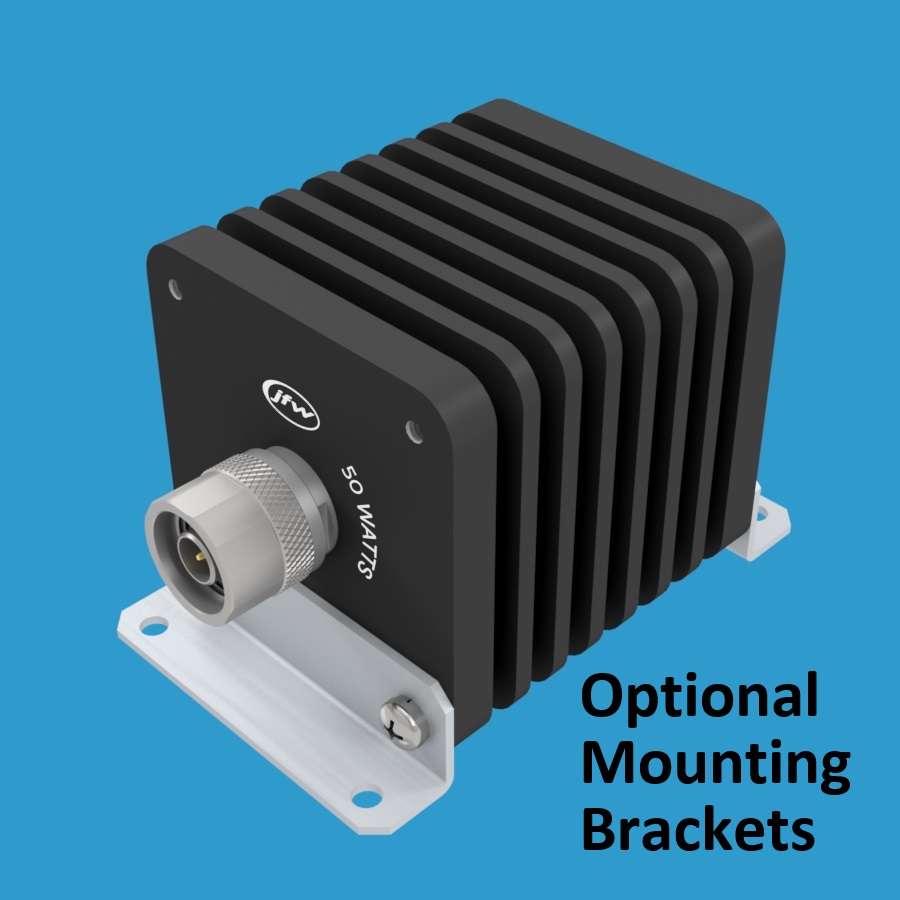

JFW model 50T-712 is a 50 Ohm impedance termination that operates DC-18 GHz. It is rated for 50 Watts average input power. It is available with either N or SMA type connectors. The heatsink is square with mounting holes on each end of the unit for panel mounting. It is also available with optional mounting brackets for floor mounting.

Documentation

Highlights

50 Ohm termination
50 Watts average
DC-18 GHz
N male or female
SMA male or female
