50MS-455 | 4x4 Blocking Matrix Switch

4X4 Blocking Matrix Switch | DC-26.5 GHz

/in , /by

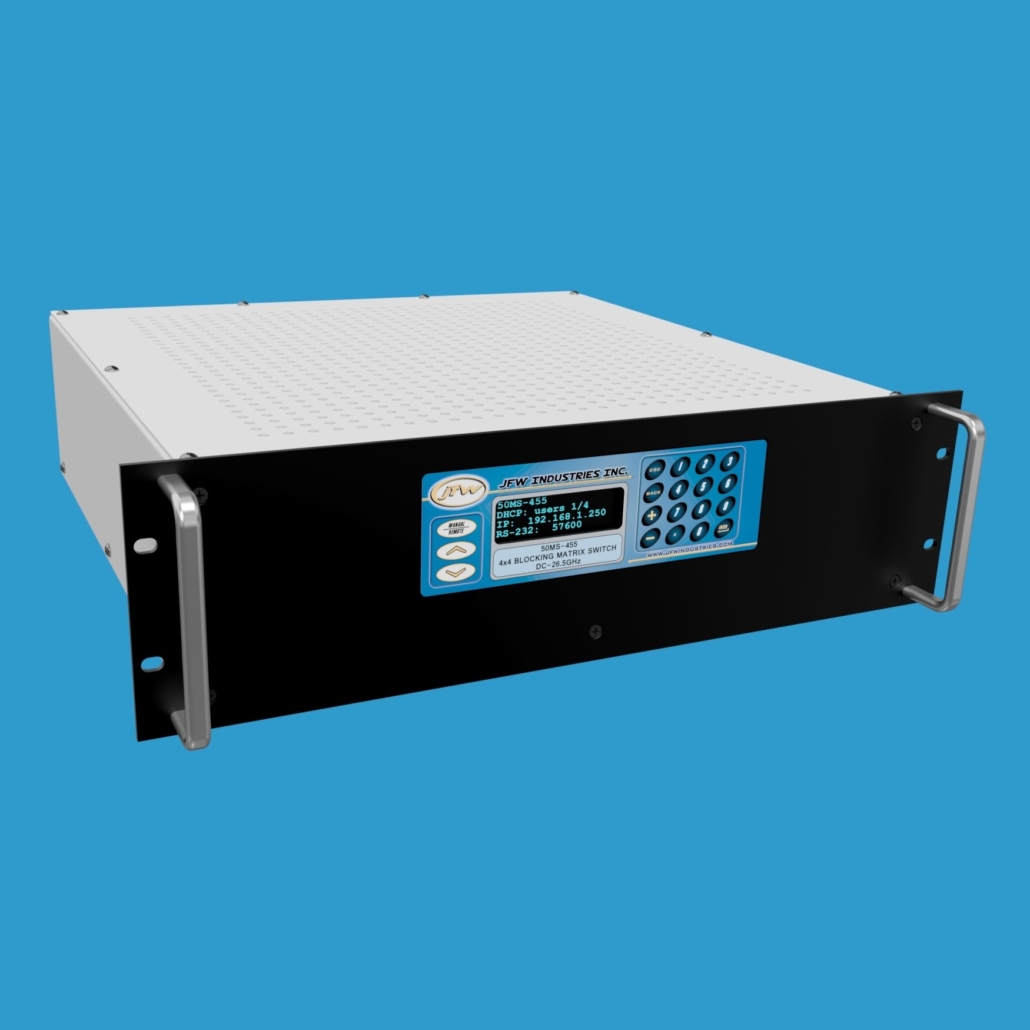

Model 50MS-455 is an 4X4 blocking matrix switch.  All unused ports are absorptive (i.e. self-terminating into 50 Ohm).  It is available with 3.5mm female connectors.  The matrix is constructed using switches on both halves of the matrix.  Each input port can be set to only one output port at a time.  A 4X4 blocking matrix can only have a maximum of 4 active paths.  We label the ports as IN and OUT as a naming convention only.  All ports operate bi-directionally.

Documentation:  Data Sheet | Drawing | Diagram

4X4 Blocking Matrix features:

  • 4 active paths maximum
  • DC-26.5 GHz
  • 3.5mm female
  • 1 Watt average (hot switch)
  • 50 Watts average (cold switch)
  • Ethernet remote control
  • Keypad manual control
  • 19 inch rack mount chassis
