JFW model 50MS-367 50 Ohm 4x4 blocking matrix switch

40GHz Matrix Switch for SATCOM or Wireless 5G Signal Routing

May 1, 2017/in Matrix Switches, New Products/by JFW Eng Dept

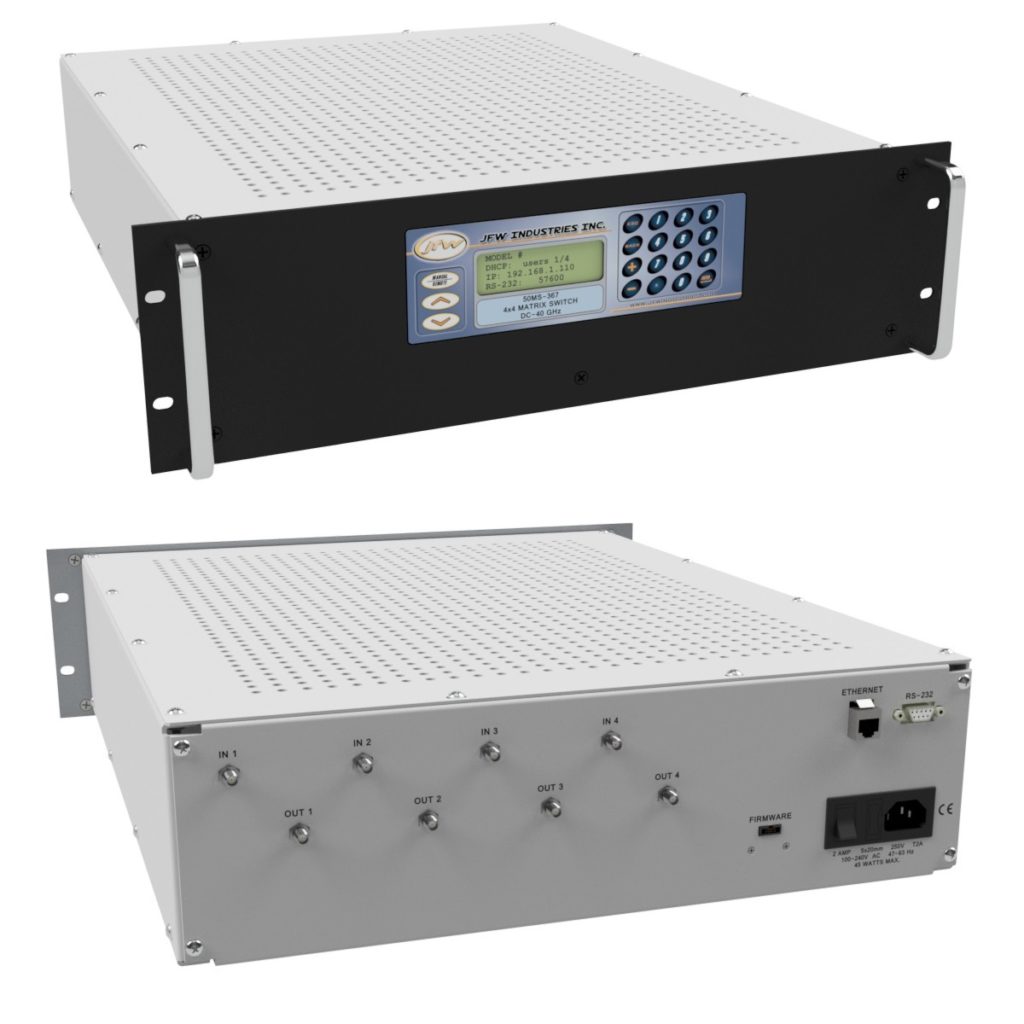

JFW Model #50MS-367 2.9MM is a 4 X 4 blocking matrix switch that operates DC-40 GHz. The RF connectors are 50 Ohm impedance 2.9mm female type located on the rear panel. The unit is remotely controlled via Ethernet or RS-232. This RF matrix switch utilizes our 3.X.X firmware command set for remote control. All unused input ports and unused output ports are self-terminating at 50 Ohms. The current IP settings and serial baud rate are displayed on the front panel display. The IP settings and baud rate can be updated using the keypad.
