50P-2072 2.9MM Programmable Attenuator 40GHz TTL

40 GHz Programmable Attenuator with TTL Control

/in , /by

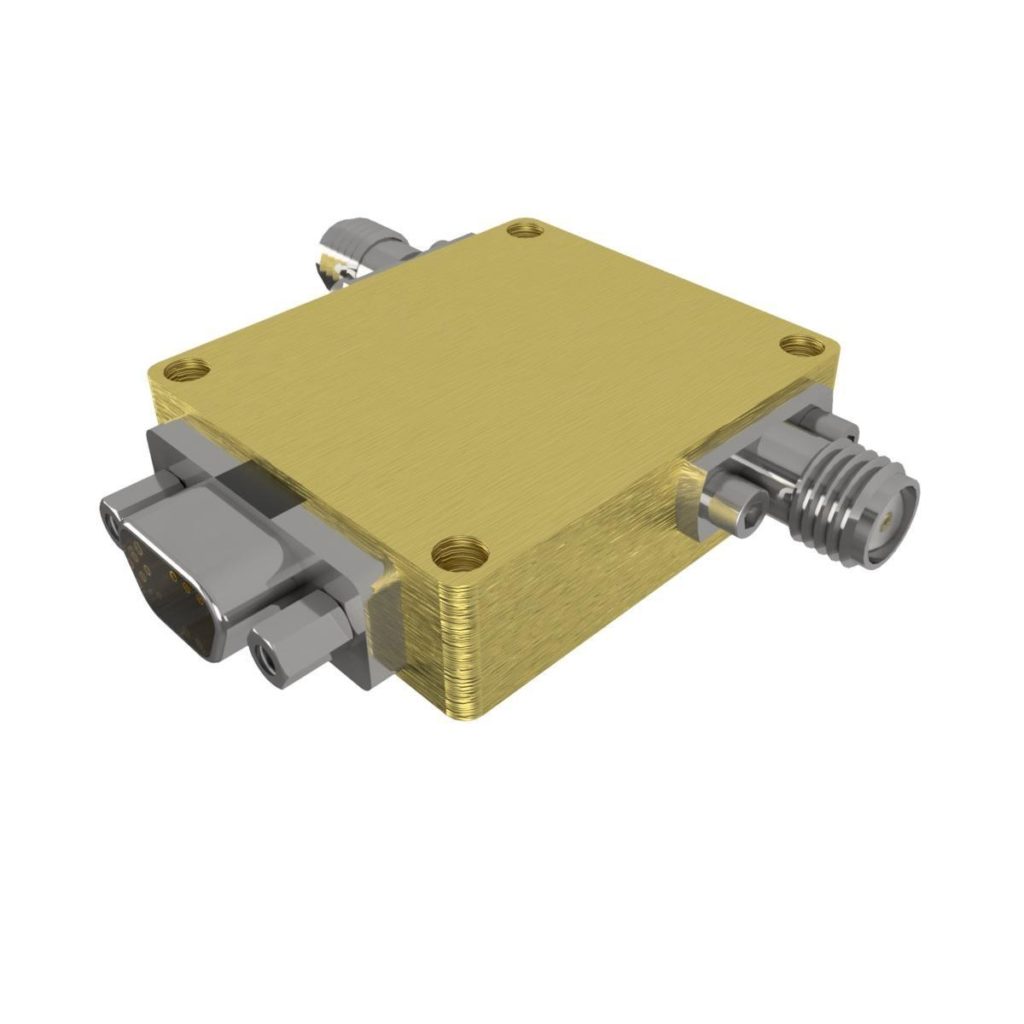

JFW has added model 50P-2072 2.9mm to our line of TTL controlled programmable attenuators.  It operates 100 MHz to 40 GHz with an attenuation range of 0 to 31 dB by 1 dB steps.  It is rated for up to +20 dBm (0.1dB compression at +25 dBm) of RF input power.  The RF connectors are 2.9mm female type.  The attenuator is controlled via 5 TTL control lines.  The outline drawing shows the control pin out and logic table.
