20 Watt Termination DC-18 GHz | N or SMA

March 4, 2025/in New Products, Terminations/by JFW Eng Dept

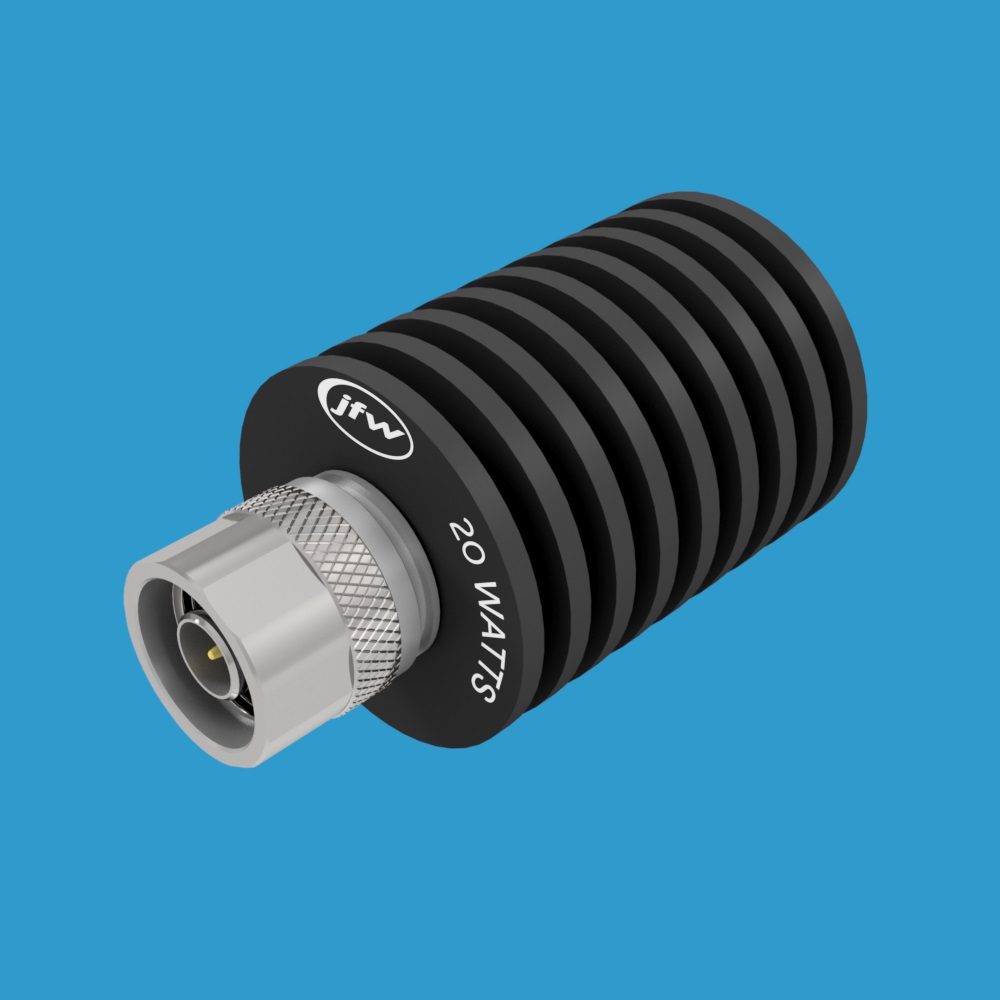

JFW model 50T-707 is a 50 Ohm impedance termination that operates DC-18 GHz. It is rated for 20 Watts average input power. It is available with either N or SMA type connectors. The heatsink is round with a diameter of 1.5 inches.

Documentation

Highlights

50 Ohm termination
20 Watts average
DC-18 GHz
N male or female
SMA male or female
