Manual Attenuator | 0-80dB in 1dB steps | DC-100MHz

/in /by

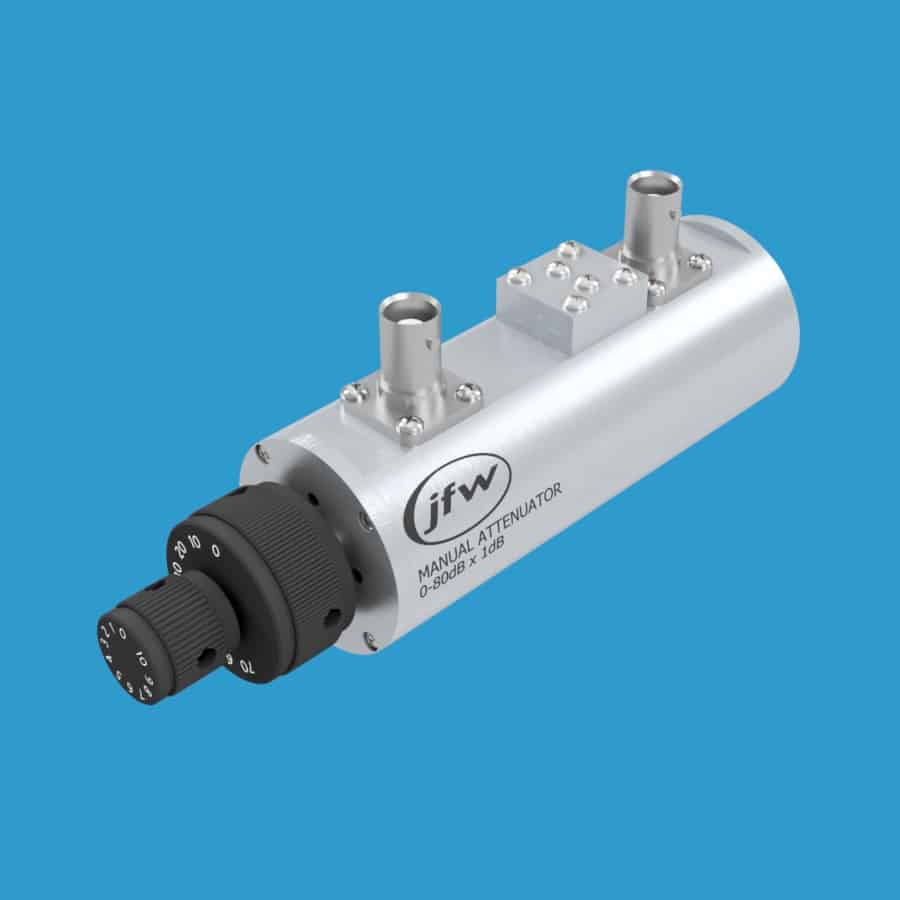

JFW model 50DR-122 is a 50 Ohm manual attenuator.  It has attenuation range 0-80dB x 1dB steps.  It operates DC-100 MHz and is rated for up to 2 Watts average input power.  It has two knobs for adjusting the attenuation (1dB step knob and 10dB step knob).  The total attenuation setting of the unit is the sum of the 1dB knob setting and the 10dB knob setting.  There are 4 threaded mounting holes located on the front plate so that the unit can be panel mounted.

Attenuator Details:

  • DC-100 MHz
  • 0 to 80dB x 1dB steps
  • 1dB step accuracy:  +/- 0.1dB
  • 10dB step accuracy:  +/- 0.2dB
  • 50 Ohm impedance
  • BNC, N or SMA
  • Data Sheet
  • BNC drawing
